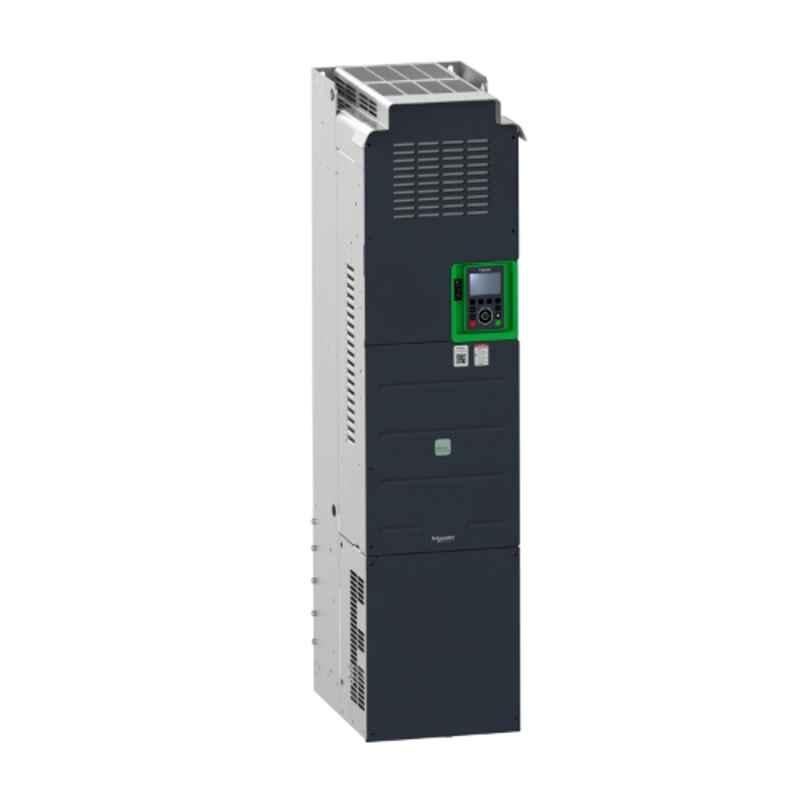

Schneider Electric Altivar Process ATV900 132kW 380-480V Three Phase Variable Speed Drive, ATV930C13N4C

Name: Schneider Electric Altivar Process ATV900 132kW 380-480V Three Phase Variable Speed Drive, ATV930C13N4C
Brand: Schneider Electric
SKU: MSNV5OOZ08G056
Price: 384146 INR
Availability: OutOfStock

₹384,146 (Incl. of all taxes)

₹325,547 ₹58,599 GST

MRP ₹1,340,869 71% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Schneider Electric
Additional Details	Standard Version Without Braking Chopper
Certification and Approval	UL CSA TÜV
Current	Continuous Output: 250 Amp & 211 Amp
Depth	393 mm
Frequency	Network: 50-60 Hz
Height	852 mm
Mounting	Wall Mount
Notes	Images is only for Reference Purpose
Number Of Phase	Three
Part Code	ATV930C13N4C
Power	132 kW & 110 kW
Power (HP)	200 HP & 150 HP
Protection	IP00
Rated Voltage	Supply: 380-480 V
Series	Altivar Process ATV900
Standards	UL 508C EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
Suitable For	Asynchronous Motors Synchronous Motors \|Industrial application
Weight	82 kg
Width	320 mm
Common/Generic Name	Variable Speed Drive

Show All Specifications

Product Details

Schneider Electric Altivar Process ATV900 132kW 380-480V Three Phase Variable Speed Drive, ATV930C13N4C is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Variable Frequency Drives. All Schneider Electric Altivar Process ATV900 132kW 380-480V Three Phase Variable Speed Drive, ATV930C13N4C are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric Altivar Process ATV900 132kW 380-480V Three Phase Variable Speed Drive, ATV930C13N4C, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Variable Frequency Drives .
