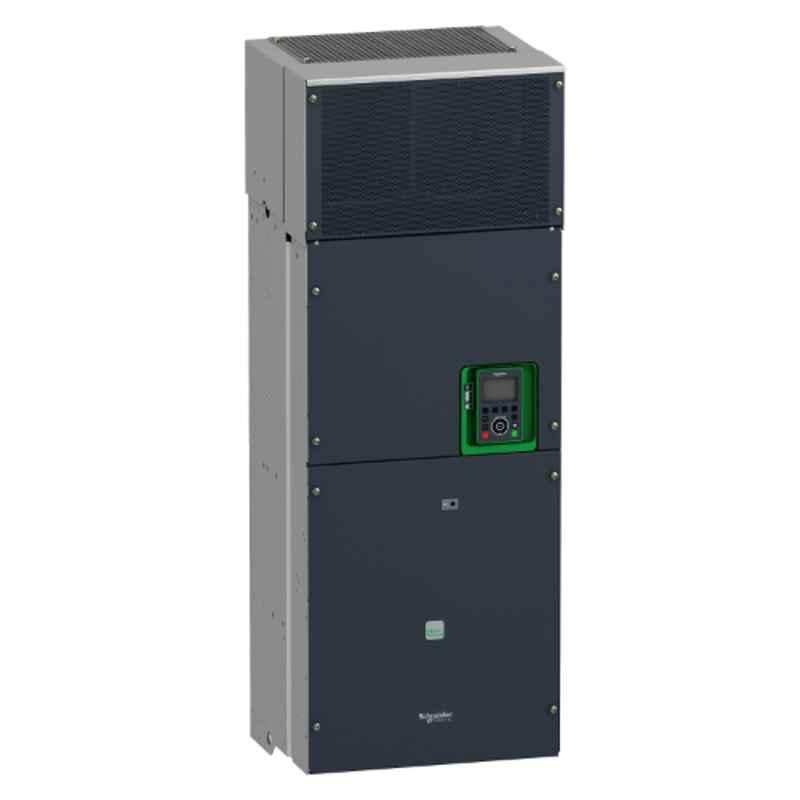

Variable Speed / Frequency Drive (Vsd / Vfd) is Specifically Designed for Industrial Processes.
Brand | |
Additional Details | Standard Version Without Braking Chopper |
Certification and Approval | UL CSA TÜV |
Communication port protocol | Ethernet IP/Modbus TCP & Modbus Serial |
Current | Continuous Output: 302 Amp & 427 Amp |
Depth | 380 mm |
Frequency | Network: 50-60 Hz |
Height | 1195 mm |
Mounting | Wall Mount |
Notes | Images is only for Reference Purpose |
Number Of Phase | Three |
Part Code | ATV930C22N4C |
Power | 220 kW & 160 kW |
Power (HP) | 350 HP & 250 HP |
Protection | IP00 |
Rated Voltage | Supply: 380-480 V |
Series | Altivar Process ATV900 |
Standards | UL 508C EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
Suitable For | Asynchronous Motors Synchronous Motors |Industrial application |
Weight | 172 kg |
Width | 440 mm |
Common/Generic Name | Variable Speed Drive |
Schneider Electric Altivar Process ATV900 220kW 380-480V Three Phase Variable Speed Drive, ATV930C22N4C is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Variable Frequency Drives. All Schneider Electric Altivar Process ATV900 220kW 380-480V Three Phase Variable Speed Drive, ATV930C22N4C are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric Altivar Process ATV900 220kW 380-480V Three Phase Variable Speed Drive, ATV930C22N4C, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Variable Frequency Drives .
