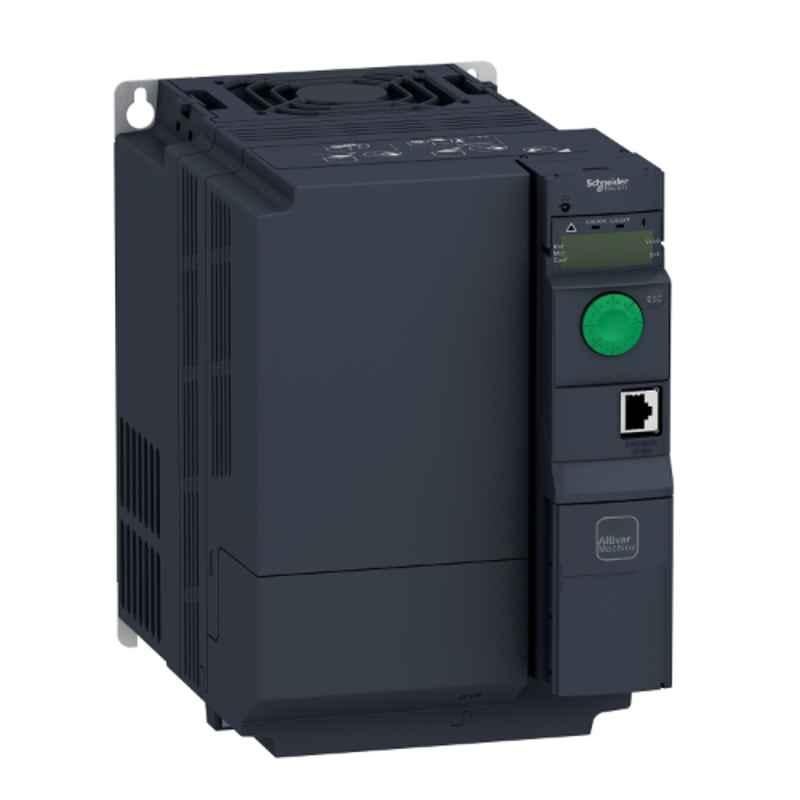

Schneider Electric Altivar Machine ATV320 5.5kW 380-500V 14.3A 3 Phase Book Variable Speed Drive, ATV320U55N4B

Name: Schneider Electric Altivar Machine ATV320 5.5kW 380-500V 14.3A 3 Phase Book Variable Speed Drive, ATV320U55N4B
Brand: Schneider Electric
SKU: MSN2KM1Y7RJX9V
Price: 42501 INR
Availability: OutOfStock

₹42,501 (Incl. of all taxes)

₹36,016 ₹6,485 GST

MRP ₹95,490 55% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Incorporates Functions Suitable For The Most Common Applications, Including Torque And Speed Accuracy At Very Low Speed, High Dynamic Performance With Flux Vector Control Without Sensor And Extended Frequency Range For High-Speed Motors.
It Also Incorporates Parallel Connection Of Motors And Special Drives Using The Voltage/Frequency Ratio And Static Speed Accuracy And Energy Saving For Open-Loop Synchronous Motors.

Product Specifications

Brand	Schneider Electric
Additional Details	Standard Version Class C2 EMC Filter Integrated
Certification	CE ATEX NOM GOST EAC RCM KC
Current	Nominal Output: 14.3 Amp
Depth	232 mm
Format	Drive: Book
Height	308 mm
Item Code	ATV320U55N4B
Mounting	Cabinet Mount
Number of Phases	Three
Power	5.5 kW
Protection	IP20
Rated Voltage	Support: 380-500 V
Series	Altivar Machine ATV320
Standards	EN/IEC 61800-5-1
Suitable For	Complex Machines
Weight	4.4 kg
Width	150 mm
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Common/Generic Name	variable speed drive
Dimensions LxWxH	9.5x8.5x14 cm
Weight	1 kg

Show All Specifications

Product Details

The Schneider Electric Altivar Machine ATV320 5.5kW variable speed drive offers precise torque and speed control at very low speeds, delivering high dynamic performance with sensorless flux vector control. Designed for 3-phase systems (380-500V, 14.3A), this IP20-protected drive supports parallel motor connections and specialized drives using voltage/frequency ratios. Featuring a Class C2 EMC filter and compliance with EN/IEC 61800-5-1 standards, it ensures reliable operation and energy efficiency for open-loop synchronous motors. Compact yet robust (150mm wide, 308mm high, 4.4kg), it suits diverse industrial applications with superior speed accuracy and dynamic control.
