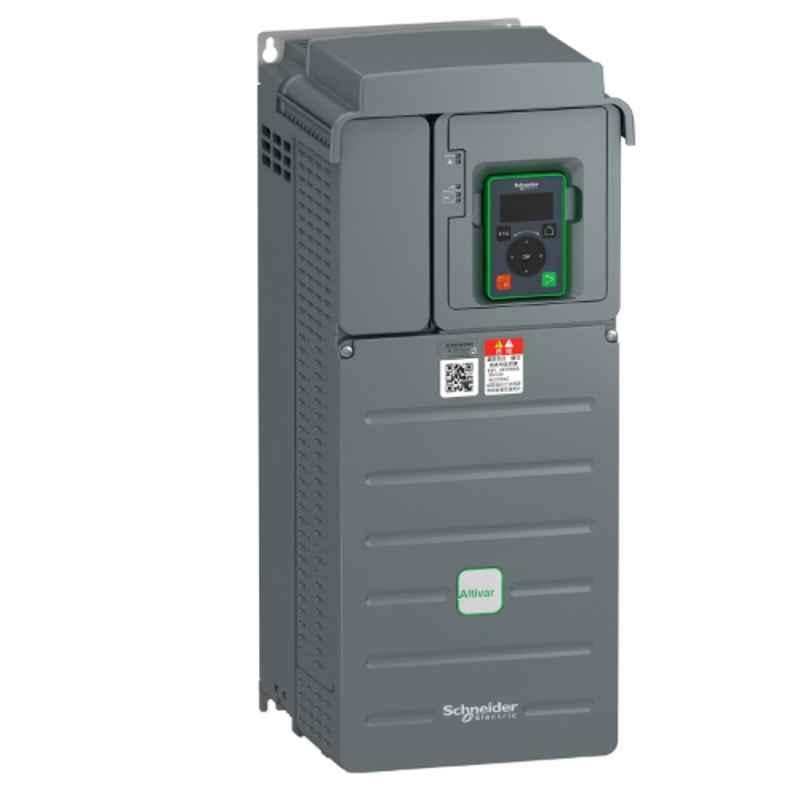

Schneider Electric Easy Altivar 610 22kW 380-460V 22kA Three Phase Variable Speed Drive, ATV610D22N4

Name: Schneider Electric Easy Altivar 610 22kW 380-460V 22kA Three Phase Variable Speed Drive, ATV610D22N4
Brand: Schneider Electric
SKU: MSNE9J8Z7JVR9D
Price: 88340 INR
Availability: OutOfStock

₹88,340 (Incl. of all taxes)

₹74,868 ₹13,472 GST

MRP ₹187,451 52% OFF

AVAILABLE ON REQUEST

Power

22 kW & 18.5 kW
30 kW & 22 kW
37 kW & 30 kW
55 kW & 45 kW
75 kW & 55 kW

About This Product

Key Features

Offers A Plug & Play Solution, Whereby Parameters Are Preset In the Factory To the Desired Configuration, To Help Save Process Control & Operating Time.

Product Specifications

Brand	Schneider Electric
Additional Details	Standard Version Integrated Conforming To En/Iec 61800-3 Category C3 with 50 m
Communication port protocol	Modbus Serial
Current	Prospective line ISC: 22 kA
Depth	232 mm
Frequency	Supply: 50-60 Hz
Height	495 mm
Item Code	ATV610D22N4
Mounting	Cabinet Mount
Notes	Images is only for Reference Purpose
Number Of Phase	Three
Power	22 kW & 18.5 kW
Power (HP)	30 HP & 25 HP
Protection	IP20
Rated Voltage	Support: 380-460 V
Series	Easy Altivar 610
Standards	EN/IEC 61800-3 Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 60721-3
Suitable For	Fan, Pump, Compressor & Conveyor Asynchronous Motors
Weight	13.5 kg
Width	211 mm
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Common/Generic Name	Variable Speed Drive
Dimensions LxWxH	9.5x8.5x14 cm
Weight	1 kg

Show All Specifications

Product Details

The Schneider Electric Easy Altivar 610 22kW 380-460V three-phase variable speed drive (ATV610D22N4) delivers reliable performance with a robust IP20 protection and compact dimensions of 211 mm width and 495 mm height. Supporting 22kA short-circuit current and equipped with a Modbus Serial communication port, it ensures seamless integration and efficient control. Factory-preset parameters enable quick plug-and-play setup, streamlining process control and reducing operating time. Weighing 13.5 kg and compliant with En/IEC 61800-3 Category C3 standards, this standard version drive supports up to 30 HP, making it an ideal choice for versatile industrial applications.
