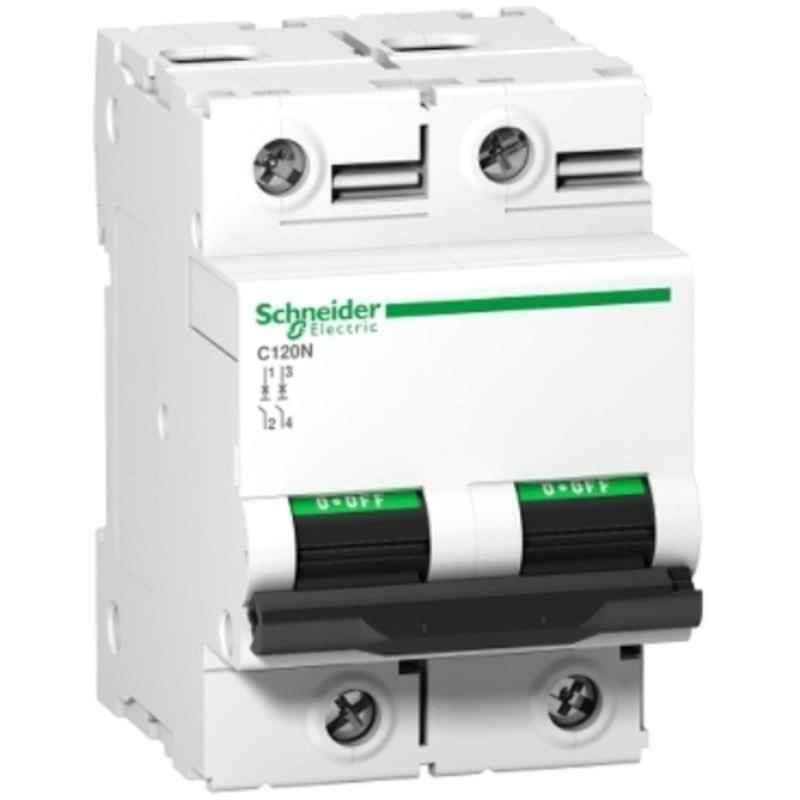

Schneider Electric Acti9 C120N 100A C-Curve Double Pole MCB, A9N18362, Breaking Capacity: 10 kA, (Pack of 2)

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Positive Contact Indication for Assurance of Disconnection.
Terminal Connections: Flexible Cables: Up to 35 Sqmm & Rigid Cable: Up to 50 Sqmm.

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	100 Amp
Curve Type	C
Number of Poles	Double Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N18362
Number of Modules	3
Protection Class	IP20
Rated Voltage	380-415 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 3.5 Nm Pollution Degree: 3
Ambient Temperature	Operating: -25 to 70 deg C Storage: -40 to 85 deg C
Certification	EAC
Model	C120N
Mounting type	Clip-on (DIN Rail)
Notes	Images are for reference purpose only
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Weight	0.41 kg
Country of origin	India
Manufacturer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Packer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Common/Generic Name	MCB
Dimensions LxWxH	8.6x8.1x7.5 cm
Weight	0.58 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 C120N 100A C-Curve Double Pole MCB (A9N18362) delivers reliable circuit protection with a robust breaking capacity of 10 kA. Designed for 100 Amp AC circuits, this double pole MCB features positive contact indication ensuring clear disconnection status. With a compact 3-module design and clip-on DIN rail mounting, it supports flexible cables up to 35 sqmm and rigid cables up to 50 sqmm for versatile installation. Weighing just 0.41 kg, this pack of two MCBs combines durability and efficiency, ideal for safeguarding your electrical systems with trusted Schneider Electric quality.
