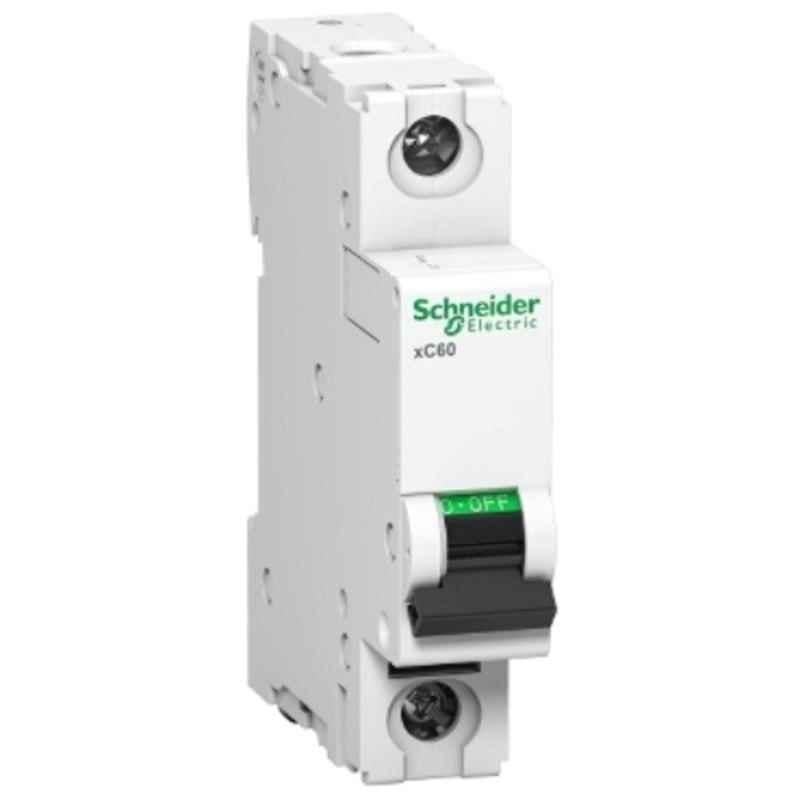

Schneider Electric Acti9 XC60 10A C-Curve Single Pole MCB, A9N1P10C, Breaking Capacity: 10 kA, (Pack of 20)

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Higher System Performance with Optimized Cost.
Field-Fit table Auxiliaries for Advance Protection & Monitoring.
Positive Contact Indication for Assurance of Disconnection.

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	10 Amp
Curve Type	C
Number of Poles	Single Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N1P10C
Number of Modules	1
Protection Class	IP20
Rated Voltage	220-240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 2 Nm
Ambient Temperature	Operating: -30 to 70 deg C Storage: -40 to 85 deg C
Customer Care Number	1800 103 0011
Model	XC60
Mounting type	Clip-on (DIN Rail)
Notes	Images are for reference purpose only
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Weight	0.115 kg
Country of origin	India
Manufacturer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Packer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Common/Generic Name	MCB
Dimensions LxWxH	9.5x8.5x14 cm
Weight	0.117 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 XC60 10A C-Curve Single Pole MCB (A9N1P10C) delivers reliable circuit protection with a breaking capacity of 10 kA, ideal for residential and commercial electrical systems. This compact 1-module unit supports a 10 Amp current rating and features a clip-on DIN rail mounting for easy installation. Designed for higher system performance at an optimized cost, it includes positive contact indication to ensure assured disconnection. Perfectly suited for AC applications, this pack of 20 MCBs offers advanced protection and monitoring with field-fit table auxiliaries, enhancing safety and efficiency.
