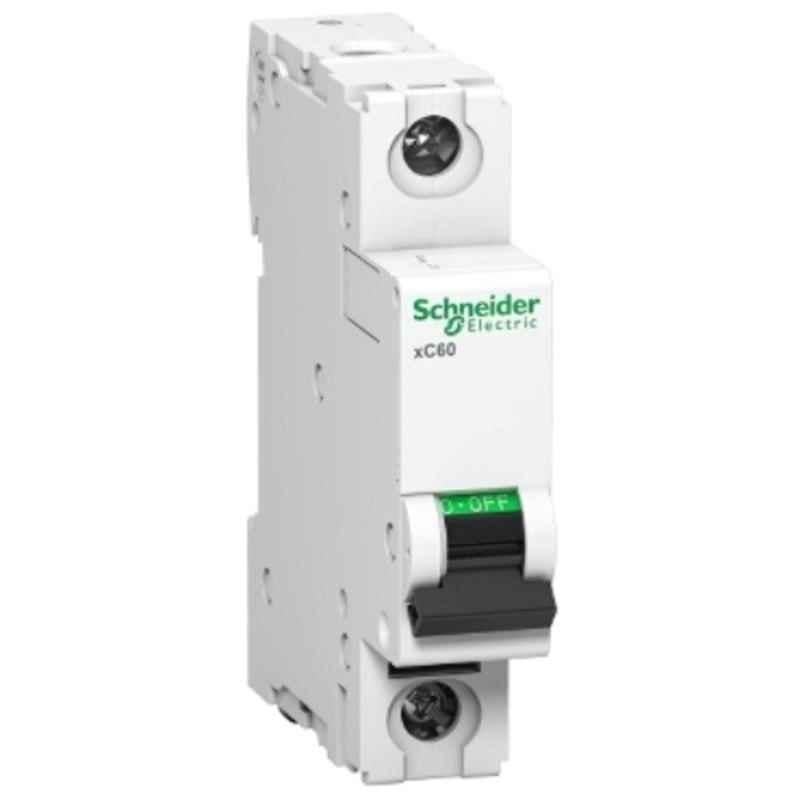

Schneider Electric Acti9 xC60 16A B-Curve Single Pole MCB, A9N1P16B, Breaking Capacity: 10 kA, (Pack of 20)

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Higher Installation Life: Energy Limitation Class 3 & Fast Closure Mechanism.
Ease, Speed & Flexibility of Installation: Biconnect, Line-Load Reversible.
Field: Fit table Auxiliaries for Advance Protection & Monitoring.
Positive Contact Indication for Assurance of Disconnection.
Can be Used for DC Application Upto 60 V per Pole.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	16 Amp
Curve Type	B
Number of Poles	Single Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N1P16B
Number of Modules	1
Protection Class	IP20
Rated Voltage	220-240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 2 Nm
Ambient Temperature	Operating: -30 to 70 deg C Storage: -40 to 85 deg C
Model	xC60
Mounting type	Clip-on (DIN Rail)
Notes	Images are for reference purpose only
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Weight	0.115 kg
Country of origin	India
Manufacturer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Packer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Common/Generic Name	MCB
Dimensions LxWxH	9.5x8.5x14 cm
Weight	0.117 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 xC60 16A B-Curve Single Pole MCB (A9N1P16B) is engineered for reliable circuit protection with a breaking capacity of 10 kA. Designed for easy clip-on DIN rail mounting, this 16 Amp MCB supports AC applications and ensures safety with positive contact indication for assured disconnection. Featuring Energy Limitation Class 3 and a fast closure mechanism, it offers extended installation life. Its reversible line-load and Biconnect technology provide flexibility, while compatibility with up to 60 V DC per pole and field-fit auxiliaries allows advanced protection and monitoring. This pack of 20 combines efficiency with durability for versatile electrical setups.
