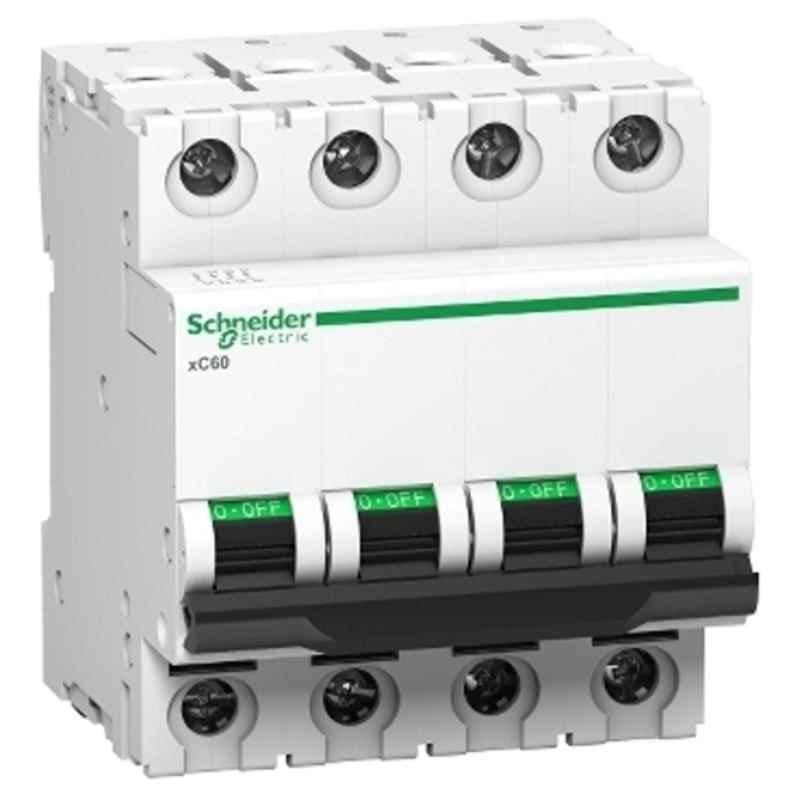

Schneider Electric Acti9 xC60 32A C-Curve Four Pole MCB, A9N4P32C, Breaking Capacity: 10kA, (Pack of 10)

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism.
Ease, Speed & Flexibility of Installation - Biconnect, Line-Load Reversible.
Field-Fittable Auxiliaries for Advance Protection & Monitoring.
Positive Contact Indication for Assurance of Disconnection.
Can be Used for DC Application Upto 60V per Pole.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	32 Amp
Curve Type	C
Number of Poles	Four Pole
Frequency	50/60 Hz
Item Code	A9N4P32C
Number of Modules	4
Protection Class	IP20
Rated Voltage	240 V AC
Ambient Temperature	Operating: -30 to 70 deg C Storage: -40 to 85 deg C
Customer Care Number	1800 103 0011
Model	xC60
Notes	Images are for reference purpose only
Operating Temperature	-30 to 70 deg C
Series	Acti9
Standards	IEC 60898 & IS/IEC 60898-1
Weight	0.415 kg
Country of origin	India
Manufacturer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Packer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Common/Generic Name	MCB
Dimensions LxWxH	5x5x5 cm
Weight	0.7 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 xC60 32A C-Curve Four Pole MCB (A9N4P32C) delivers reliable circuit protection with a breaking capacity of 10kA, ideal for demanding electrical environments. Designed for versatility, it supports both AC (50/60 Hz) and DC applications up to 60V per pole. Its fast closure mechanism and Energy Limitation Class 3 enhance installation life, while the Biconnect design ensures ease, speed, and flexibility during setup. Weighing 0.415 kg and equipped with positive contact indication, this four-module MCB guarantees safe disconnection and advanced monitoring options through field-fittable auxiliaries, making it a trusted choice for professional installations.
