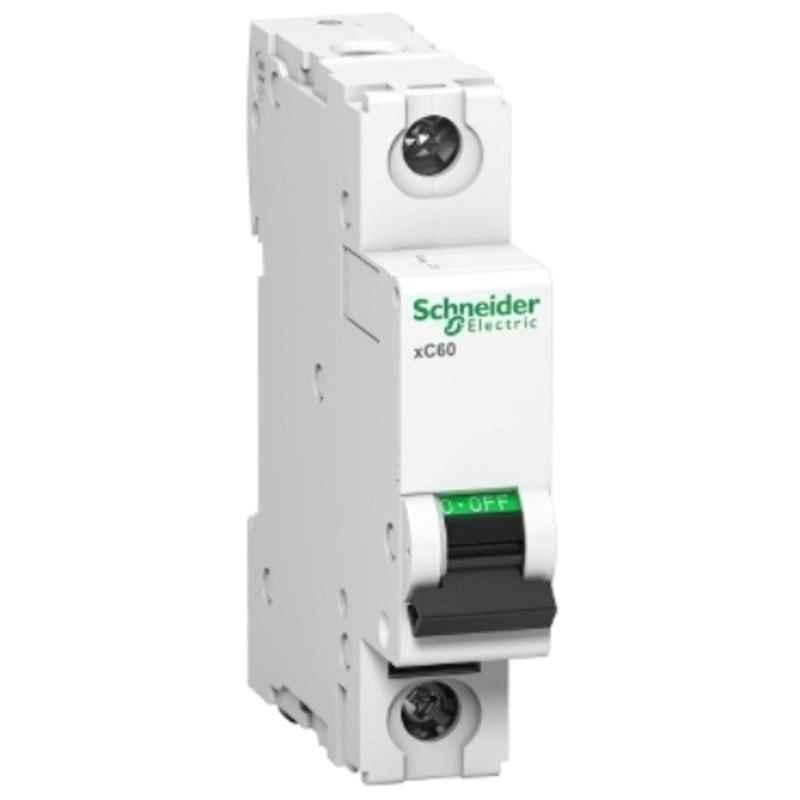

Schneider Electric Acti9 xC60 32A C-Curve Single Pole MCB, A9N1P32C, Breaking Capacity: 10 kA, (Pack of 5)

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism.
Ease, Speed & Flexibility of Installation - Biconnect, Line-Load Reversible.
Field-Fit table Auxiliaries for Advance Protection & Monitoring.
Positive Contact Indication for Assurance of Disconnection.
Can be Used for DC Application Upto 60V per Pole.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	32 Amp
Curve Type	C
Number of Poles	Single Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N1P32C
Protection Class	IP20
Rated Voltage	220-240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 2 Nm
Ambient Temperature	Operating: -30 to 70 deg C Storage: -40 to 85 deg C
Model	xC60
Mounting type	Clip-on (DIN Rail)
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Country of origin	India
Manufacturer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Packer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Common/Generic Name	MCB
Dimensions LxWxH	9.5x8.5x14 cm
Weight	0.117 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 xC60 32A C-Curve Single Pole MCB (A9N1P32C) offers reliable circuit protection with a breaking capacity of 10 kA, ensuring safety in demanding electrical environments. Designed for AC applications at 50/60 Hz, this MCB features a clip-on DIN rail mounting for quick installation. With a 32 Amp current rating, 500 VAC insulation voltage, and 6 kV impulse withstand, it delivers robust performance. Its Energy Limitation Class 3 and fast closure mechanism extend installation life, while positive contact indication guarantees disconnection assurance. Line-load reversible and field-fit auxiliaries enhance flexibility for advanced protection and monitoring.
