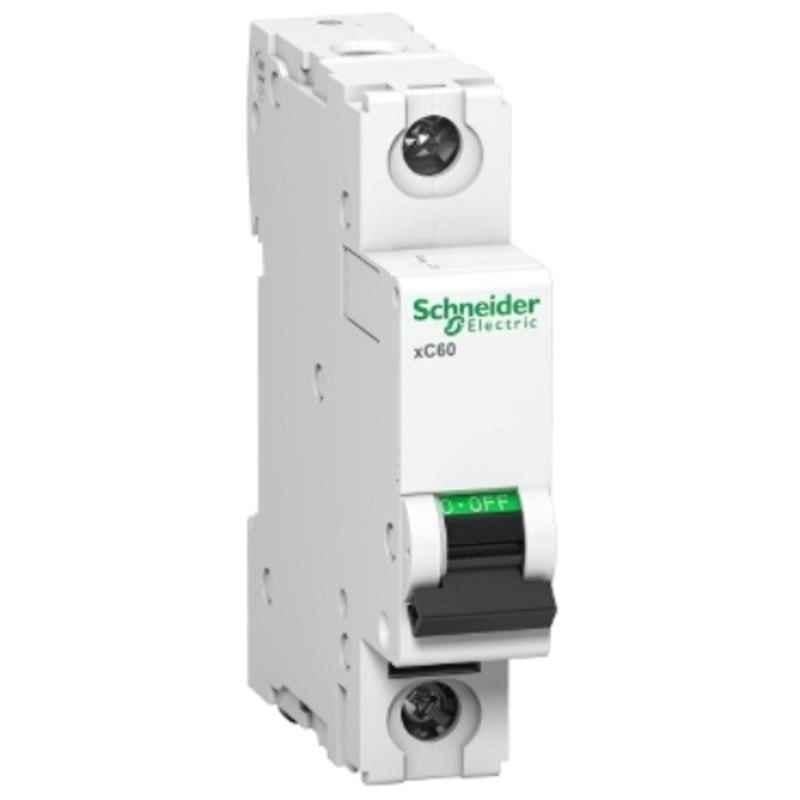

Schneider Electric Acti9 xC60 6A B-Curve Single Pole MCB, A9N1P06B, Breaking Capacity: 10 kA, (Pack of 10)

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Higher System Performance with Optimized Cost: Cascading.
Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism.
Ease, Speed & Flexibility of Installation Biconnect, Line-Load Reversible.
Field-Fit table Auxiliaries for Advance Protection & Monitoring.
Positive Contact Indication for Assurance of Disconnection.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	6 Amp
Curve Type	B
Number of Poles	Single Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N1P06B
Number of Modules	1
Protection Class	IP20
Rated Voltage	220-240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 2 Nm
Ambient Temperature	Operating: -30 to 70 deg C Storage: -40 to 85 deg C
Model	xC60
Mounting type	Clip-on (DIN Rail)
Notes	Images are for reference purpose only
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Weight	0.115 kg
Country of origin	India
Manufacturer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Packer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Common/Generic Name	MCB
Dimensions LxWxH	9.5x8.5x14 cm
Weight	0.117 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 xC60 6A B-Curve Single Pole MCB offers reliable circuit protection with a 10 kA breaking capacity, ideal for various AC applications. Designed for easy clip-on DIN rail mounting, this single-pole, 1-module MCB ensures quick installation with its Biconnect and line-load reversible features. Its fast closure mechanism and energy limitation class 3 provide enhanced system performance and longer installation life. With positive contact indication and field-fit auxiliaries, it guarantees advanced protection and monitoring, making it a smart choice for efficient and safe electrical setups. This pack of 10 delivers consistent quality and assurance from Schneider Electric.
