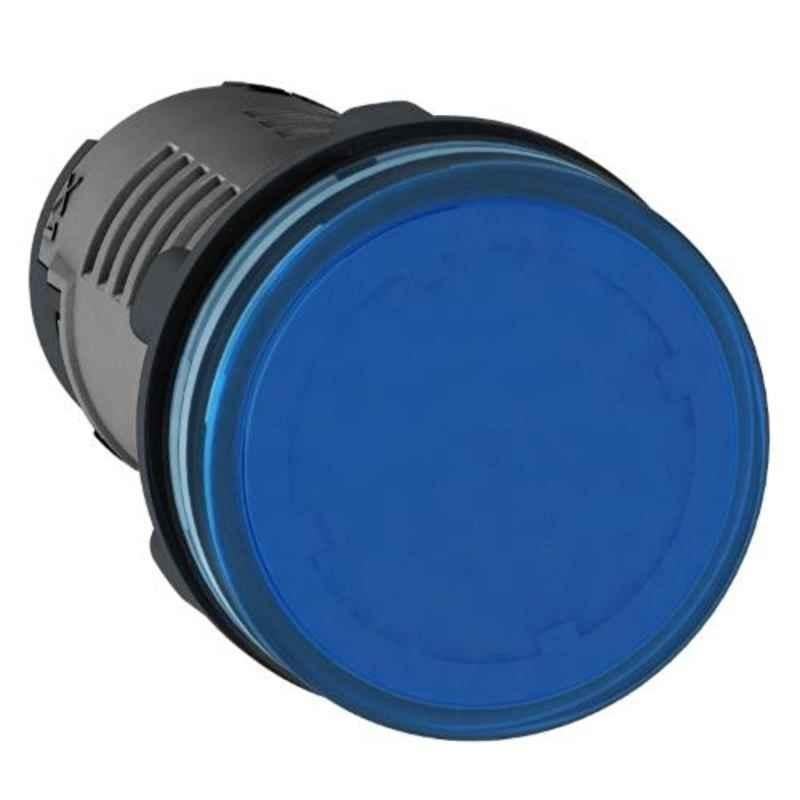

Schneider Electric Easy Harmony XA2 110V Blue Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF6LC, (Pack of 5)

Name: Schneider Electric Easy Harmony XA2 110V Blue Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF6LC, (Pack of 5)
Brand: Schneider Electric
SKU: MSNNKQYVGQVZ9X
Price: 1229 INR
Availability: InStock

₹1,229 (Incl. of all taxes)

₹1,041 ₹188 GST

MRP ₹1,810 32% OFF

Buy More & Save More

Qty 2

₹1,219 /pc

32% OFF

Qty 3

₹1,215 /pc

32% OFF

Qty 4 - 5

₹1,210 /pc

33% OFF

Qty 6 - 7

₹1,201 /pc

33% OFF

Qty 8+

₹1,192 /pc

34% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹1,106

with Coupon & Offers

Extra ₹122.9 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Cash on Delivery

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

About This Product

Product Specifications

Brand	Schneider Electric
Activity	IDSIG
Ambient Temperature	Storage: -40 to 80 deg C Operation: -25 to 70 deg C
Bulb Base	Integral LED
Certification	CE & CCC
Colour	Blue
Component Name	XA2E
Connections	Terminals: Screw Clamp Terminals, <= 2x1.5 mm² with Cable End Conforming to EN/IEC 60947-1 Screw Clamp Terminals, 1x0.5-1x2.5 mm² without Cable End Conforming to EN/IEC 60947-1
Customer Care Number	1800 103 0011
Depth	53 mm
Device Mounting	Fixing Hole-Diameter: 22.5 mm 22.3 +0.4/0 Conforming to EN/IEC 60947-5-1
Diameter	22 mm
Fixing Center	>= 30x40 mm (Support Panel) Metal-Thickness: 1-6 mm >= 30x40 mm (Support Panel) Plastic-Thickness: 2-6 mm
Fixing Mode	Fixing Nut Beneath Head Recommended Torque: 1.2 Nm (±0.4 Nm)
Frequency	50-60 Hz
Height	29 mm
Impulse Voltage	6 kV EN/IEC 60947-1
Item Code	XA2EVF6LC
Life Hours	50000hr at Rated Voltage & 25 deg C
Light Source	LED
Mounting Diameter	22 mm
Overvoltage Category	Class I Conforming to IEC 536
Protection Class	IP40 (Front Face) Conforming to IEC 60529 IP40 (Rear Face) Conforming to IEC 60529
Protective Treatment	TC
Series	Easy Harmony XA2
Shape	Round
Shape of Signaling Unit Head	Round
Shock Resistance	50 gn (Duration: 11 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27 30 gn (Duration: 18 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27
Signalling Type	Steady
Standards	GB 14048.1 GB 14048.5 IEC 60947-1 IEC 60947-5-1
Supply Voltage	0.8-1.1 V AC
Terminal Type	(X1-X2)PL
Type	Monolithic Pilot Light
Vibration Resistance	5 gn (f: 2-500 Hz) Conforming to IEC 60068-2-6
Voltage	110 V
Warranty	1 Year
Weight	0.017 kg
Width	29 mm
Country of origin	India
Manufacturer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Packer Details	ELECTRICAL CONTROL SYSTEMS PRIVATE LIMITED, Second Floor, Plot No.15, Sector-33, Opp. Infocity, Gurugram, Gurugram, Haryana, 122003 , Gurgaon, Haryana-122003, India
Common/Generic Name	Light
Dimensions LxWxH	2.9x2.9x5.3 cm
Weight	0.02 kg

Show All Specifications

Product Details

Schneider Electric Easy Harmony XA2 110V Blue Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF6LC, (Pack of 5) is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Pilot Lamps. All Schneider Electric Easy Harmony XA2 110V Blue Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF6LC, (Pack of 5) are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric Easy Harmony XA2 110V Blue Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF6LC, (Pack of 5), are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Pilot Lamps .
