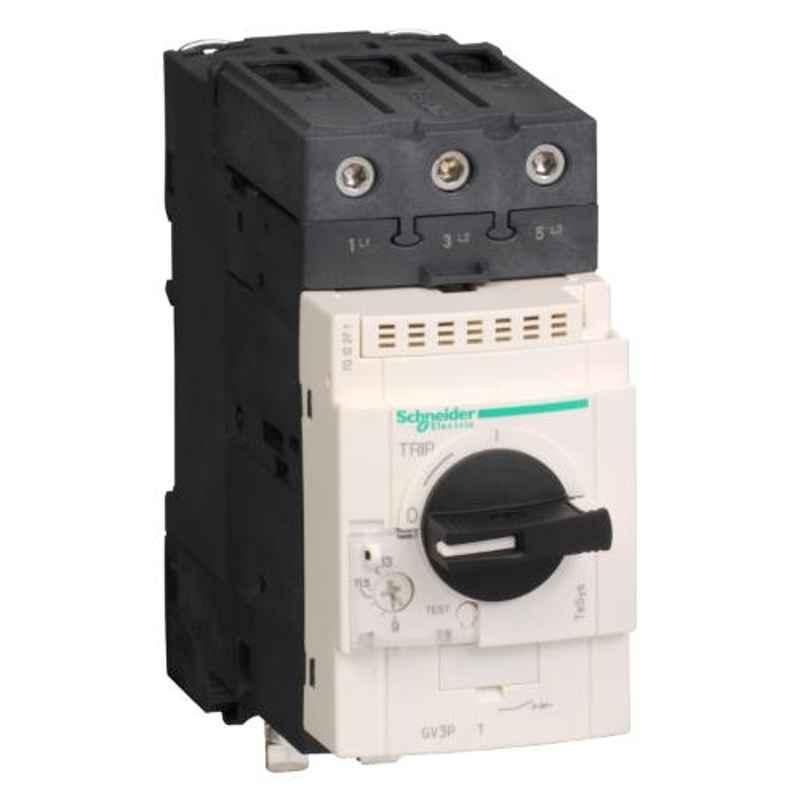

Schneider Electric TeSys GV3 30-40A Thermal Magnetic Upstream Everlink Terminal Circuit Breaker, GV3P401

Name: Schneider Electric TeSys GV3 30-40A Thermal Magnetic Upstream Everlink Terminal Circuit Breaker, GV3P401
Brand: Schneider Electric
SKU: MSNE5N8LYPWYKL
Price: 10675 INR
Availability: OutOfStock

₹10,675 (Incl. of all taxes)

₹9,044 ₹1,631 GST

MRP ₹19,950 46% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Fire Resistance: 960 deg C Conforming to IEC 60695-2-1.

Product Specifications

Brand	Schneider Electric
Ambient Temperature	Operation: -20 to 60 deg C Storage: -40 to 80 deg C
Applications	Motor
Breaking Capacity	100 kA Icu at 230/240 V AC 50-60 Hz Conforming to IEC 60947-250 kA Icu at 440 V AC 50-60 Hz Conforming to IEC 60947-2 6 kA Icu at 690 V AC 50-60 Hz Conforming to IEC 60947-2 50 kA Icu at 400/415 V AC 50-60 Hz Conforming to IEC 60947-2 12 kA Icu at 500 V AC 50-60 Hz Conforming to IEC 60947-2
Certification	IECEE CB Scheme UL CSA CCC EAC ATEX BV LROS (Lloyds Register of Shipping) DNV-GL ABS
Controls	Rotary Knob
Customer Care Number	1800 103 0011
Degree of Protection	IK: IK09
Dimensions	55x136x132 mm
EAN	3389119412254
Frequency	50-60 Hz
Item Code	GV3P401
Motor Power	18.5 kW at 400/415 V AC 50-60 Hz 22 kW at 500 V AC 50-60 Hz 37 kW at 690 V AC 50-60 Hz
Number of Poles	3
Operating Altitude	3000 m
Protective Treatment	TH
Rated Current	40 Amp
Rated Voltage	690 V AC at 50-60 Hz Conforming to IEC 60947-2
Series	TeSys GV3
Standards	EN/IEC 60947-2 EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1
Technology	Thermal Magnetic
Thermal Protection Range	30 to 40 Amp
Warranty	18 Months
Weight	0.96 kg
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Circuit Breaker
Dimensions LxWxH	55x136x132 mm
Weight	960 g

Show All Specifications

Product Details

Schneider Electric TeSys GV3 30-40A Thermal Magnetic Upstream Everlink Terminal Circuit Breaker, GV3P401 is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Motor Circuit Breakers. All Schneider Electric TeSys GV3 30-40A Thermal Magnetic Upstream Everlink Terminal Circuit Breaker, GV3P401 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric TeSys GV3 30-40A Thermal Magnetic Upstream Everlink Terminal Circuit Breaker, GV3P401, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Motor Circuit Breakers .
