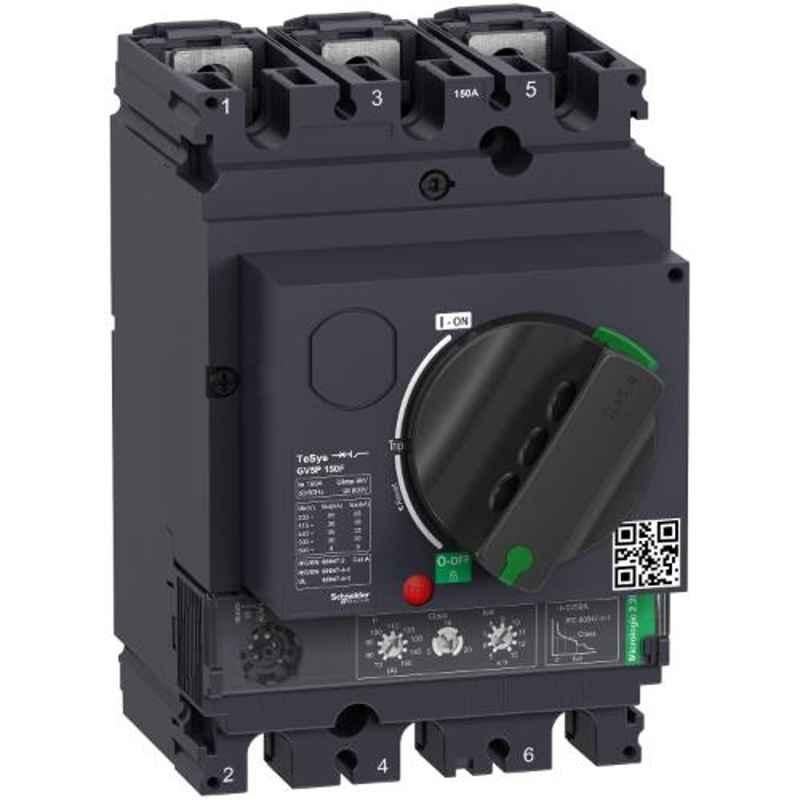

Schneider Electric TeSys GV5P 2250A 3 Pole Motor Circuit Breaker, GV5P150F

Name: Schneider Electric TeSys GV5P 2250A 3 Pole Motor Circuit Breaker, GV5P150F
Brand: Schneider Electric
SKU: MSNR50NXOLM251
Price: 21216 INR
Availability: OutOfStock

₹21,216 (Incl. of all taxes)

₹17,984 ₹3,232 GST

MRP ₹26,220 19% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Protection Type: Overload Protection, Short Circuit Protection, Instantaneous Short Circuit Protection, Phase Unbalance & Phase Loss.
Fire Resistance: 960 deg C Conforming to IEC 60695-2-1.

Product Specifications

Brand	Schneider Electric
Ambient Temperature	Operation: -25 to 70 deg C Storage: -55 to 85 deg C
Applications	Motor Protection
Breaking Capacity	36 kA Icu at 400/415 V AC 50-60 Hz Conforming to IEC 60947-2 30 kA Icu at 500 V AC 50-60 Hz Conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50-60 Hz Conforming to IEC 60947-2
Certification	IECEE CB Scheme EAC (Pending)
Colour	Anthracite
Controls	Direct Rotary
Customer Care Number	1800 103 0011
Degree of Protection	IP40 conforming to IEC 60529 IK07 conforming to IEC 62262
Dimensions	105x155x161 mm
EAN	3606489915407
Frequency	50-60 Hz
Item Code	GV5P150F
Motor Power	55-75 kW at 400/415 V AC 50-60 Hz 75-90 kW at 500 V AC 50-60 Hz 90-110 kW at 660/690 V AC 50-60 Hz
Number of Poles	3
Operating Altitude	0-2000 m (Without Derating)
Protective Treatment	TC
Rated Current	150 Amp at 65 deg C
Rated Power	9.2 W
Rated Voltage	Operational: 690 V AC Insulation: 800 V AC at 50-60 Hz Conforming to IEC 60947-2
Series	TeSys GV5P
Standards	EN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
Tripping Current	2250 Amp
Warranty	18 Months
Weight	2.4 kg
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Motor Circuit Breaker
Dimensions LxWxH	105x155x161 mm
Weight	2.4 kg

Show All Specifications

Product Details

Schneider Electric TeSys GV5P 2250A 3 Pole Motor Circuit Breaker, GV5P150F is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Motor Circuit Breakers. All Schneider Electric TeSys GV5P 2250A 3 Pole Motor Circuit Breaker, GV5P150F are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric TeSys GV5P 2250A 3 Pole Motor Circuit Breaker, GV5P150F, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Motor Circuit Breakers .
