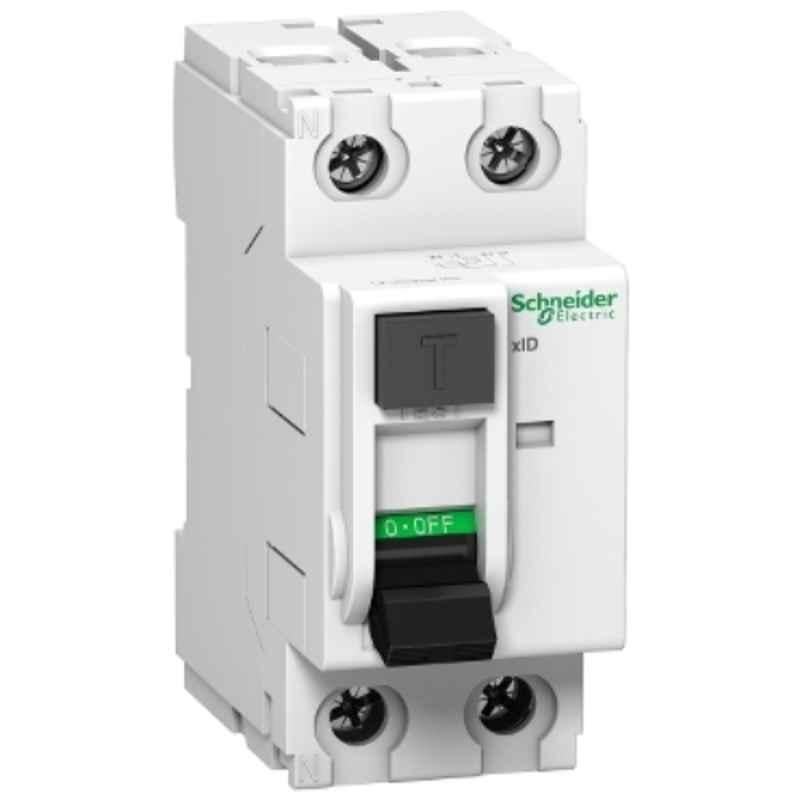

Schneider Electric Acti9 xID 40A 30mA Double Pole SI Type RCCB, A9N16237

Name: Schneider Electric Acti9 xID 40A 30mA Double Pole SI Type RCCB, A9N16237
Brand: Schneider Electric
SKU: MSN2VDZ3EB5NGX
Price: 5148 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹5,148 (Incl. of all taxes)

₹4,362 ₹786 GST

MRP ₹13,612 62% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Offers Reliable Protection for Electrical Circuits with a 40 Amp Current Rating.
Double Pole Configuration Enhances Safety by Disconnecting Both Live & Neutral Lines.
Polluted & Corrosive Environments: Guaranteed Performance in Harsh Operating Conditions.
Triggers Tripping on Faults in Networks with Pulsating DC Components or HF Applications that Conventional RCDS Miss.
Ensures Continuity of Supply: Protects Networks from Transient Overvoltage, Harmonic Leakage Currents & Continuous Leakage Currents.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Earth Leakage Sensitivity	30 mA
Item Code	A9N16237
Modules Width	18 mm
Number of Poles	Double Pole
Rated Current	40 Amp
AC or DC	AC
Ambient Temperature	Operating: -5 to 40 deg C Storage: -40 to 85 deg C
Certification	ISI
Class	A-SI (Super Immunised)
Colour	White
Dimensions	81x36x75 mm
Frequency	50 Hz
Humidity	95%
Impulse Voltage	6 kV
Insulation Voltage	500 VAC
Model	xID SI
Mounting type	Clip-on (DIN Rail)
Notes	Image is only for reference purpose
Number of Module	2
Protection Class	IP20
Rated Voltage	230-240 VAC
Series	Acti9
Standards	EN 61008-2-1, EN/IEC 61008-1 & IEC 61008-2-1
Tightening Torque	3.5 Nm
Weight	210 g
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	RCCB
Dimensions LxWxH	4.1x8.6x8.6 cm
Weight	0.165 kg

Show All Specifications

Product Details

The Schneider Electric A9N16237 is a double-pole Residual Current Circuit Breaker (RCCB) designed for superior safety and reliability in electrical installations where sensitive and continuous protection is critical. With a 40A current rating and 30mA sensitivity, this SI (Super Immunized) Type RCCB delivers exceptional performance by instantly disconnecting the power supply upon detecting earth leakage currents, protecting users against electric shocks and fire risks. Its SI classification ensures enhanced immunity to transient voltages and external disturbances, making it suitable for environments with high electronic interference or surge-prone circuits. The device is engineered with Schneider�s advanced Acti9 technology, featuring robust terminals for secure wiring and a compact DIN-rail mountable design that fits seamlessly into residential or commercial distribution boards. Compliant with IEC 61008 standards and built with flame-retardant materials, it�s ideal for circuits with sensitive equipment or high safety requirements.
