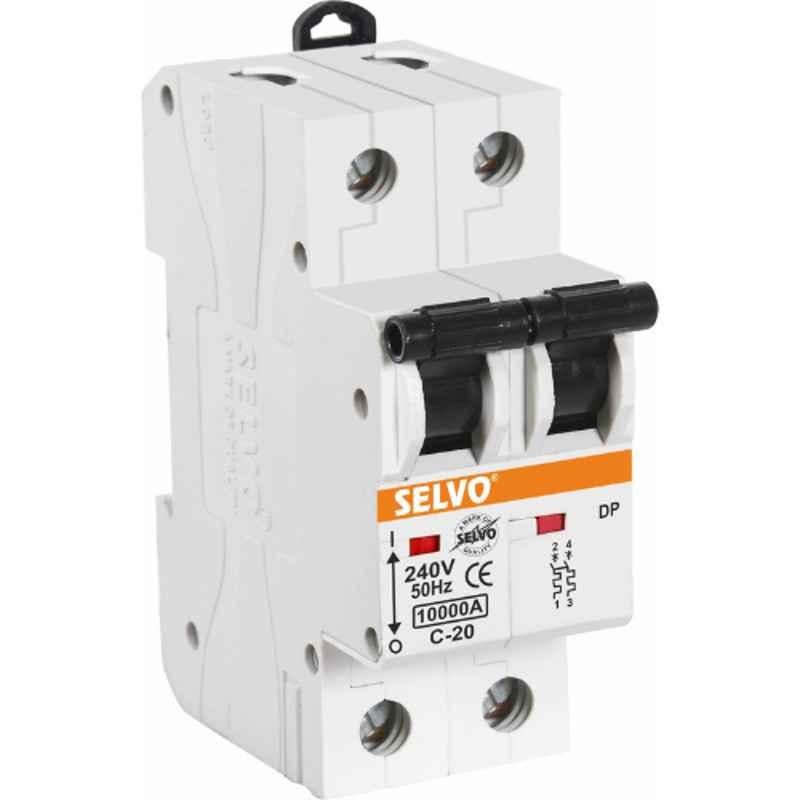

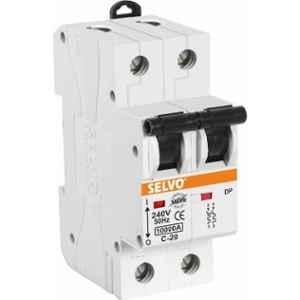

Selvo 20A C Curve Double Pole MCB, GSELDPC12020

Name: Selvo 20A C Curve Double Pole MCB, GSELDPC12020
Brand: Selvo
SKU: MSNE9J8XOJGR9D
Price: 596 INR
Availability: OutOfStock

₹596 (Incl. of all taxes)

₹499 ₹97 GST

MRP ₹789 24% OFF

AVAILABLE ON REQUEST

Number of Poles

Double Pole
Four Pole
Single Pole
Three Pole

Current Rating

20 Amp
10 Amp
16 Amp
32 Amp
40 Amp
6 Amp
63 Amp

Moglix Insights

About This Product

Key Features

Large & Dual Terminating Terminal Size.
Flame Retardant Body for Extra Strength & Insulation.
Bi-Stable Din Clip Provided for Easily Fixing & Removing MCB From Din Rail.
Ease of Clamping, Breaking Capacity, Energy Limiting Class 3 & Ergonomic Knob.
Excellent Quality Material, Air Circulation Grooves, Positive Contact Position Indication, 12 Plates Arc Chamber & Neutral Pole Protected.

Show All Key Features

Product Specifications

Brand	Selvo
Breaking Capacity	10 kA
Current Rating	20 Amp
Curve Type	C
Number of Poles	Double Pole
AC or DC	AC
Frequency	50 Hz
Item Code	GSELDPC12020
Protection Class	IP20
Rated Voltage	240 VAC
Additional Details	Maximum Operating Cycles: 10000 Tightening Torque: 2 Newton Meter Terminal Capacity: Up to 35 sqmm Creepage Distance: More Than 3-4 mm Trip Indication: Mid Trip Functionality Circuit Breaker Type: Standard Rated Insulation Voltage: 660 V AC
Ambient Temperature	-5 to 55 deg C
Mounting type	DIN Rail Mount
Standards	ISI Marked As per IS/IEC 60898-1:2015
Country of origin	India
Manufacturer Details	Selvo Electricals India Pvt. Ltd., B-46, Sector-67, Noida, Uttar Pradesh, 201301
Packer Details	Selvo Electricals India Pvt. Ltd., B-46, Sector-67, Noida, Uttar Pradesh, 201301
Common/Generic Name	MCB
Dimensions LxWxH	10x8x8 cm
Weight	0.2 kg

Show All Specifications

Product Details

Selvo 20A C Curve Double Pole MCB, GSELDPC12020 is a premium quality product from Selvo . Moglix is a well-known ecommerce platform for qualitative range of MCB. All Selvo 20A C Curve Double Pole MCB, GSELDPC12020 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Selvo 20A C Curve Double Pole MCB, GSELDPC12020, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Selvo products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Selvo MCB .
