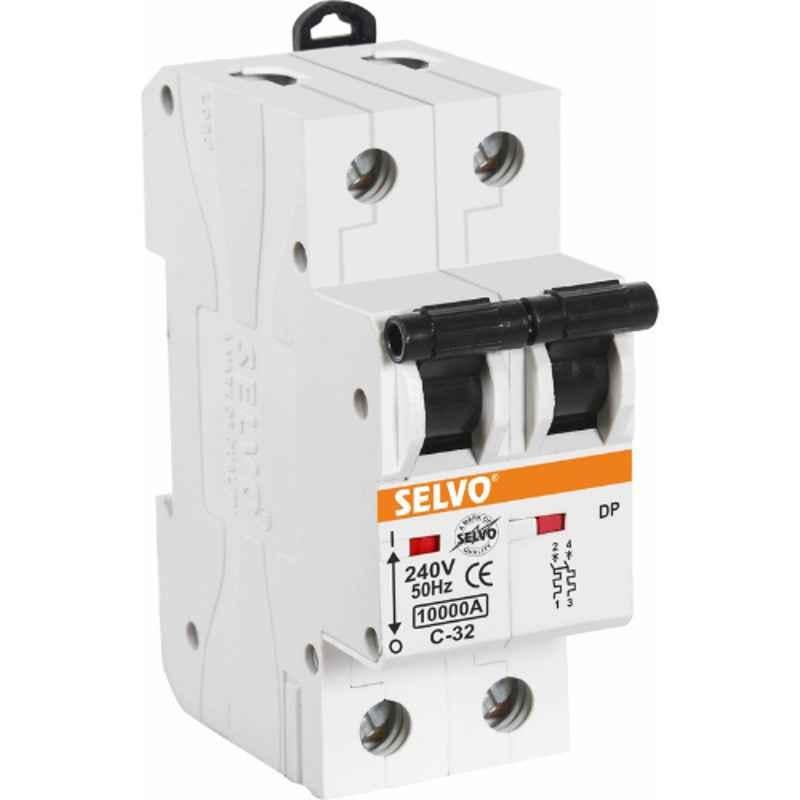

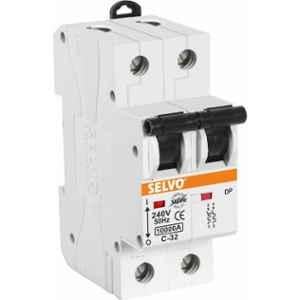

Selvo 32A C Curve Double Pole MCB, GSELDPC12022

Name: Selvo 32A C Curve Double Pole MCB, GSELDPC12022
Brand: Selvo
SKU: MSNG9VNPMGLDKP
Price: 590 INR
Availability: OutOfStock

₹590 (Incl. of all taxes)

₹499 + ₹91 GST

MRP ₹789 25% OFF

AVAILABLE ON REQUEST

Number of Poles

Double Pole
Four Pole
Single Pole
Three Pole

Current Rating

32 Amp
10 Amp
16 Amp
20 Amp
40 Amp
6 Amp
63 Amp

About This Product

Key Features

Large & Dual Terminating Terminal Size.
Flame Retardant Body for Extra Strength & Insulation.
Bi-Stable Din Clip Provided for Easily Fixing & Removing MCB From Din Rail.
Ease of Clamping, Breaking Capacity, Energy Limiting Class 3 & Ergonomic Knob.
Excellent Quality Material, Air Circulation Grooves, Positive Contact Position Indication, 12 Plates Arc Chamber & Neutral Pole Protected.

Show All Key Features

Product Specifications

Brand	Selvo
Breaking Capacity	10 kA
Current Rating	32 Amp
Curve Type	C
Number of Poles	Double Pole
AC or DC	AC
Frequency	50 Hz
Item Code	GSELDPC12022
Protection Class	IP20
Rated Voltage	240 VAC
Additional Details	Maximum Operating Cycles: 10000 Tightening Torque: 2 Newton Meter Terminal Capacity: Up to 35 sqmm Creepage Distance: More Than 3-4 mm Trip Indication: Mid Trip Functionality Circuit Breaker Type: Standard Rated Insulation Voltage: 660 V AC
Ambient Temperature	-5 to 55 deg C
Mounting type	DIN Rail Mount
Standards	ISI Marked As per IS/IEC 60898-1:2015
Country of origin	India
Manufacturer Details	Selvo Electricals India Pvt. Ltd., B-46, Sector-67, Noida, Uttar Pradesh, 201301
Packer Details	Selvo Electricals India Pvt. Ltd., B-46, Sector-67, Noida, Uttar Pradesh, 201301
Common/Generic Name	MCB
Dimensions LxWxH	10x8x8 cm
Weight	0.2 kg

Show All Specifications

Product Details

The Selvo 32 Amp Double Pole MCB is a reliable and efficient solution for protecting electrical circuits. With a current rating of 32 Amp and a frequency of 50 Hz, this MCB is designed to handle the demands of various electrical systems. Featuring a protection class of IP20, the Selvo MCB ensures the safety of both individuals and equipment by preventing dust and foreign objects from entering the circuit. With its double pole configuration, it provides enhanced protection against short circuits and overloads. The breaking capacity of 10 kA ensures that this MCB can safely interrupt fault currents and protect the electrical system from potential damage. With a rated voltage of 240 VAC, it is suitable for a wide range of applications. Designed specifically for AC power, the Selvo 32 Amp Double Pole MCB is built to provide reliable and consistent performance. Its sturdy construction and high-quality materials ensure long-lasting durability.
