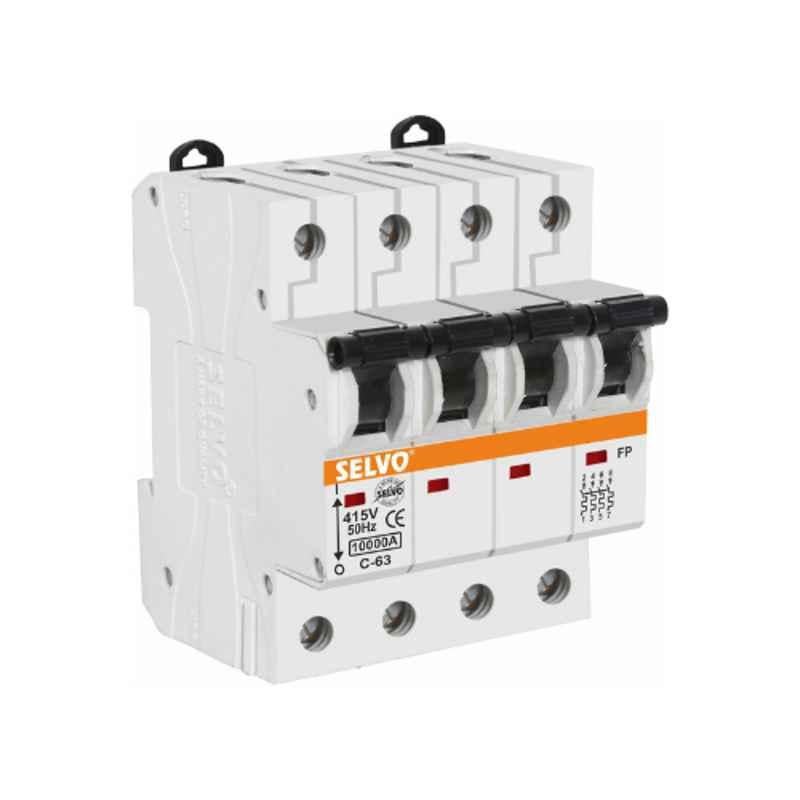

Selvo 63A C Curve Four Pole MCB, GSELFPC12048

Name: Selvo 63A C Curve Four Pole MCB, GSELFPC12048
Brand: Selvo
SKU: MSNG9VNPMG6DKP
Price: 1388 INR
Availability: OutOfStock

₹1,388 (Incl. of all taxes)

₹1,177 ₹211 GST

MRP ₹2,899 52% OFF

AVAILABLE ON REQUEST

Number of Poles

Four Pole
Double Pole
Single Pole
Three Pole

Current Rating

63 Amp
10 Amp
16 Amp
20 Amp
32 Amp
40 Amp
6 Amp

About This Product

Key Features

Large & Dual Terminating Terminal Size.
Flame Retardant Body for Extra Strength & Insulation.
Bi-Stable Din Clip Provided for Easily Fixing & Removing MCB From Din Rail.
Ease of Clamping, Breaking Capacity, Energy Limiting Class 3 & Ergonomic Knob.
Excellent Quality Material, Air Circulation Grooves, Positive Contact Position Indication, 12 Plates Arc Chamber & Neutral Pole Protected.

Show All Key Features

Product Specifications

Brand	Selvo
Breaking Capacity	10 kA
Current Rating	63 Amp
Curve Type	C
Number of Poles	Four Pole
AC or DC	AC
Frequency	50 Hz
Item Code	GSELFPC12048
Protection Class	IP20
Rated Voltage	415 V
Additional Details	Maximum Operating Cycles: 10000 Tightening Torque: 2 Newton Meter Terminal Capacity: Up to 35 sqmm Creepage Distance: More Than 3-4 mm Trip Indication: Mid Trip Functionality Circuit Breaker Type: Standard Rated Insulation Voltage: 660 V AC
Ambient Temperature	-5 to 55 deg C
Mounting type	DIN Rail Mount
Standards	ISI Marked As per IS/IEC 60898-1:2015
Country of origin	India
Manufacturer Details	Selvo Electricals India Pvt. Ltd., B-46, Sector-67, Noida, Uttar Pradesh, 201301
Packer Details	Selvo Electricals India Pvt. Ltd., B-46, Sector-67, Noida, Uttar Pradesh, 201301
Common/Generic Name	MCB
Dimensions LxWxH	8x8x9 cm
Weight	0.4 kg

Show All Specifications

Product Details

Selvo 63A C Curve Four Pole MCB, GSELFPC12048 is a premium quality product from Selvo . Moglix is a well-known ecommerce platform for qualitative range of MCB. All Selvo 63A C Curve Four Pole MCB, GSELFPC12048 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Selvo 63A C Curve Four Pole MCB, GSELFPC12048, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Selvo products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Selvo MCB .
