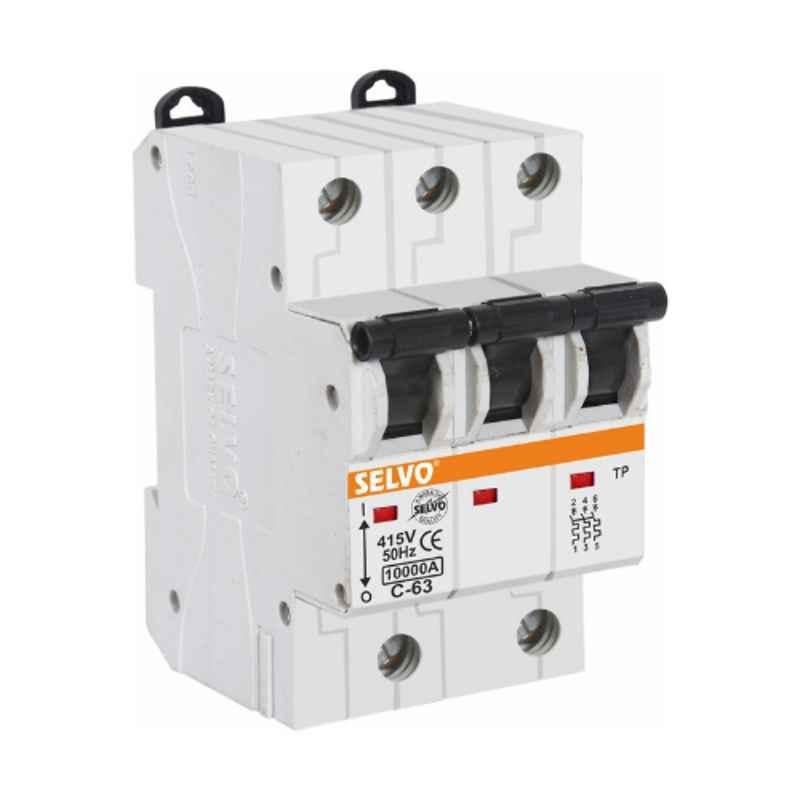

Selvo 63A C Curve Three Pole MCB, GSELTPC12032

Name: Selvo 63A C Curve Three Pole MCB, GSELTPC12032
Brand: Selvo
SKU: MSN2KM1NQP189V
Price: 1055 INR
Availability: OutOfStock

₹1,055 (Incl. of all taxes)

₹897 ₹158 GST

MRP ₹1,899 44% OFF

AVAILABLE ON REQUEST

Number of Poles

Three Pole
Double Pole
Four Pole
Single Pole

Current Rating

63 Amp
10 Amp
16 Amp
20 Amp
32 Amp
40 Amp
6 Amp

Moglix Insights

About This Product

Key Features

Large & Dual Terminating Terminal Size.
Flame Retardant Body for Extra Strength & Insulation.
Bi-Stable Din Clip Provided for Easily Fixing & Removing MCB From Din Rail.
Ease of Clamping, Breaking Capacity, Energy Limiting Class 3 & Ergonomic Knob.
Excellent Quality Material, Air Circulation Grooves, Positive Contact Position Indication, 12 Plates Arc Chamber & Neutral Pole Protected.

Show All Key Features

Product Specifications

Brand	Selvo
Breaking Capacity	10 kA
Current Rating	63 Amp
Curve Type	C
Number of Poles	Three Pole
AC or DC	AC
Frequency	50 Hz
Item Code	GSELTPC12032
Protection Class	IP20
Rated Voltage	415 V
Additional Details	Maximum Operating Cycles: 10000 Tightening Torque: 2 Newton Meter Terminal Capacity: Up to 35 sqmm Creepage Distance: More Than 3-4 mm Trip Indication: Mid Trip Functionality Circuit Breaker Type: Standard Rated Insulation Voltage: 660 V AC
Ambient Temperature	-5 to 55 deg C
Mounting type	DIN Rail Mount
Standards	ISI Marked As per IS/IEC 60898-1:2015
Country of origin	India
Manufacturer Details	Selvo Electricals India Pvt. Ltd., B-46, Sector-67, Noida, Uttar Pradesh, 201301
Packer Details	Selvo Electricals India Pvt. Ltd., B-46, Sector-67, Noida, Uttar Pradesh, 201301
Common/Generic Name	MCB
Dimensions LxWxH	8x8x9 cm
Weight	0.4 kg

Show All Specifications

Product Details

The Selvo MCB is a high-quality circuit breaker designed for electrical systems in various applications. With a current rating of 63 Amp, it can effectively protect your electrical circuits from overload or short circuits. This MCB operates at a frequency of 50 Hz, ensuring reliable performance in any power supply environment. Featuring a three-pole design, this MCB is suitable for use in three-phase systems, providing enhanced protection and stability. The breaking capacity of 10 kA ensures that the circuit breaker can handle high fault currents, guaranteeing the safety of your electrical installations. With a rated voltage of 415 V, this MCB is ideal for AC electrical systems. It is specifically designed for use in indoor environments with an IP20 protection rating, ensuring protection against solid objects larger than 12 mm in diameter. The Selvo MCB is manufactured with the highest quality standards, ensuring durability and long-lasting performance.
