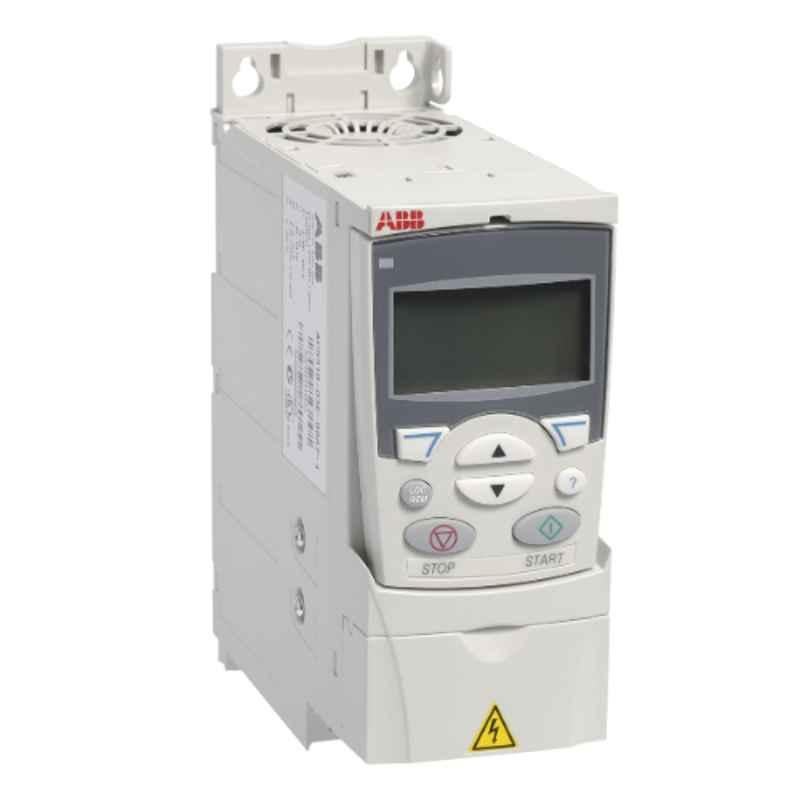

ABB 0.37kW 0.5HP 3 Phase General Purpose Drive, ACS310-03E-01A3-4

₹10,964 (Incl. of all taxes)

₹9,291 ₹1,673 GST

MRP ₹28,750 61% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Input Supply Voltage & Phase: 3 Phase 380 to 480V ± 10%.
Frame Size & Dimension (HxWxD): R0 & 169X70X161mm.
Control Panel & Display Unit: Basic Control Panel Comes as a Standard.
Motor Control Method: Scalar Control U/f.
Built-in Inputs & Outputs: 2AI/1AO/5DI/1RO/1DO.
EMC Filters: Integrated C3 EMC Filter.
Dynamic Braking: No Integrated Brake Chopper.
Maximum Continuous Output Current at Ambient Temp of 40 deg C-I₂ɴ(A): 1.3.
Continuous Output Current at Max Ambient Temp of 50 deg C-ILd(A): 1.2.

Show All Key Features

Product Specifications

Brand	ABB
Ambient Temperature	-10 to 40 deg C (No Frost Allowed)
Applications	Pump, Fan, Wood Srying Kilns & Irrigation Systems
Auxiliary Output Voltage	24 V DC ± 10%, Max 200 mA
Degree of Protection	IP20
Frequency Mains Connection	48-63 Hz
In Built Communication	Embedded Modbus EIA-485 Fieldbus
Internal Protection	Coated Boards-Protects Electronics from Hazards
Item Code	ACS310-03E-01A3-4
Module Weight	1.1 kg
Mounting type	Wall Mounted
Number of Phases	3
Options	Flash Drop Tool Assistant Control Panel Optional NEMA1 Enclosure Drive Derating Option from 40 to 50 deg C External Options: Input & Output AC Chokes & EMC Filter Extension Modules: Relay Output Extension Module (Can Hold Optional 3 Relay Outputs)
Output Frequency	0 to 500 Hz
Overload Capability at Heavy Duty Use	1.1xILd for 1 min Every 10 mins
Overload Capability at Starting	1.6xI₂ɴ for 2 sec
Power (HP)	0.5 HP
Power (kW)	0.37 kW
Product Compliance	RoHS Compliant EMC Directive 2004/108/EC Machinery Directive 2006/42/EC Environmental System ISO 14001 Low Voltage Directive 2006/95/EC Quality Assurance System ISO 9001 UL, cUL, CE, C-Tick & Gost R Approvals
Speed Control Method	PID Control
Supported Motor Types	Induction Motor
Switching Frequency	4 kHz Selectable
Country of origin	India
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Common/Generic Name	General Purpose Drive
Weight	1.32 Kg

Show All Specifications

Product Details

ABB 0.37kW 0.5HP 3 Phase General Purpose Drive, ACS310-03E-01A3-4 is a premium quality product from ABB . Moglix is a well-known ecommerce platform for qualitative range of Micro Drives. All ABB 0.37kW 0.5HP 3 Phase General Purpose Drive, ACS310-03E-01A3-4 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture ABB 0.37kW 0.5HP 3 Phase General Purpose Drive, ACS310-03E-01A3-4, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. ABB products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of ABB Micro Drives .
