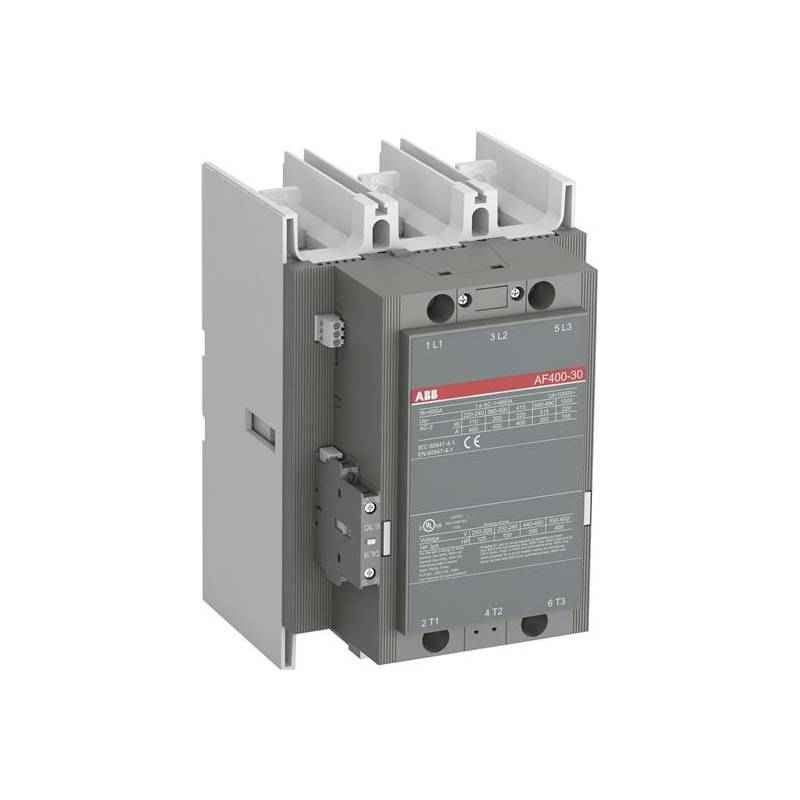

ABB AF400-30-11-70 3 Phase Contactor, 1SFL577001R7011

₹36,563 (Incl. of all taxes)

₹30,985 ₹5,578 GST

MRP ₹120,454 69% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Rated Insulation Volatge: Acc. to UL/CSA: 600 V.
Acc. to IEC 60947-4-1 & VDE 0110 (Gr. C): 1000 V.
Rated Impulse Withstand Voltage: 8 KV.
Degree of Protection: Acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20.
Acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00.

Show All Key Features

Product Specifications

Brand	ABB
Dimensions	18.6x21.6x27.8 cm
Frequency	Main Circuit: 50-60 Hz
Item Code	AF400-30-11-70
Number of Contacts	3 NC
Number of Phases	3
Operating Voltage	Main Circuit: 1000 V
Standards	0
Terminal Type	Main Circuit: Bars
Ambient Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 - 1.1 Uc) -25 to +50deg C Close to Contactor without Thermal O/L Relay (0.85 - 1.1 Uc) -40 to +70deg C Close to Contactor for Storage -40 to +70deg C
Auxillary Contact	Auxiliary Contacts NO: 1 Auxiliary Contacts NC: 1
EAN	7320500217665
Part Number	1SFL577001R7011
Warranty	1 Year
Weight	12000 g
Country of origin	India
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Common/Generic Name	Contactor
Dimensions LxWxH	18.6x21.6x27.8 cm
Weight	12 kg

Show All Specifications

Product Details

Conventional Free-air Thermal Current (I_th):
acc. to IEC 60947-4-1, Open Contactors q = 40 & 600 A
Rated Operational Current AC-1 (I_e):
(690 V) 55 & 500 A
(690 V) 40 & 600 A
(1000 V) 40 & 600 A
(1000 V) 55 & 500 A
(690 V) 70 & 400 A
(1000 V) 70 & 400 A
Rated Operational Current AC-3 (I_e):
(1000 V) 55 & 155 A
(690 V) 55 & 350 A
(415 V) 55 & 400 A
(220 / 230 / 240 V) 55 & 400 A
(440 V) 55 & 400 A
(380 / 400 V) 55 & 400 A
(500 V) 55 & 400 A
Rated Operational Power AC-3 (P_e):
(220 / 230 / 240 V) 110 kW
(380 / 400 V) 200 kW
(415 V) 220 kW
(440 V) 220 kW
(500 V) 250 kW
(690 V) 315 kW
(1000 V) 220 kW
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
10 x Ie AC-3
Short-Circuit Protective Devices:
gG Type Fuses 630 A
Rated Short-time Withstand Current (I_cw):
at 40 & Ambient Temp, in Free Air, from a Cold State 30 s 3100 A
at 40 & Ambient Temp, in Free Air, from a Cold State 10 s 4400 A
at 40 & Ambient Temp, in Free Air, from a Cold State 15 min 840 A
at 40 & Ambient Temp, in Free Air, from a Cold State 1 s 4600 A
at 40 & Ambient Temp, in Free Air, from a Cold State 1 min 2500 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 4000 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3500 A
Maximum Electrical Switching Frequency:
AC-3 300 cycles per hour
AC-1 300 cycles per hour
AC-2 / AC-4 60 cycles per hour
Rated Operational Current DC-1 (I_e):
(600 V) 3 Poles in Series, 40 & 600 A
(110 V) 1-Pole, 40 & 600 A
(110 V) 2 Poles in Series, 40 & 600 A
(220 V) 3 Poles in Series, 40 & 600 A
Rated Operational Current DC-3 (I_e):
(600 V) 3 Poles in Series, 40 & 600 A
(110 V) 1-Pole, 40 & 600 A
(110 V) 2 Poles in Series, 40 & 600 A
(220 V) 3 Poles in Series, 40 & 600 A
Rated Operational Current DC-5 (I_e):
(600 V) 3 Poles in Series, 40 & 600 A
(110 V) 1-Pole, 40 & 600 A
(110 V) 2 Poles in Series, 40 & 600 A
(220 V) 3 Poles in Series, 40 & 600 A

Mechanical Durability:
5 million
Maximum Mechanical Switching Frequency:
300 cycles per hour
Coil Operating Limits:
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 &) &
Rated Control Circuit Voltage (U_c):
60 Hz 100 ... 250 V
50 Hz 100 ... 250 V
DC Operation 100 ... 250 V
Coil Consumption:
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 955 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 V·A
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 895 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 955 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A

Connecting Capacity Main Circuit:
Rigid Al-Cable 2x240 mm²
Bar 47 mm
Rigid Cu-Cable 240 mm²
Connecting Capacity Auxiliary Circuit:
Solid 2 x 1 ... 4 mm²
Flexible with Insulated Ferrule 2 x 0.75 ... 2.5 mm²
Stranded 2 x 1 .... 4 mm²
Flexible 2x0.75 ... 2.5 mm²
Flexible with Ferrule 2 x 0.75 ... 2.5 mm²

Maximum Operating Altitude Permissible: 3000 m
