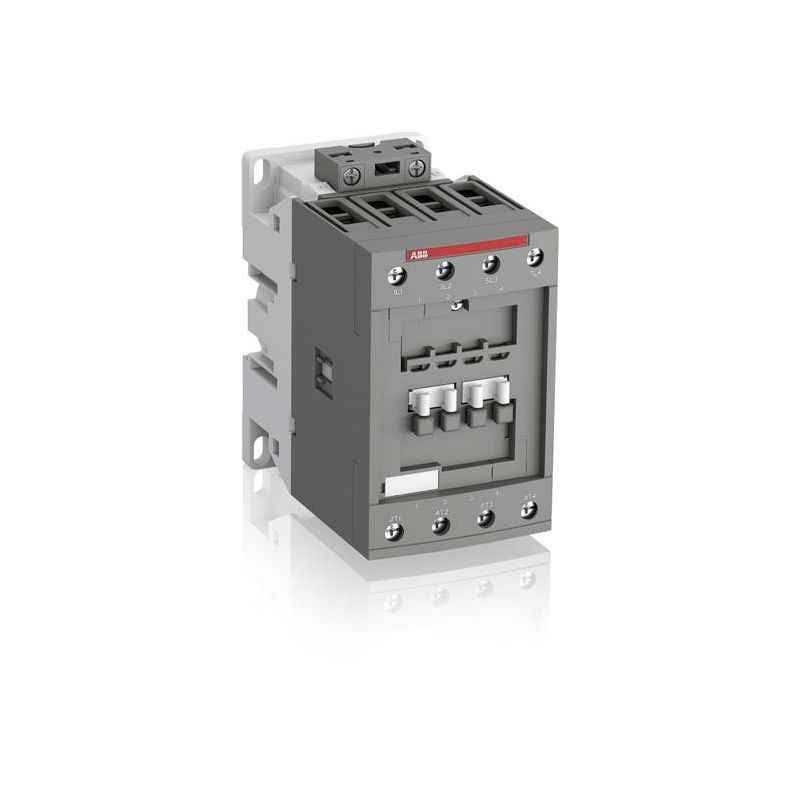

ABB AX65-30-11-80 3 Poles Contactor, 1SBL371074R8011

Product Details

• Conventional Free-air Thermal Current (I_th):

  acc. to IEC 60947-4-1, Open Contactors q = 40 & 125 A

• Rated Operational Current AC-1 (I_e):

  (690 V) 40 & 115 A
  (690 V) 70 & 80 A
  (220 / 240 V) 55 & 95 A

• Rated Operational Current AC-3 (I_e):

  (220 / 230 / 240 V) 55 & 65 A
  (380 / 400 V) 55 & 65 A
  (415 V) 55 & 65 A
  (440 V) 55 & 65 A
  (500 V) 55 & 55 A
  (690 V) 55 & 43 A

• Rated Operational Power AC-3 (P_e):

  (220 / 230 / 240 V) 18.5 kW
  (380 / 400 V) 30 kW
  (415 V) 37 kW
  (440 V) 37 kW
  (500 V) 37 kW
  (690 V) 37 kW

• Rated Short-time Withstand Current (I_cw):

  at 40 & Ambient Temp, in Free Air, from a Cold State 10 s 650 A
  at 40 & Ambient Temp, in Free Air, from a Cold State 15 min 135 A
  at 40 & Ambient Temp, in Free Air, from a Cold State 1 min 250 A
  at 40 & Ambient Temp, in Free Air, from a Cold State 1 s 1000 A
  at 40 & Ambient Temp, in Free Air, from a Cold State 30 s 370 A
  for 1 s -empty- A

• Maximum Breaking Capacity:

  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A
  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A

• Maximum Electrical Switching Frequency:

  AC-1 600 cycles per hour
  AC-3 600 cycles per hour

• Maximum Mechanical Switching Frequency:

  3600 cycles per hour

• Rated Control Circuit Voltage (U_c):

  50 Hz 220 ... 230 V
  60 Hz 230 ... 240 V

• Climatic Withstand:

  acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II

• Maximum Operating Altitude Permissible:

  3000 m
