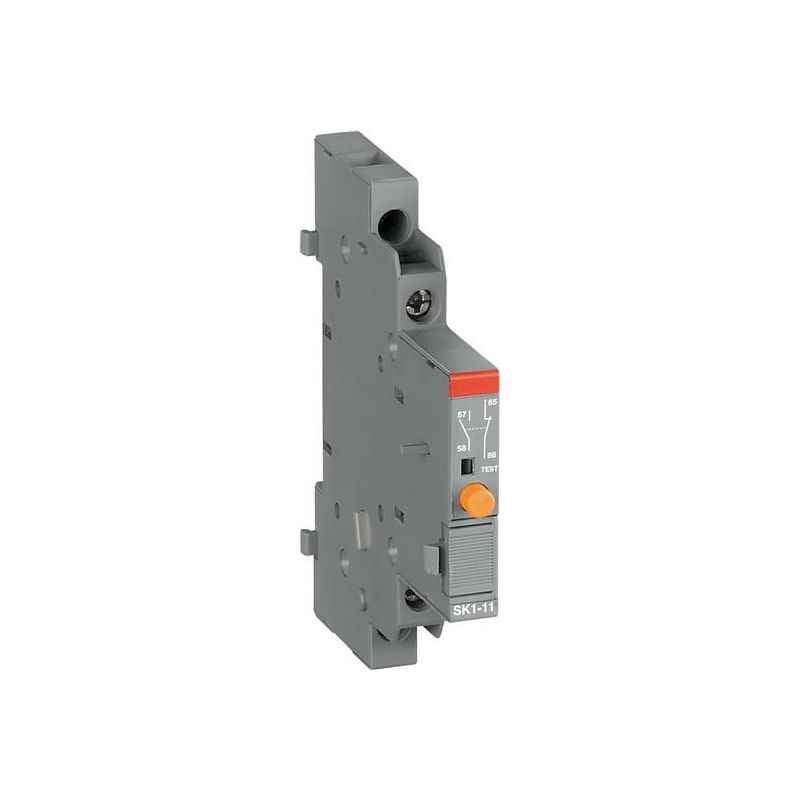

ABB SK1-11 1 NO + 1 NC Signal Contact, 1SAM201903R1001

• Rated Operational Current AC-15 (I_e):

  (240 V) 4 A
  (24 V) 6 A
  (380 / 400 V) 3 A
  (690 V) 1 A

• Rated Operational Current DC-13 (I_e):

  (125 V) 0.55 A
  (24 V) 2 A
  (250 V) 0.27 A
  (440 V) 0.15 A
  (600 V) 0.15 A

• Rated Impulse Withstand Voltage (U_imp):

  Auxiliary Circuit 6 kV

• Degree of Protection:

  IP20

• Electrical Durability:

  100000 cycle

• Mechanical Durability:

  100000 cycle

• Connecting Capacity Auxiliary Circuit:

  Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
  Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
  Flexible 1/2x 0.75 ... 1.5 mm²
  Rigid 1/2x 1 ... 1.5 mm²

• Tightening Torque:

  Auxiliary Circuit 0.8 ... 1.2 N·m

• Wire Stripping Length:

  Auxiliary Circuit 8 mm

• Recommended Screw Driver:

  M3
  Pozidriv 2

• Number of Auxiliary Contacts NO:

  1

• Number of Auxiliary Contacts NC:

  1

• Product Name:

  Signal Contact

• Suitable for Product Class:

  Manual Motor Starter

• Accessory Group:

  Electrical

• Accessory Type:

  Signal Contact

Environmental

• Ambient Air Temperature:

  Operation -25 ... +60 deg C
  Storage -50 ... +80 deg C

• RoHS Status:

  Following EU Directive 2002/95/EC August 18, 2005 and amendment

Technical UL/CSA

• Maximum Operating Voltage UL/CSA:

  Main Circuit 600 V AC

• Connecting Capacity Auxiliary Circuit UL/CSA:

  Flexible 1/2x 16-14 AWG
  Stranded 1/2x 16-14 AWG

• Tightening Torque UL/CSA:

  Auxiliary Circuit 7 in·lb

• Contact Rating UL/CSA:

  B600
  Q600
