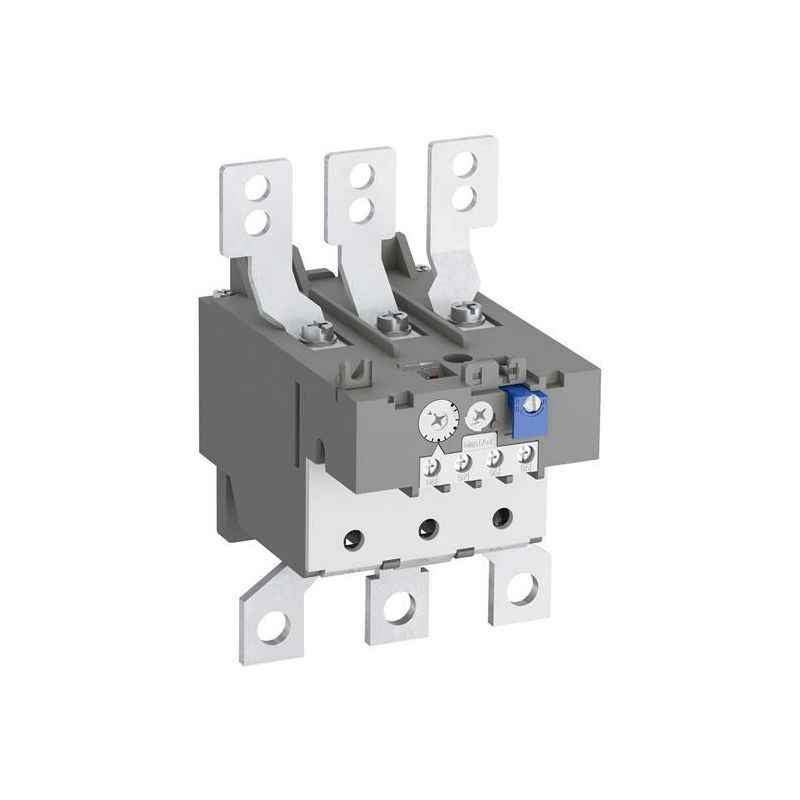

ABB TA200DU-110 3 Pole Thermal Overload Relay, 1SAZ421201R1002

₹12,343 (Incl. of all taxes)

₹10,460 ₹1,883 GST

MRP ₹17,771 30% OFF

AVAILABLE ON REQUEST

Product Specifications

Brand	ABB
Item Code	TA200DU-110
Auxillary Contact	Auxiliary Contacts NC: 1 Auxiliary Contacts NO: 1
Dimensions	12.6x15.1x1.4 cm
EAN	4013614286025
Frequency	Auxiliary Circuit: 50-60 Hz Auxiliary Circuit: DC
Insulated Voltage	690 V
Items in Pack	1 Piece
Number of Poles	3 Pole
Operating Current	110 A
Operating Voltage	Auxiliary Circuit: 440 V DC Auxiliary Circuit: 500 V AC Main Circuit: 690 V AC
Part Number	1SAZ421201R1002
Power Loss	Rated Operating Conditions per Pole: 2.5-4.7 W
Standards	IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
Suitable For	A145 A185 AF145 AF185 AF190 AF205
Warranty	1 Year
Weight	760 g
Country of origin	India
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Common/Generic Name	Overload Relay
Dimensions LxWxH	12.6x15.1x1.4 cm
Weight	760 g

Show All Specifications

Setting Range:
80 ... 110 A
Rated Operational Current (I_e):
110 A
Rated Operational Current AC-3 (I_e):
110 A
Rated Impulse Withstand Voltage (U_imp):
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Number of Protected Poles:
3
Conventional Free-air Thermal Current (I_th):
Auxiliary Circuit NC 5 A
Auxiliary Circuit NO 5 A
Rated Operational Current AC-15 (I_e):
(120 V) NC 3 A
(120 V) NO 1.5 A
(240 V) NC 3 A
(240 V) NO 1.5 A
(400 V) NC 1.9 A
(400 V) NO 1 A
(440 V) NC 1 A
(440 V) NO 1 A
(500 V) NC 1 A
(500 V) NO 1 A
Rated Operational Current DC-13 (I_e):
(125 V) NC 0.25 A
(125 V) NO 0.25 A
(24 V) NC 1.25 A
(24 V) NO 1.25 A
(250 V) NC 0.12 A
(250 V) NO 0.04 A
(60 V) NC 0.25 A
(60 V) NO 0.25 A
Degree of Protection:
Housing IP20
Main Circuit Terminals IP00
Pollution Degree:
3
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 0.75 ... 4 mm²
Connecting Capacity Main Circuit:
Hole Diameter > 10 mm²
Rigid or Flexible with Cable Lug 1x 25 ... 120 mm²
Tightening Torque:
Auxiliary Circuit 1 ... 1.3 N·m
Main Circuit 25 N·m
Wire Stripping Length:
Auxiliary Circuit 9 mm
Recommended Screw Driver:
Auxiliary Circuit Pozidriv 1
Main Circuit Open Bars
Mounting Position:
Position 1 to 6

Ambient Air Temperature:
Operation -25 ... +55 deg C
Operation Compensated -25 ... +55 deg C
Storage -40 ... +70 deg C
Ambient Air Temperature Compensation:
Yes
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 12g
RoHS Status:
Following EU Directive 2011/65/EU

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Ampere Rating UL/CSA:
110 A
Contact Rating UL/CSA:
(NC:) B600
(NO:) C600
Connecting Capacity Main Circuit UL/CSA:
Flexible 1x 4-0000 AWG
Stranded 1x 4-0000 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 18-14 AWG
Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 12 in·lb
Main Circuit 220 in·lb
