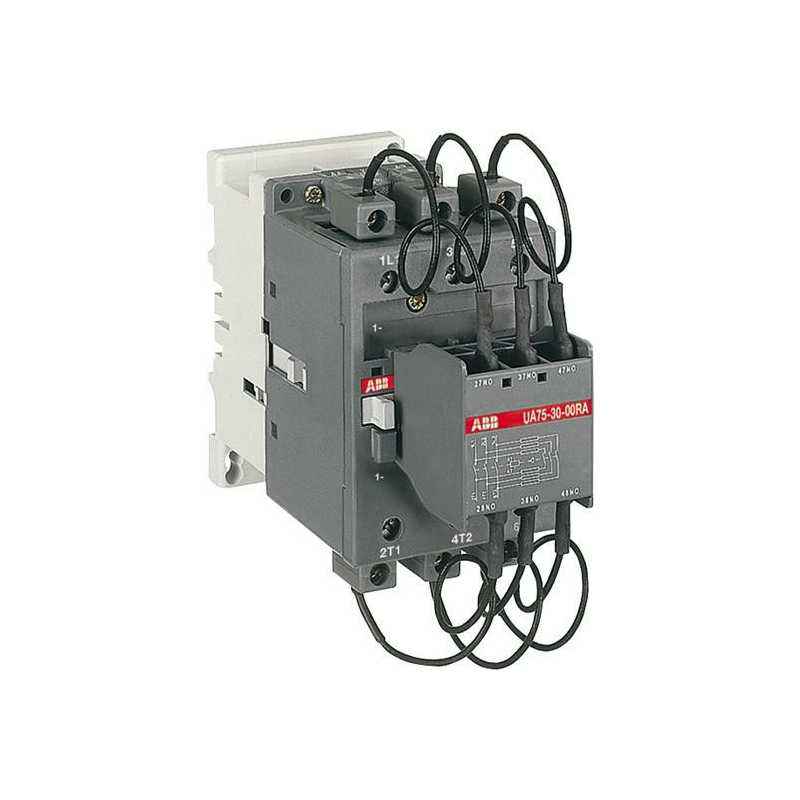

ABB UA75-30-00RA 3 Poles Contactor, 1SBL411024R8400

₹9,490 (Incl. of all taxes)

₹8,042 ₹1,448 GST

MRP ₹25,925 63% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Rated Insulation Volatge: Acc. to IEC 60947-4-1 & VDE 0110 (Gr. C): 1000 V.
Acc. to UL/CSA: 600 V.
Rated Impulse Withstand Voltage: 8 KV.
Degree of Protection: Acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20.

Show All Key Features

Product Specifications

Brand	ABB
Dimensions	7x14.4x15 cm
Item Code	UA75-30-00RA
Number of Contacts	3 NO
Number of Poles	3
Operating Voltage	Main Circuit: 690 V
Standards	0
Terminal Type	Screw Terminals
Ambient Temperature	Near Contactor for Operation in Free Air (0.85 - 1.1 Uc) -40 to +55deg C Near Contactor for Operation in Free Air (Uc) -40 to +70deg C Close to Contactor for Storage -60 to +80 deg C
Auxillary Contact	Auxiliary Contacts NO: 0 Auxiliary Contacts NC: 0
EAN	3471522305848
Part Number	1SBL411024R8400
Warranty	1 Year
Weight	1350 g
Country of origin	India
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Common/Generic Name	Contactor
Dimensions LxWxH	7x14.4x15 cm
Weight	1.35 kg

Show All Specifications

Product Details

Short-Circuit Protective Devices:
gG Type Fuses 200 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Maximum Electrical Switching Frequency:
240 cycles per hour

Rated Control Circuit Voltage (U_c):
50 Hz 110 V
60 Hz 110 ... 120 V
Coil Consumption:
Average Holding Value 50 / 60 Hz 18 V·A
Average Holding Value 50 / 60 Hz 5.5 W
Average Holding Value 50 Hz 18 V·A
Average Holding Value 50 Hz 5.5 W
Average Holding Value 60 Hz 18 V·A
Average Holding Value 60 Hz 5.5 W
Average Pull-in Value 50 Hz 180 V·A
Average Pull-in Value 60 Hz 210 V·A

Connecting Capacity Main Circuit:
Rigid Cable 6 ... 16 mm²
Flexible with Cable End 6 ... 10 mm²
Connecting Capacity Auxiliary Circuit:
Rigid Cable 1 ... 4 mm²
Flexible with Cable End 0.75 ... 2.5 mm²

Connecting terminals (delivered in open position) Main poles: M 6 (+, -) pozidriv 2 screws with 1x (13 x 10 mm) connector

Climatic Withstand:
acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Operating Altitude Permissible:
3000 m
