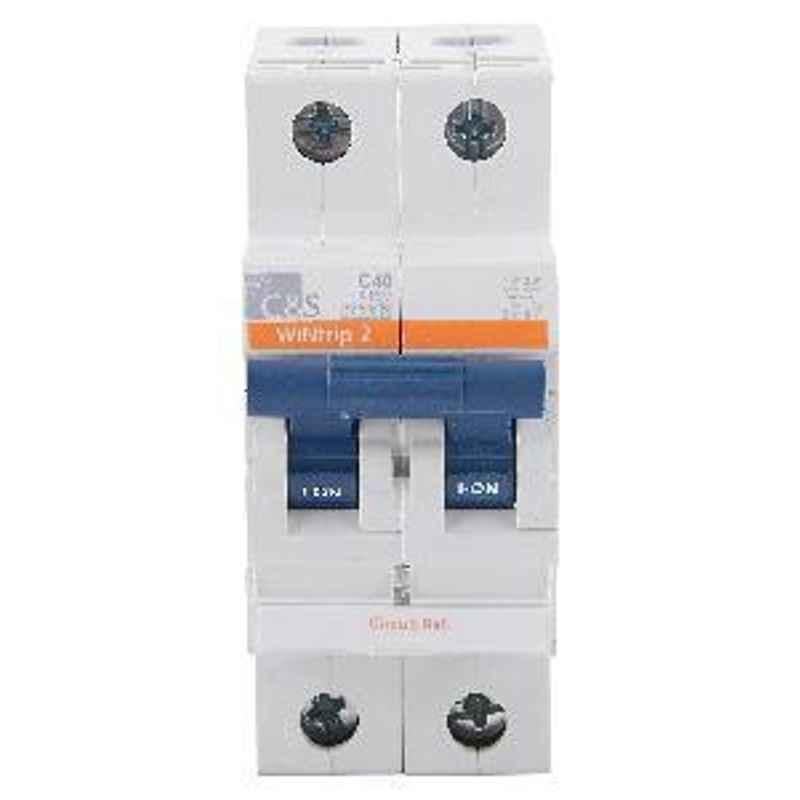

C&S CSMBS2DC6 6 A WiNtrip2 Miniature Circuit Breaker 2 Pole

₹1,096 (Incl. of all taxes)

₹928 ₹168 GST

MRP ₹1,200 8% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Compact Design.
Double Break Contacts.
Shrouded Terminal .
Bi-connect termina : Both side.
Installation Position : Vertical/Horizonta.
Mountin : Clip on Din rail (35x7.5 mm).
Standard Conformity : IS/IEC60898-1-2002..

Show All Key Features

Product Specifications

Brand	C&S
Additional Details	Resistance to Shock: 40mm free fall Impulse Power Frequency Voltage: 4 kV
Ambient Temperature	-5°C + 55°C
Breaking Capacity	10 kA
Current Rating	6 Amp
Curve Type	D-Curve
Insulation Voltage	660 V
Item Code	CSMBS2DC6
Model	WiNtrip2
Mounting type	Vertical/Horizontal (Clip on Din rail 35x7.5 mm)
Number of Poles	Two Pole
Protection Class	IP 20
Rated Voltage	240/415
Series	DC-Series
Standards	IS/IEC60898-1-2002
Terminal Size	35 mm²
Country of origin	India
Manufacturer Details	C&S Electric Ltd, C-59, Block C, Sector 80, Noida, Uttar Pradesh, +91 11 3088 7498
Packer Details	C&S Electric Ltd, C-59, Block C, Sector 80, Noida, Uttar Pradesh, +91 11 3088 7498
Common/Generic Name	MCB
Dimensions LxWxH	6x4x10 cm
Weight	33 g

Show All Specifications

Product Details

C&S CSMBS2DC6 6 A WiNtrip2 Miniature Circuit Breaker 2 Pole is a premium quality product from C&S . Moglix is a well-known ecommerce platform for qualitative range of Circuit Breakers & Fuses. All C&S CSMBS2DC6 6 A WiNtrip2 Miniature Circuit Breaker 2 Pole are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture C&S CSMBS2DC6 6 A WiNtrip2 Miniature Circuit Breaker 2 Pole, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. C&S products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of C&S Circuit Breakers & Fuses .
