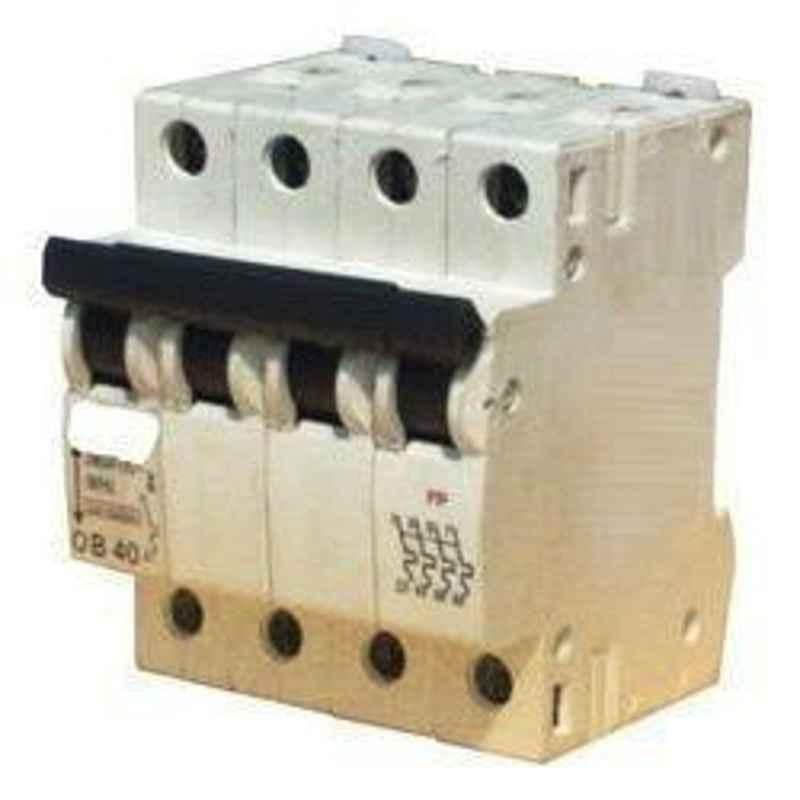

c&s electric CSMBS4C6 20 A Four Pole Miniature Circuit Breaker MCB

Name: c&s electric CSMBS4C6 20 A Four Pole Miniature Circuit Breaker MCB
Brand: C&S Electric
SKU: MSNNKQGL8E7Z9X
Price: 2004 INR
Availability: OutOfStock

₹2,004 (Incl. of all taxes)

₹1,698 ₹306 GST

MRP ₹2,250 10% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Trip Free Mechanism . Padlocking Facility . High Terminal Capacity with Deep Serrations . Low Power Consumption . Effective Air Circulation Around Individual Poles..

Product Specifications

Brand	C&S Electric
Additional Details	Energy Limiting Class 3 Resistance to Shock: 40mm free fall Impulse Withstand Voltage: 4000 V Magnetic Trip: 5-10 lnch
Ambient Temperature	-5?C to +55?C
Breaking Capacity	10 kA
Current Rating	20 A
Curve Type	C-Curve
Customer Care Number	1800-572-2012
Frequency	50/60 Hz
Housing Material	Thermoplastic
Insulation Voltage	660 V
Model	CSMBS4C6
Mounting type	Vertical/Horizontal (Clip on DIN Rail)
Number of Poles	Four Pole
Protection Class	IP-20
Rated Voltage	240/415 V
Standards	IS/IEC60898-1-2002
Terminal Size	35 Sqmm
Country of origin	India
Manufacturer Details	ARIHANT ELECTRO LIGHT, 1473, ground floor, vaidyas no khancho near parbadi, mamunayak ni pole, gandhi road , Ahmedabad. , Ahmedabad, Gujarat-380001, India , Phone: +91-8448233444
Packer Details	ARIHANT ELECTRO LIGHT, 1473, ground floor, vaidyas no khancho near parbadi, mamunayak ni pole, gandhi road , Ahmedabad. , Ahmedabad, Gujarat-380001, India , Phone: +91-8448233444
Common/Generic Name	MCB
Dimensions LxWxH	20x80 mm
Weight	33 g

Show All Specifications

Product Details

c&s electric CSMBS4C6 20 A Four Pole Miniature Circuit Breaker MCB is a premium quality product from C&S Electric . Moglix is a well-known ecommerce platform for qualitative range of Circuit Breakers & Fuses. All c&s electric CSMBS4C6 20 A Four Pole Miniature Circuit Breaker MCB are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture c&s electric CSMBS4C6 20 A Four Pole Miniature Circuit Breaker MCB, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. C&S Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of C&S Electric Circuit Breakers & Fuses .
