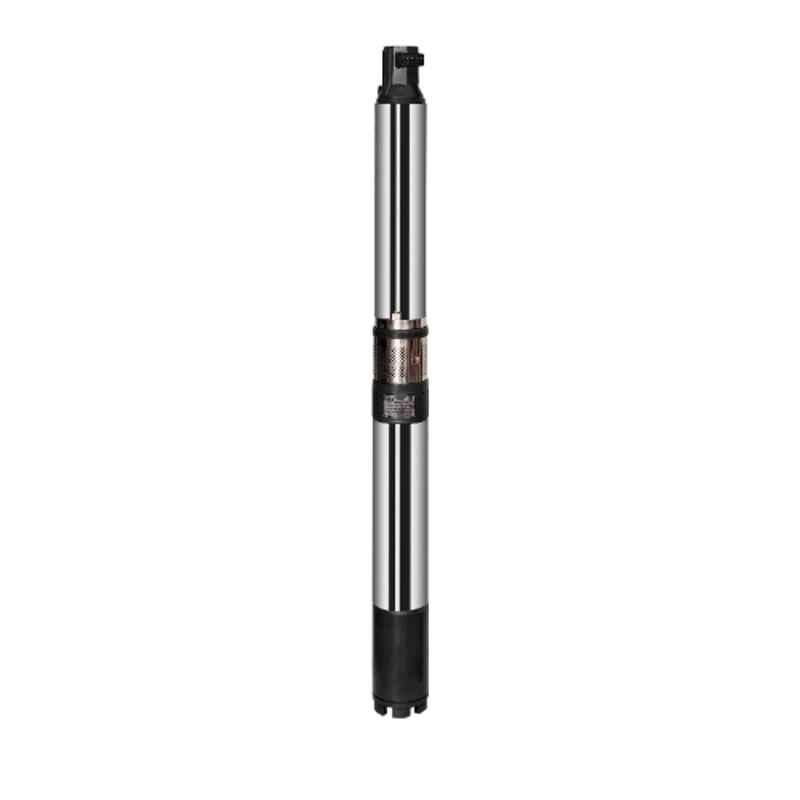

Coach V4 2HP 4 inch 20 Stage Cast Iron Single Phase Water Filled Borewell Submersible Pump

Name: Coach V4 2HP 4 inch 20 Stage Cast Iron Single Phase Water Filled Borewell Submersible Pump
Brand: Coach
SKU: MSNM9XYWWQRDKJ
Price: 19693 INR
Availability: OutOfStock

₹19,693 (Incl. of all taxes)

₹16,688 ₹3,005 GST

MRP ₹22,450 12% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Easily Rewindable & Dismountable.
Noiseless & Vibration Free Operation.
Wet Type & Water Cooled Rewindable Motor.
High Operating Efficiency & Low Power Consumption.
The Motor is Designed to Start at Low Voltage & Withstand Wide Voltage Fluctuations.
All Pumps are Equipped with Non-Return Valve to Reduce Water Hammer & Friction Losses.
Copper Rotor, High Quality Stamping, High Quality Bearing, Highly Grade Stainless Steel Material Used in Motor & Pump Body.

Show All Key Features

Product Specifications

Brand	Coach
Delivery Size	32 mm
Motor Power	2 HP
Power Rating	1.5 kW
Suction Size	100 mm
Body Material	Cast Iron
Head Range	180 ft
Motor Cooling Type	Water Filled
Mounting type	Vertical
Number of Stages	20
Series	V4
Additional Details	Sleeve & Couple: Stainless Steel Pump Bush: NR/LTB 4 Counter Bush: LTB-4 Diaphragm: High Nitrile Rubber Oil Seal: Nitrile Rubber Motor Bush: LTB-4/Teflon Thrust Bearing Assembly: Stainless Steel & Teflon Bowl: Noryl
Applications	Sprinkler & Drip Irrigation, Civil & Industries, Firefighting System, Agriculture, Buildings, Hospitals & Hotels
Frequency	50-60 Hz
Impeller Material	Noryl
Number of Phases	Single Phase
Shaft Material	Stainless Steel
Suction Material	Cast Iron
material grade	410
Country of origin	India
Manufacturer Details	Coach International Technique Private Limited, Nr. Gathaman Patiya, Ahmedabad Highway, Palanpur, Banaskantha, Gujarat-385001
Packer Details	Coach International Technique Private Limited, Nr. Gathaman Patiya, Ahmedabad Highway, Palanpur, Banaskantha, Gujarat-385001
Common/Generic Name	Submersible Pump
Dimensions LxWxH	22x80x22 cm
Weight	25 kg

Show All Specifications

Product Details

The Coach V4 2HP 4 inch 20 Stage Cast Iron Single Phase Water Filled Borewell Submersible Pump is a powerful and efficient solution for all your water pumping needs. This submersible pump is specially designed for borewell applications and is capable of delivering water from a depth of up to 180 ft. With a motor cooling type of water-filled, this pump ensures optimal performance and longevity.

Thanks to its versatile applications, this submersible pump can be used for various purposes including sprinkler and drip irrigation, civil and industries, firefighting systems, agriculture, buildings, hospitals, and hotels. It is a reliable and durable option for both residential and commercial use.

The Coach V4 Submersible Pump features a suction size of 100 mm, allowing for efficient water intake. Its vertical mounting type ensures easy installation and saves space. Crafted from high-quality cast iron, this pump guarantees sturdiness and long-lasting performance.

Equipped with a 2 HP motor, this submersible pump delivers high power and efficiency. Its compact design and superior performance make it a top choice for a wide range of water pumping applications. Choose the Coach V4 2HP 4 inch 20 Stage Cast Iron Single Phase Water Filled Borewell Submersible Pump for reliable and efficient water pumping solutions.
