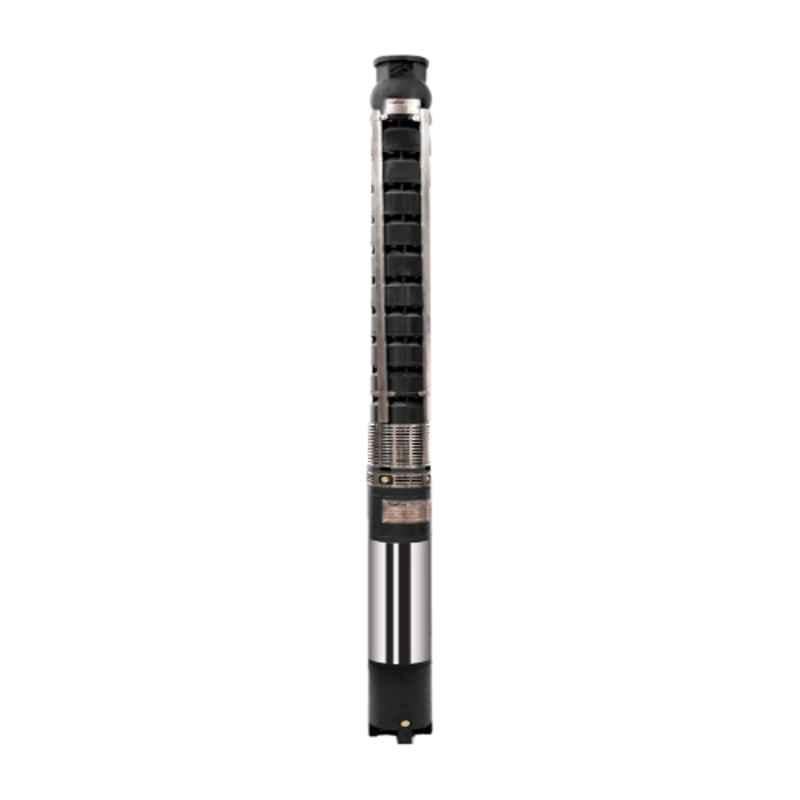

Coach V6 7.5HP 6 inch 4 Stage Cast Iron Three Phase Water Filled Borewell Submersible Pump

Name: Coach V6 7.5HP 6 inch 4 Stage Cast Iron Three Phase Water Filled Borewell Submersible Pump
Brand: Coach
SKU: MSN153V33R1YK3
Price: 44299 INR
Availability: OutOfStock

₹44,299 (Incl. of all taxes)

₹37,541 ₹6,758 GST

MRP ₹50,500 12% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

The Motors are Designed to Start at Low Voltage & to Work Under Wide Voltage Fluctuation.
All Pumps are Equipped with a Reliable Non-Return Valve for Reducing Water Hammer & Friction Loss.
High Operating Efficiency of the Pump Set Results in a High Rate of Water Discharge & Less Power Consumption.
Specially Designed Thrust Bearing to Withstand High Axial Load Smooth Surface Finish Results in Low Friction Loss.
Copper Rotor, High Quality Stamping, High Quality Bearing, Graded Casting Material & Highly Performance Stainless Steel Impeller.
All the Dynamically Balanced Rotating Components & Assemblies Ensure a Long Bearing Life & a Vibration-Free Smooth Operation.
Less Maintenance Works Due to Water-Lubricated Bearing, Wet Type Water Cooled Rewindable Motor & Long Life Due to Sturdy Construction.

Show All Key Features

Product Specifications

Brand	Coach
Delivery Size	32 mm
Motor Power	7.5 HP
Power Rating	5.625 kW
Suction Size	150 mm
Body Material	Cast Iron
Head Range	280 ft
Motor Cooling Type	Water Filled
Mounting type	Vertical
Number of Stages	4
Series	V6
Additional Details	Sleeve & Couple: Stainless Steel Pump Bush: NR/LTB 4 Counter Bush: LTB-4 Diaphragm: High Nitrile Rubber Oil Seal: Nitrile Rubber Motor Bush: LTB-4/NR Thrust Bearing Assembly: Stainless Steel & Carbon Motor Body: SS-202 Bowl: Stainless Steel/Cast Iron Housing Set: Casting Iron Motor Base: Cast Iron
Applications	Sprinkler & Drip Irrigation, Civil & Industries, Firefighting System, Agriculture, Buildings, Hospitals & Hotels
Impeller Material	Stainless Steel
Number of Phases	Three Phase
Shaft Material	Stainless Steel
Suction Material	Cast Iron
material grade	410
Country of origin	India
Manufacturer Details	Coach International Technique Private Limited, Nr. Gathaman Patiya, Ahmedabad Highway, Palanpur, Banaskantha, Gujarat-385001
Packer Details	Coach International Technique Private Limited, Nr. Gathaman Patiya, Ahmedabad Highway, Palanpur, Banaskantha, Gujarat-385001
Common/Generic Name	Submersible Pump
Dimensions LxWxH	140x50x30 cm
Weight	43 kg

Show All Specifications

Product Details

Introducing the Coach V6 7.5HP 6 inch 4 Stage Cast Iron Three Phase Water Filled Borewell Submersible Pump, a reliable and efficient solution for all your water pumping needs. This submersible pump is specifically designed for various applications including sprinkler and drip irrigation, civil and industries, firefighting systems, agriculture, buildings, hospitals, and hotels. With its powerful motor power of 7.5 HP, it is capable of delivering exceptional performance and consistent water flow.

The Coach V6 Submersible Pump boasts a head range of 280 ft, ensuring that water can be pumped up from great depths with ease. Its motor cooling type is water-filled, allowing for optimal heat dissipation and preventing overheating. This ensures a longer lifespan and increased durability of the pump.

With a suction size of 150 mm, the Coach V6 Pump can effectively draw water from various sources. Its vertical mounting type makes it easy to install and ensures stability during operation. Made with high-quality cast iron, the suction material provides excellent durability and resistance to corrosion.

In conclusion, the Coach V6 Submersible Pump is a top-of-the-line product that combines power, efficiency, and durability. Perfect for various applications, it is a reliable choice for any water pumping needs. Trust Coach, a brand known for its exceptional quality and performance, to deliver the best submersible pumps in the market.
