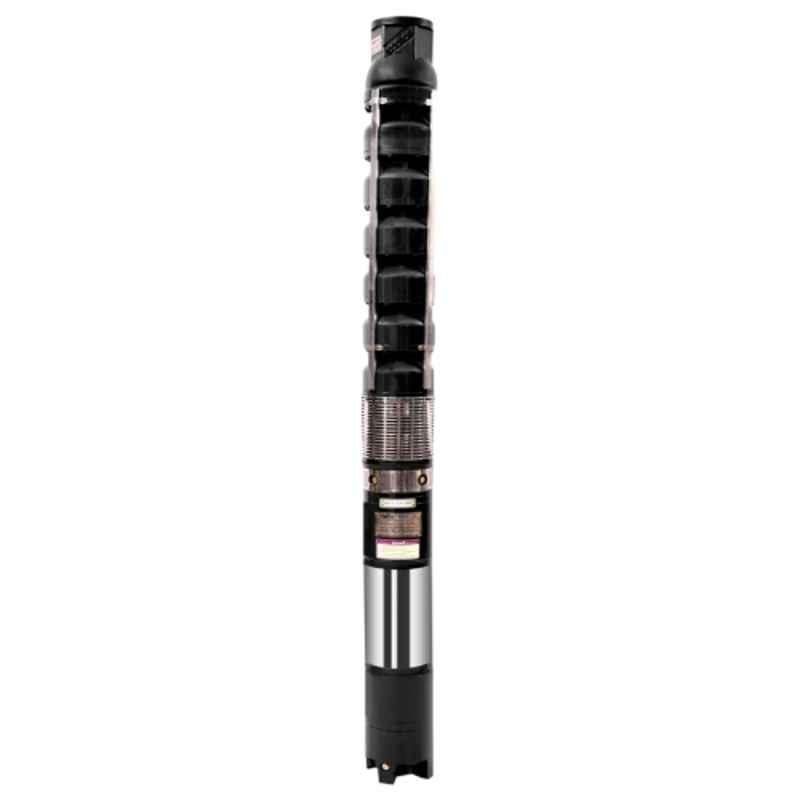

Coach V8 20HP 8 inch 4 Stage Cast Iron Three Phase Water Filled Borewell Submersible Pump

Name: Coach V8 20HP 8 inch 4 Stage Cast Iron Three Phase Water Filled Borewell Submersible Pump
Brand: Coach
SKU: MSNO5WN77RJW51
Price: 86405 INR
Availability: OutOfStock

₹86,405 (Incl. of all taxes)

₹73,224 ₹13,181 GST

MRP ₹98,500 12% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Long Life Due to Sturdy Construction.
Wet Type Water Cooled Rewindable Motor.
Smooth Surface Finish Results in Low Friction Loss.
Less Maintenance Works Due to Water Lubricated Bearing.
Specially Designed Thrust Bearing to Withstand High Axial Load.
The Motors are Designed to Start at Low Voltage & to Work Under Wide Voltage Fluctuation.
All Pumps are Equipped with a Reliable Non-Return Valve for Reducing Water Hammer & Friction Loss.
High Operating Efficiency of the Pump Set Results in a High Rate of Water Discharge & Less Power Consumption.
Copper Rotor, High Quality Stamping, High Quality Bearing, Graded Casting Material & Highly Performance Stainless Steel Impeller.
All the Dynamically Balanced Rotating Components & Assemblies Ensure a Long Bearing Life & a Vibration-Free Smooth Operation.

Show All Key Features

Product Specifications

Brand	Coach
Delivery Size	32 mm
Motor Power	20 HP
Power Rating	15 kW
Suction Size	200 mm
Body Material	Cast Iron
Head Range	400 ft
Motor Cooling Type	Water Filled
Mounting type	Vertical
Number of Stages	4
Series	V8
Additional Details	Sleeve & Couple: Stainless Steel Pump Bush: NR/LTB 4 Counter Bush: LTB-4 Diaphragm: High Nitrile Rubber Oil Seal: Nitrile Rubber Motor Bush: LTB-4/NR Thrust Bearing Assembly: Stainless Steel & Carbon Motor Body: Stainless Steel (202) Bowl: Stainless Steel/Cast Iron Motor Base & Housing Set: Casting Iron/Stainless Body Body
Applications	Sprinkler & Drip Irrigation, Civil & Industries, Firefighting System, Agriculture, Buildings, Hospitals & Hotels
Impeller Material	Stainless Steel
Number of Phases	Three Phase
Shaft Material	Stainless Steel
Suction Material	Cast Iron & Stainless Steel
material grade	410
Country of origin	India
Manufacturer Details	Coach International Technique Private Limited, Nr. Gathaman Patiya, Ahmedabad Highway, Palanpur, Banaskantha, Gujarat-385001
Packer Details	Coach International Technique Private Limited, Nr. Gathaman Patiya, Ahmedabad Highway, Palanpur, Banaskantha, Gujarat-385001
Common/Generic Name	Submersible Pump
Dimensions LxWxH	180x68x65 cm
Weight	80 kg

Show All Specifications

Product Details

Introducing the Coach V8 20HP 8 inch 4 Stage Cast Iron Three Phase Water Filled Borewell Submersible Pump, perfect for all your submersible pump needs. This high-quality pump is designed to provide efficient water delivery for a variety of applications. With a head range of 400 ft, it can easily handle any irrigation, firefighting, or industrial needs. The water-filled motor cooling type ensures optimal performance and durability. The Coach V8 is ideal for use in sprinkler and drip irrigation systems, civil and industrial projects, agriculture, buildings, hospitals, and hotels. Featuring a suction size of 200mm and a vertical mounting type, this pump is easy to install and maintain. The suction material is made of cast iron and stainless steel for maximum longevity. With a motor power of 20 HP, this submersible pump delivers exceptional performance and efficiency. Choose Coach for reliable water solutions.
