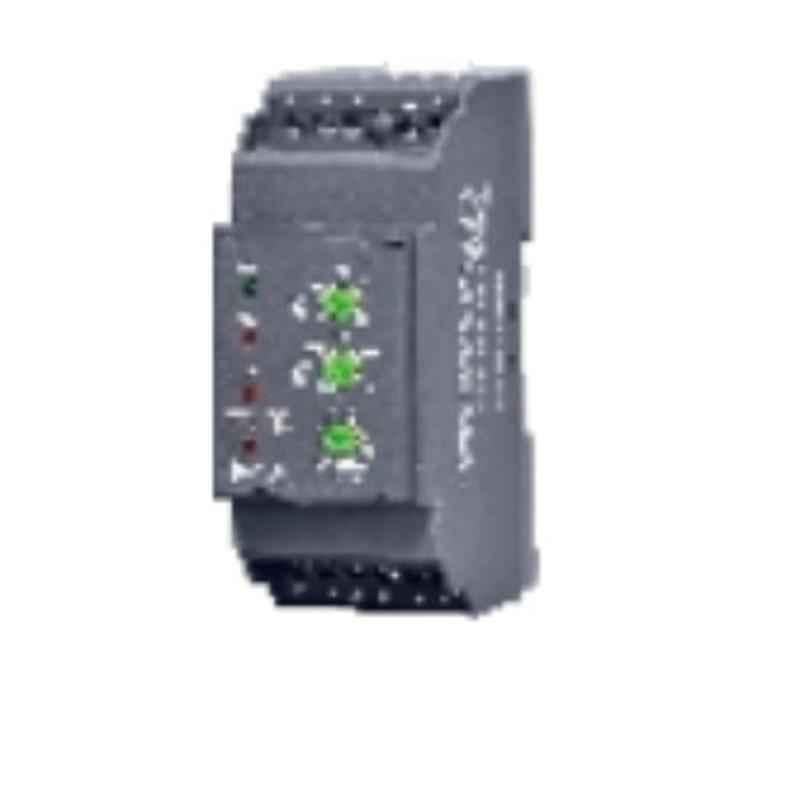

L&T SM500 415 VAC Single Phase 4 Wire 2 C/O Voltage Monitoring Relay, MAC04 D0100

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	L&T
Additional Details	Asymmetry: 94 V AC
Customer Care Number	1800 102 5963
Item Code	MAC04 D0100
No of Contacts	2 C/O
Notes	Images are reference purpose only. Actual product may be differ as per shown images
Number of Phases	Single
Series	SM500
Time Delay	On Delay: 5 sec Off Delay: 5 sec 500ms-1 sec for Neutral fail
Type	Supply Monitoring: SPP+Selectable UV+Selectable OV With Neutral Loss Protection
Voltage	415 V AC
Wire Type	4
Manufacturer Details	L&T Electrical & Automation, 7th Floor, TC-II, Tower B, Prima Bay, Gate No.5, Saki Vihar Road, Powai, Mumbai-400072, Maharashtra, India
Packer Details	L&T Electrical & Automation, 7th Floor, TC-II, Tower B, Prima Bay, Gate No.5, Saki Vihar Road, Powai, Mumbai-400072, Maharashtra, India
Common/Generic Name	Monitoring Relay
Dimensions LxWxH	14x10x6 cm
Weight	17 g

Show All Specifications

Product Details

L&T SM500 415 VAC Single Phase 4 Wire 2 C/O Voltage Monitoring Relay, MAC04 D0100 is a premium quality product from L&T . Moglix is a well-known ecommerce platform for qualitative range of Electronic Timer Relay. All L&T SM500 415 VAC Single Phase 4 Wire 2 C/O Voltage Monitoring Relay, MAC04 D0100 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture L&T SM500 415 VAC Single Phase 4 Wire 2 C/O Voltage Monitoring Relay, MAC04 D0100, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. L&T products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of L&T Electronic Timer Relay .
