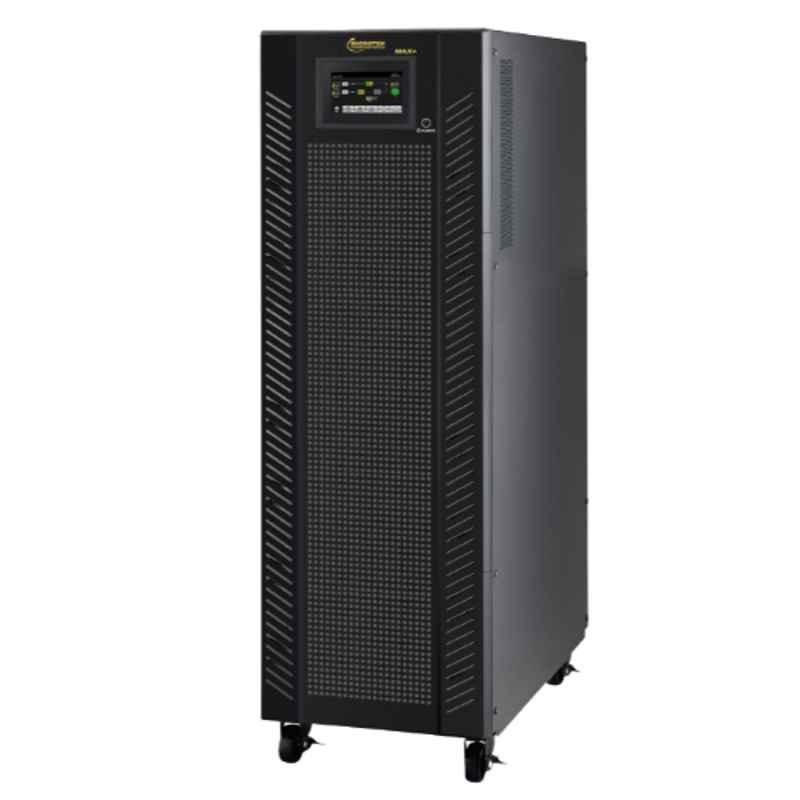

Microtek HF Supermax Plus 40kVA 384V IGBT Based Pure Sine Wave Online UPS with Touch Panel LCD Display, 899-430-4002
(10 Reviews)
₹349,240 (Incl. of all taxes)
₹295,966 ₹53,274 GST
MRP ₹480,990 27% OFF
Moglix Insights
About This Product
Key Features
Unity Output Power Factor.
DSP Technology with LGBT Based Pfc & Inverter Section.
Display for Real Time Information.
Active Power Factor Correction In All Phases.
Eco Mode Operation for Energy Saving (Eco).
Emergency Power Off Function (Epo).
Emi Protection Available (C3-Level).
3 Level LGBT Inverter Topology Design Maximizes Efficiency.
3 Stage Extendable Charging Design for Optimized Battery Performance.
Surge Protection Available at Input.
Adjustable Battery Number (40 Numbers) for Long Run Model, Built-In Maintenance Bypass & Static Bypass Switches & Generator Compatible.
Show All Key Features
Product Specifications
Brand | |
Capacity | 40 kVA |
Technology | Pure Sinewave |
Additional Details | Emergency Power Off Function (EPO). EMI Protection Available (C-3 Leval). 3 Leval IGBT inverter Topology & 3 Stage Extendable Charging |
Battery Type | VRLA / LEAD-ACID TYPE |
Charging Current | 12 A Maximum, Adjustable = 1 A To 12 A, Factory Setting = 4 A |
Charging Voltage | +/-13.65 VxN (N=16-20) |
Customer Care Number | 7283838383 |
DC Voltage | Default: 192 V DC (32 Battery) Adjustable: 240 V DC (40 Battery) |
Dimensions | 30x81.5x100 cm |
Display | 4.3 inch |
Display Type | LCD |
Efficiency | Ac Mode: 95.5% / Eco Mode: 98.5%, Battery Mode: 94.5% |
Frequency Range | Input: 46-54 Hz or 56-64 Hz Output: 46-54 Hz or 56/64 Hz (Synchronized Range) 50Hz + 0.1 Hz or 60 Hz + 0.1 Hz (Battery Mode) |
Indication | UPS status, Load Percentage, Load Amperes on each phase, Output VA & Output Wattage per Phase, Battery Leval (Charging Ampere & Discharging Ampere), Input/Output Voltage (Phase to Neutral & Phase to Phase Voltage Information), Input/Output Frequency, Input Line Current per Phase, Input VA & Input Wattage Per Phase, Temperature Information & Data Log Events |
Item Code | 899-430-4002 |
Noise Level | Less than 65 dBA at 1 m/Ip-20 |
Nominal Voltage | Input: 3x400 V AC (3Ph+N) Output: 3x360/380/400/415 V AC (3Ph-N) |
Number of Batteries | Default: 32 Nos. - Adjustable: 40 Nos |
Operating Humidity | 95% & Non-Condersing |
Operating System | Windows at 2000/2003/XP/Vista/2008/7/8/10 Linux & Mac |
Operating Temperature | 0-40 deg C |
Overload Capacity | Output: Ac Mode: (100%-110% : 60 min) (110%-125%: 10min) (125%-150%: 1 min) >150%: Immediately BATTERY MODE:(100%-110%:60 min) (110%-125%: 10 min) (125%-150%: 1 min) >150%: Immediately |
Phase | 3 Phase in - 3 Phase Out |
Power | 40 kW |
Power Factor | Input: > 0.99 at 100% Load |
Series | SUPERMAX Plus |
Total Harmonic Distortion | <4% at 100% R-Load, <5% at 100% RCD Load at 230 V AC <6% at 50% R-Load, <12% at 50% RCD Load at 230 V AC Output: < 2% THD (Linear Load): < 5% THD (Non-Linear Load) |
Voltage | 190-520 V AC (3 Phase) at 50% Load 305-478 V AC (3 Phase) at 100% Load |
Weight | 61 kg |
Country of origin | India |
Manufacturer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Packer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Common/Generic Name | UPS |
Dimensions LxWxH | 27x24x12 cm |
Weight | 61 kg |
Show All Specifications
Product Details
The Microtek HF Supermax Plus 40kVA 384V IGBT Based Pure Sine Wave Online UPS with Touch Panel LCD Display is a top of the line inverter and UPS that is very much suitable for your home. With a touch panel LCD display, this unit is easy to use and comes with a variety of features that make it a must have for any home. The Microtek 40 kVA home inverter and UPS is a great appliance for those who need a reliable power source. It is reasonably priced and very high quality, making it a great value for your money. It weighs 61 kg and its dimensions are 30x81.5x100 cm.
Browse through the extensive list of Home Inverter & UPS at Moglix. Shop online for other Microtek Home Inverter & UPS. available at Moglix in the lowest price range.
