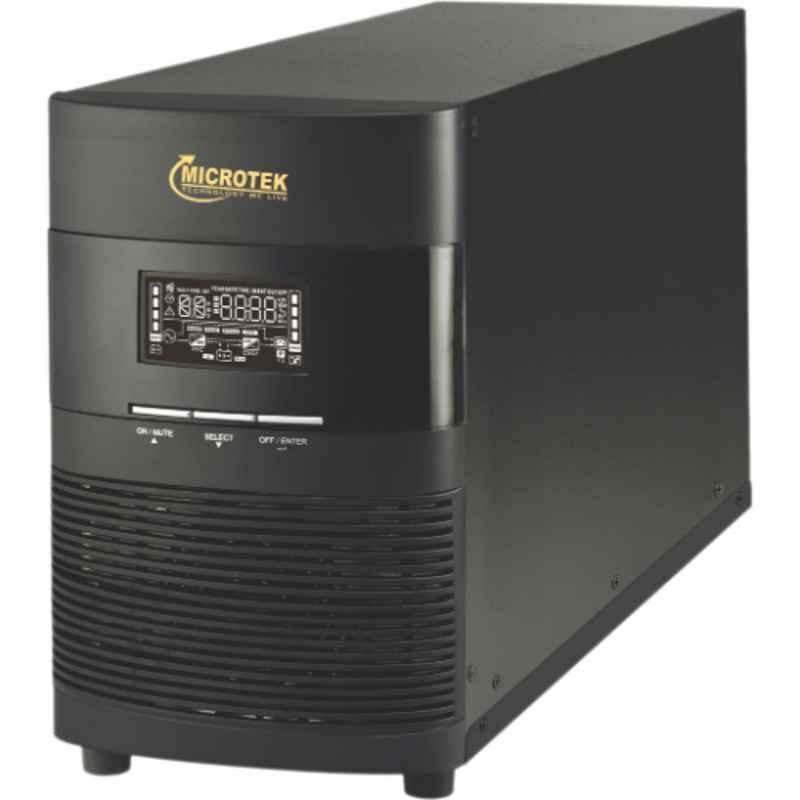

Microtek IB MAX Plus NM72MX3KK11-IB 3kVA 72V Pure Sine Wave Online UPS, 899-121-3001
₹36,819 (Incl. of all taxes)
₹31,202 ₹5,617 GST
MRP ₹47,738 22% OFF
Moglix Insights
About This Product
Key Features
High End IGBT Based.
EMI/RFI Noise Filter.
SNMP Card Slot (Optional).
Advanced PFC Technology.
Wide Input Voltage Range.
High End Micro Controller Based.
Advanced Battery Management.
Over Temperature Protection.
LCD/LED Display Simultaneously.
Isolation Transformer (Optional).
Protection From Dc Fan Failure.
Static Bypass Enable or Disable.
Different Output Voltage Settings.
In-built Over Voltage Cut-off Device.
Short Circuit & Overload Protection.
Automatic Battery Charging In UPS Off Mode.
Outlets Programmable & Non Programmable.
Generator Compatible (Supplying Sinewave Voltage).
Smart Rs232 Communication with Monitoring Software.
High Frequency & Double Conversion Online Technology.
Specially Designed to Suit Indian Power & Environment Conditions.
Output Frequency Fixed At 50hz or can be Synchronized with Input Frequency.
Battery Life Save.
Emergency Power Supply.
Provides Surgical Protection.
Protects The Voltage Sensitive Device From Bad Electricity.
Show All Key Features
Product Specifications
Brand | |
Capacity | 3 kVA |
Charging Current | 1.5 Amp |
Customer Care Number | 7283838383 |
DC Voltage | 72 V(7 Ah x 6 Nos. Battery Inside) |
Dimensions | 19x42.1x31.8 cm |
Efficiency | 85-92% |
Frequency Range | Input: 40-70 Hz |
Indication | Display: LCD |
Input Voltage | Load <50 %: 118-295 V (± 5 V) Load > 50 %: 160-295 V (± 5 V) |
Interface | RS232 & SNMP (Optional) |
Item Code | 899-121-3001 |
Model | NM72MX3KK11-IB |
Noise Level | Less Than 53 dBa at 1 m (with Fan Speed Control) |
Notes | Unboxing Video is Mandatory in Case of all Exchanges & Returns |
Output Frequency (Hz) | Synchronized Range: 47-53 Hz Or 57-63 Hz Battery Mode: 50 Hz ± 0.1 Hz Or 60 Hz ± 0.1 Hz |
Output Power | 2700 W |
Output Voltage | 208, 220, 230 & 240 V AC |
Output Waveform | Pure Sinewave |
Phase | Single with Ground |
Power Factor | Full Load: > 0.99 |
Protection | Short Circuit: 5 Cycles Turn Off Inverter, No Transfer to Bypass, Provide Alarm (AC Mode), 5 Cycles Turn Off Inverter, Provide Alarm(Battery Mode) & Input Fuse Blown or Breaker Action |
Series | IB MAX Plus |
Suitable For | Office & Home |
Total Harmonic Distortion | Linear Load: ≤2 % Non Linear Load: ≤4 % |
Weight | 27 kg |
Country of origin | India |
Manufacturer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Packer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Common/Generic Name | UPS |
Dimensions LxWxH | 19x42.1x31.8 cm |
Weight | 27 kg |
Show All Specifications
Product Details
A power backup can save you a lot of trouble, as power cuts are really uncertain. Microtek IB MAX Plus NM72MX3KK11-IB 3kVA 72V Pure Sine Wave Online UPS, 899-121-3001 is an amazing product for domestic use. This product can easily run fans, laptops, LED TV, lights, mixer grinder, personal computers, refrigerators, and much more. The output voltage of this product is 208, 220, 230 & 240 V AC. And the input voltage is Load <50 %: 118-295 V (� 5 V)||Load > 50 %: 160-295 V (� 5 V). This product covers very little space so that it is not a hurdle. The dimensions of this product is 19x42.1x31.8 cm. Above all this inverter just weighs 27 kg. The digital display of this inverter will help you with easy monitoring.
Browse through the extensive list of Home Inverter & UPS at Moglix. Shop online for other Microtek Home Inverter & UPS. available at Moglix in the lowest price range.
