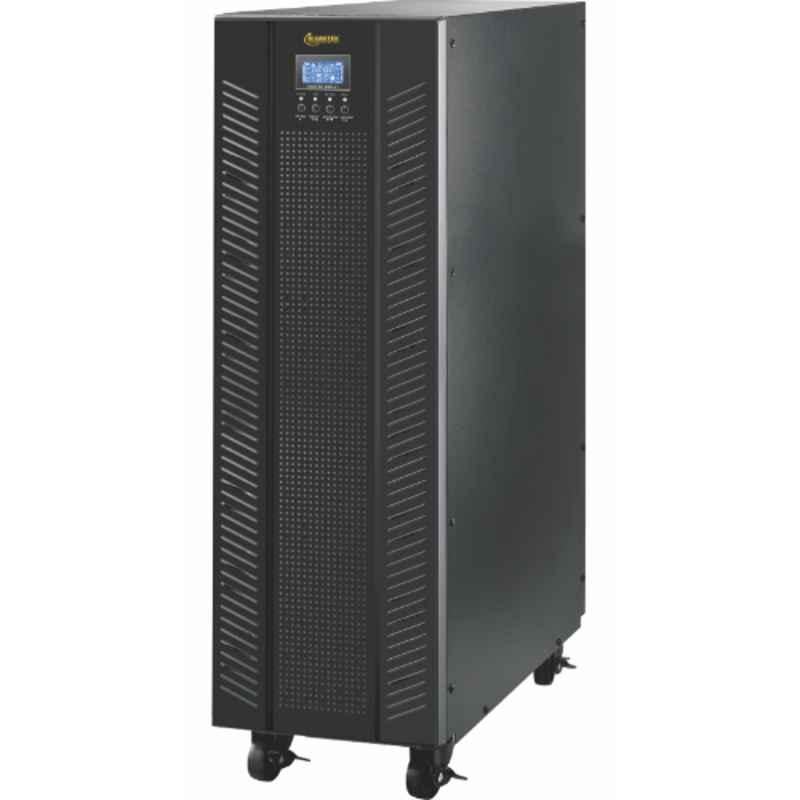

Microtek iMAXX 10kVA 192V Transformer Based Pure Sine Wave Online UPS, 899-380-0103
₹130,045 (Incl. of all taxes)
₹110,207 ₹19,838 GST
MRP ₹134,990 3% OFF
Moglix Insights
About This Product
Key Features
DSP Technology with LGBT Based Inverter.
Smart Display for Real-Time Information.
Cvcf (Constant Voltage Constant Frequency) Operational Without Battery.
Adjustable Battery Number (29, 30, 31 & 32 Numbers) In All 360 V Models.
Immune to Reverse Phase Sequence & No Neutral Operation.
Built-In Maintenance Bypass & Static Bypass Switches.
Configurable Output Voltage Setting & Input Filter for Power Factor 0.9 (Optional) Available.
Conformal Coated Pcb Assemblies to Withstand Harsh Environment & Inbuilt Charger of 20 Amps, Parallel Redundancy & Battery Reverse Protection In All 360 V Models.
Alarm for Mute Mode & Snmp Card (Optional), Over Temperature Indication & Protection.
Output Frequency Fixed at 50 Hz Or Can Be Synchronized with Input Frequency, Generator Compatible & Generator Capacity Required for Stand-By Source Should Be 2.5 Time of the Ups Capacity.
Show All Key Features
Product Specifications
Brand | |
Capacity | 10 kVA |
Technology | Pure Sinewave |
Battery Type | LEAD ACID / TUBULAR / SMF |
Charging Current | Battery Charging: �(Default =8A), (Adjustable = 2A, 4A, 8A) |
Customer Care Number | 7283838383 |
DC Voltage | 192 V DC |
Dimensions | 30x56.2x83 cm |
Display Type | LCD |
Efficiency | Ac Mode Efficiency: 83% Battery Mode�Efficiency: 92% |
Frequency Range | 40-55 Hz Output: Mains Mode (Syncronized Range): 45-55 Hz Battery Mode: 50-0.1 Hz |
Item Code | 899-380-0103 |
Noise Level | Less than 60 dBA at 1 m |
Nominal Voltage | Input: 3x360 V/380 V AC 400 V AC(3Ph+N+G) Output: Default: 230+1%, 208 V AC/220 V AC/230 V AC (Adjustble) |
Notes | Unboxing Video is Mandatory in Case of all Exchanges & Returns |
Number of Batteries | 16 Nos |
Operating Humidity | 0~90% (N On-Condensing) |
Operating System | Windows 2000/2003/XP/VISTA/2008/7/8, LINUX & MAC |
Operating Temperature | 0-5 deg C |
Overload Capacity | Output: 110% for 30 min, 125% for 5 min & 150% for 1 sec Static Bypass: 150% for 1 hr; 180% for 30 sec; >200% for 200 ms |
Phase | 3 Phase in - 1 Phase Out |
Power | 8 kW |
Power Factor | 0.8/3.1 |
Series | iMAXX |
Total Harmonic Distortion | Output: <3% (Linear Load) <5% (Non-Linear Load) |
Voltage | 286- 493 V AC HardWire 3 Wire (1Ph+N+G) / 220 V AC |
Weight | 115 kg |
Country of origin | India |
Manufacturer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Packer Details | Universal Power Product, Plot No. 20 & 20b, Sector-2, Parwanoo Distt : Solan Himachal Pradesh 173220, Phone: +91-8448233444 |
Common/Generic Name | UPS |
Dimensions LxWxH | 30x56.2x83 cm |
Weight | 115 kg |
Show All Specifications
Product Details
A power backup can save you a lot of trouble, as power cuts are really uncertain. Microtek iMAXX 10kVA 192V Transformer Based Pure Sine Wave Online UPS, 899-380-0103 is an amazing product for domestic use. This product can easily run fans, laptops, LED TV, lights, mixer grinder, personal computers, refrigerators, and much more. This product covers very little space so that it is not a hurdle. The dimensions of this product is 30x56.2x83 cm. Above all this inverter just weighs 115 kg. The digital display of this inverter will help you with easy monitoring.
Browse through the extensive list of Home Inverter & UPS at Moglix. Shop online for other Microtek Home Inverter & UPS. available at Moglix in the lowest price range.
