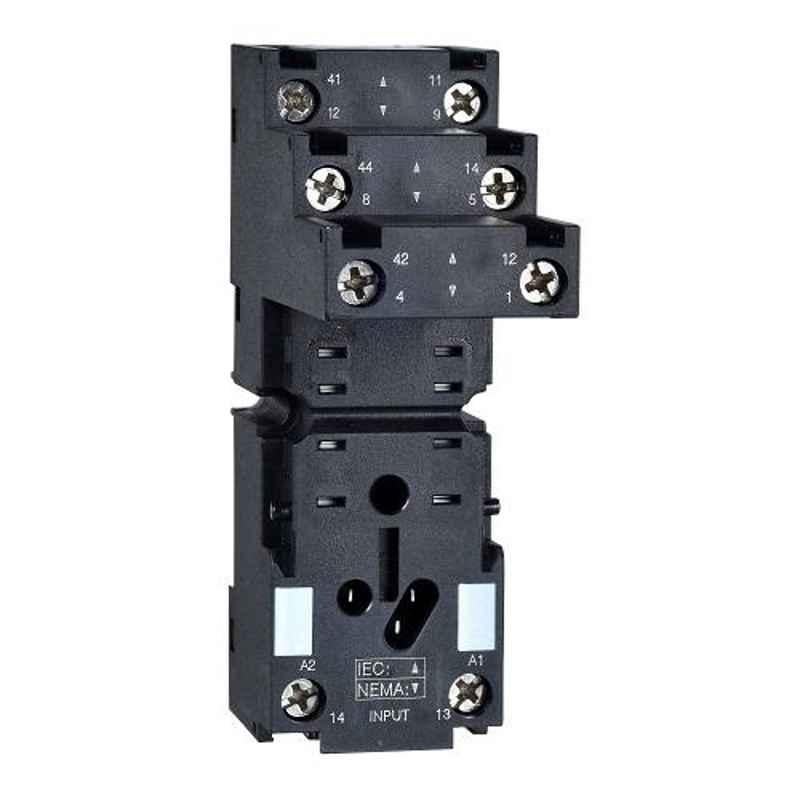

Schneider Electric 12A 250VAC RXM2 Screw Connector Timer Relay, RXZE2S108M

AVAILABLE ON REQUEST

About This Product

Key Features

Marking: CE.

Product Specifications

Brand	Schneider Electric
Ambient Temperature	Storage (Air): -40 to 85 deg C Operation (Air): -40 to 55 deg C
Certification	UL, CSA & Lloyd's
Compatibility	Plug-in Relay RXM with 2 C/O Contact Plug-in Relay REXL with 2 C/O Contact
Connections	Terminals: Connector, 2x0.5-2x1.5 mm² (AWG 20-AWG 16) Solid Without Cable End Connector, 1x0.25-1x2.5 mm² (AWG 22-AWG 17) Flexible with Cable End Connector, 1x0.5-1x2.5 mm² (AWG 22-AWG 14) Flexible with Cable End Connector, 2x0.25-2x1 mm² (AWG 20-AWG 14) Solid without Cable End
Current	Conventional Free Air Thermal: 5 Amp with Bus Jumper 12 A
Degree of Protection	IP20 Conforming to EN/IEC 60529
Dielectric Strength	2500 V
Fixing Mode	By Screw (Panel) Clip-On (35 mm Symmetrical DIN Rail)
Item Code	RXZE2S108M
Operating Temperature	Air: -40 to 55 deg C (Ambient)
Operating Voltage	Rated: < 250 V
Pins	Flat Pin
Protection Class	IP20 conforming to EN/IEC 60529
Range	Zelio Relay
Serial interface	Zelio
Shape	Pin: Flat
Standards	IEC 61984
Storage Temperature	Air: -40 to 85 deg C (Ambient)
Torque	tightening : <1 N.m for M3 Screw(s)
Type	RXM2
Voltage	Rated Operational: <250 V
Warranty	18 Months
Weight	0.058 kg
Width	27 mm
Manufacturer Details	Schneider Elecctric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi, Delhi-110064, India
Packer Details	Schneider Elecctric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi, Delhi-110064, India
Common/Generic Name	Timer Relay
Weight	58 g

Show All Specifications

Product Details

Introducing the Schneider Electric 12A 250VAC RXM2 Screw Connector Timer Relay, a reliable and efficient electronic timer relay designed to meet all your timing needs. With its sleek and compact design, this relay is perfect for a variety of applications.

Featuring a weight of just 0.058 kg, the RXM2 Screw Connector Timer Relay is lightweight and easy to handle. Its fixing mode by screw ensures a secure and stable installation, making it suitable for panel mounting.

Operating in a wide temperature range of -40 to 55 deg C (Ambient), this timer relay can withstand even the harshest conditions. Its width of 27 mm ensures it can fit seamlessly into any setup.

With its serial interface Zelio, this timer relay offers increased connectivity and control. It is part of the Zelio Relay range from Schneider Electric, renowned for its high-quality and reliable performance.

Overall, the Schneider Electric 12A 250VAC RXM2 Screw Connector Timer Relay offers unmatched accuracy and durability. It is the perfect choice for any electronic timing application.
