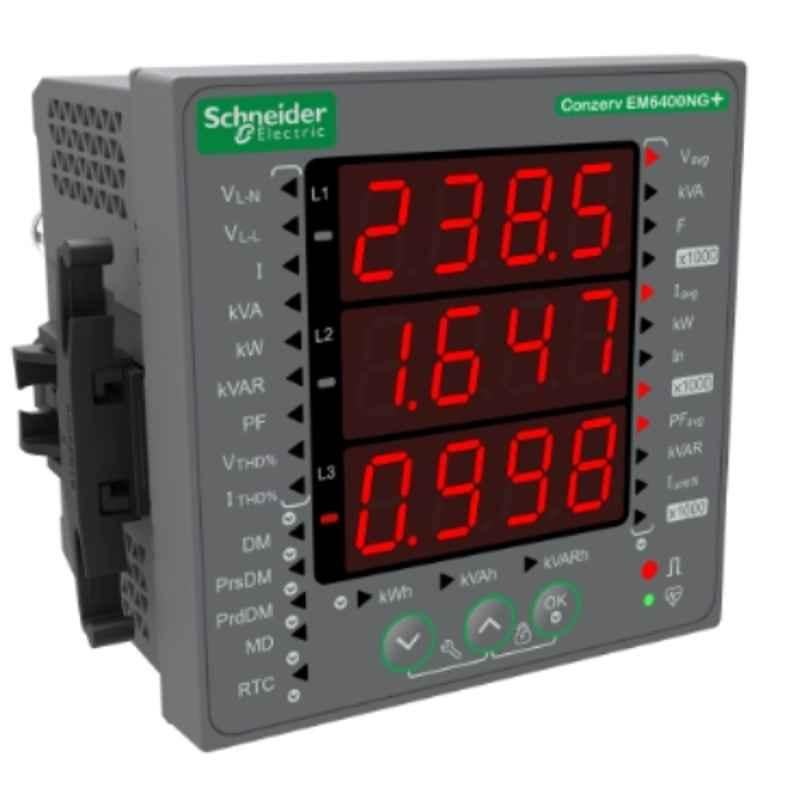

Schneider Electric 5A Class 1.0 Conzerv Power & Energy Meter

Name: Schneider Electric 5A Class 1.0 Conzerv Power & Energy Meter
Brand: Schneider Electric
SKU: MSNO5WNL1JMW51
Price: 9266 INR
Availability: OutOfStock

₹9,266 (Incl. of all taxes)

₹7,850 ₹1,416 GST

MRP ₹14,663 36% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Terminals: Screw Clamp.
Impulse Duration: 20ms.
Demand Intervals: Configurable from 1 to 60 min.
Messages Display Capacity: 3 Fields of 4 Characters.
Communication of Data: Energy Metering, Net Energy, Reading of Time-Stamped Measurements & Events & Total Energy.
Tamperproof of Settings: Protected by Access Code.
Flame Retardance: V-0 Conforming to UL 94.
Data Recording: Energy Consumption Logs.
Measurement Category: Category III 480 V & Category II 480-600 V.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Accuracy	Measurement: Current: ±0.5% Voltage: ±0.5% Power: ±0.5% Frequency: ±0.05% Power Factor: ±0.01
Accuracy Class	Class 1 Active Energy Conforming to IEC 62053-21 Class 2 Reactive Energy Conforming to IEC 62053-23 Class 5P Total Current Harmonic Distortion THD (I) Conforming to IEC 61557-12 Class 5P Total Voltage Harmonic Distortion THD (U) Conforming to IEC 61557-12
Ambient Temperature	Operation: -10 to 60 deg C Storage: -20 to 70 deg C
Certification	CE Conforming to IEC 61010-1 CULus Conforming to UL 61010-1 CULus Conforming to CSA C22.2 No 61010-1 C-Tick
Class	Electrical Insulation: Class II
Current	5 & 1 Amp Measurement: 5-6000 mA
Depth	Panel: 73 mm Outside: 13 mm
Display Colour	Red
Display Digit	12 Digits: 14.2 mm in Height
Display Type	7 Segments LED
Frequency	45-65 Hz Network: 50 Hz & 60 Hz Measurement Range: 45-65 Hz
Height	96 mm
Length	Wire Stripping: Current Circuit: 3.68 mm Voltage Circuit: 7 mm Control Circuit: 7 mm Communication: 7 mm
Material	Polycarbonate
Mounting	Mode: Flush-Mounted Support: Framework
Number of Outputs	1 Pulse
Operating Altitude	≤2000 m
Output Voltage	5-40 V DC @ 20 mA
Pole	Network: 3P, 1P+N, 2P+N, 3P+N & 2P
Pollution Degree	2
Power Consumption	6 VA at 277 V Between Phase & Neutral 2 W at 277 V
Protection Class	IP51 Front: Conforming to IEC 60529 IP30 Body: Conforming to IEC 60529
Range	Conzerv
Relative Humidity	5-95% at 50 deg C
Sampling Rate	64 Samples/Cycle
Signal Type	Current 0-12 A (Impedance 0.3 MOhm)6 x Voltage (Impedance 5 MOhm)4 x Local: Green LED: Activity Red LED: Output Signal 1-9999000 Pulse/k_h (kWh, kVAh & kVARh)
Standards	IEC 61010-1:ed. 3 UL 61010-1:ed. 3
Torque	Tightening: Current Circuit: 0.9-1 Nm Philips No 2 Screwdriver Voltage Circuit: 0.9-1 Nm Philips No 2 Screwdriver Control Circuit: 0.9-1 Nm Philips No 2 Screwdriver Communication: 0.9-1 Nm Philips No 2 Screwdriver
Type	Measurement: Current, Voltage, Frequency, Apparent Energy, Apparent Power, Active & Reactive Energy & Active & Reactive Power
Voltage	40-300 V AC Measurement: 35-480 V AC at 45-65 Hz Between Phases 35-277 V AC at 45-65 Hz Between Phase & Neutral 35-600 V AC at 45-65 Hz Between Phases 35-347 V AC at 45-65 Hz Between Phase & Neutral 600-999000 V AC at 45-65 Hz with External VT
Warranty	7 Years
Weight	600 g
Width	96 mm
Weight	600 g

Show All Specifications

Product Details

Schneider Electric 5A Class 1.0 Conzerv Power & Energy Meter is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Energy Meters. All Schneider Electric 5A Class 1.0 Conzerv Power & Energy Meter are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric 5A Class 1.0 Conzerv Power & Energy Meter, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Energy Meters .
