Is communication supported for remote monitoring?

Yes, it includes RS485 for Modbus communication.

Home
Electricals
Energy Meters
Schneider Electric Hexa EM6433H 2W Class 0.5 Energy Meter, METSEEM6433HCL05RS

Hover to Zoom

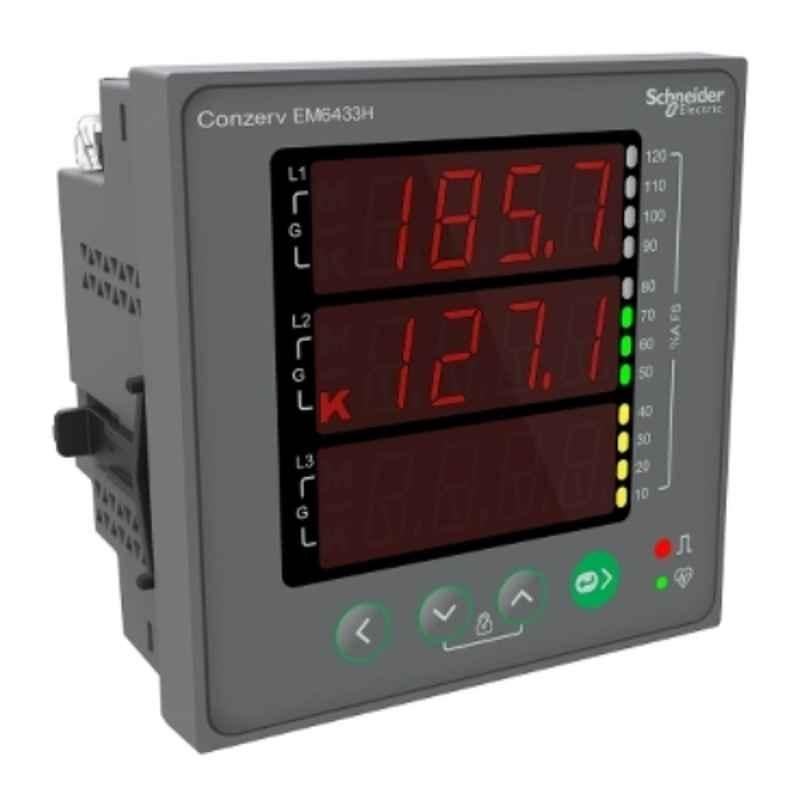

Schneider Electric Hexa EM6433H 2W Class 0.5 Energy Meter, METSEEM6433HCL05RS

Name: Schneider Electric Hexa EM6433H 2W Class 0.5 Energy Meter, METSEEM6433HCL05RS
Brand: Schneider Electric
SKU: MSNQ94PJN0QNK0
Price: 4764 INR
Availability: OutOfStock

₹4,764 (Incl. of all taxes)

₹4,033 ₹731 GST

MRP ₹10,526 54% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Offers Precise Energy Monitoring with Class 0.5 Accuracy.
Compact 2-wire Design Ensures Easy Installation & Integration.
Ideal for Commercial & Industrial Use with Reliable Long-term Performance.

Product Specifications

Brand	Schneider Electric
Current Rating	1-5 Amp
Accuracy Class	Class 2 reactive energy conforming to IEC 62053-24 Class 0.5 active energy conforming to IEC 62053-22
Certification	C-Tick CE Conforming to IEC 61010-1 CULus Conforming to UL 61010-1 CULus Conforming to CSA C22.2 No 61010-1
Class	0.5
Depth	Outside: 13 mm Panel: 49 mm
Display Colour	Red
Display Digit	12 digit(s) - 14.2 mm in height
Display Type	8 Segments LED
Frequency	50-60 Hz
Frequency Measurement Range	45-65 Hz
Height	96 mm
Installation Type	Indoor installation
Item Code	METSEEM6433HCL05RS
Life	Service: 7 Years
Material	Polycarbonate
Measurement Accuracy	Current, per-phase & average: ± 0.5 % of Reading,Voltage, L-N, L-L, per-phase & average: ± 0.5 % of Reading,Power (active and apparent): ± 1.0% for Class 1.0, ± 0.5% for Class 0.5,Power (reactive): ± 2.0 %,Power factor, per-phase & average: ± 0.01 of reading,Frequency: ± 0.05 % for F-nominal 50/ 60 Hz ± 2,± 0.2 % for Frequency range from 30 to 48 Hz, 52 to 58 Hz and 62 to 70 Hz,Active or real energy: ± 1.0% for Class 1.0, ± 0.5% for Class 0.5,Apparent energy: ± 1.0% for Class 1.0, ± 0.5% for Class 0.5,Reactive energy: Class 2.0 (± 2.0 %),THD %: ± 5 % of full scale
Measurement Current	5 to 6000 mA
Measurement Type	Current Active power Active energy
Model	EM6433H
Mounting support	Framework
Mounting type	Flush-Mounted
Number of Outputs	1 Pulse
Number of Poles	2P 3P 3P+N 2P+N 1P+N
Operating Altitude	<= 2000 m
Operating Temperature	-10 to 60 deg C
Pollution Degree	2
Ports	RS485
Power Consumption	2 W at 240 V
Protection Class	IP51 & IP30
Range	EasyLogic
Rated Voltage	44-300 V
Relative Humidity	5-95 % at 50 deg C
Sampling Rate	32 Samples/Cycle
Series	Hexa
Standards	IEC 61010-1:ed. 3 UL 61010-1:ed. 3
Storage Temperature	-20 to 70 deg C
Terminal Type	Screw Type Terminals
Type	Energy Meter
Weight	300 g
Width	96 mm
Manufacturer Details	chneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	chneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Electric Energy Meter
Dimensions LxWxH	9.5x4.5x9.6 cm
Weight	0.265

Show All Specifications

Product Details

The Schneider Electric Hexa EM6433H 2W Class 0.5 Energy Meter (METSEEM6433HCL05RS) is a high-performance, advanced metering solution designed to provide accurate and reliable measurement of electrical consumption. This compact, two-wire energy meter is specifically engineered for industrial, commercial, and residential applications where precision in energy monitoring is essential. With a Class 0.5 accuracy rating, it ensures minimal error in energy measurement, making it ideal for billing, energy management, and efficiency optimization. The meter offers versatile communication options, allowing for easy integration with building management systems (BMS) and other smart technologies. Featuring a clear LCD display, users can quickly access essential data, such as voltage, current, power, and energy consumption, facilitating real-time monitoring and analysis. Its robust design and user-friendly interface ensure seamless operation, while the compliance with global standards guarantees long-term reliability and performance. The Hexa EM6433H is the perfect solution for organizations looking to optimize energy use and achieve greater operational efficiency.
