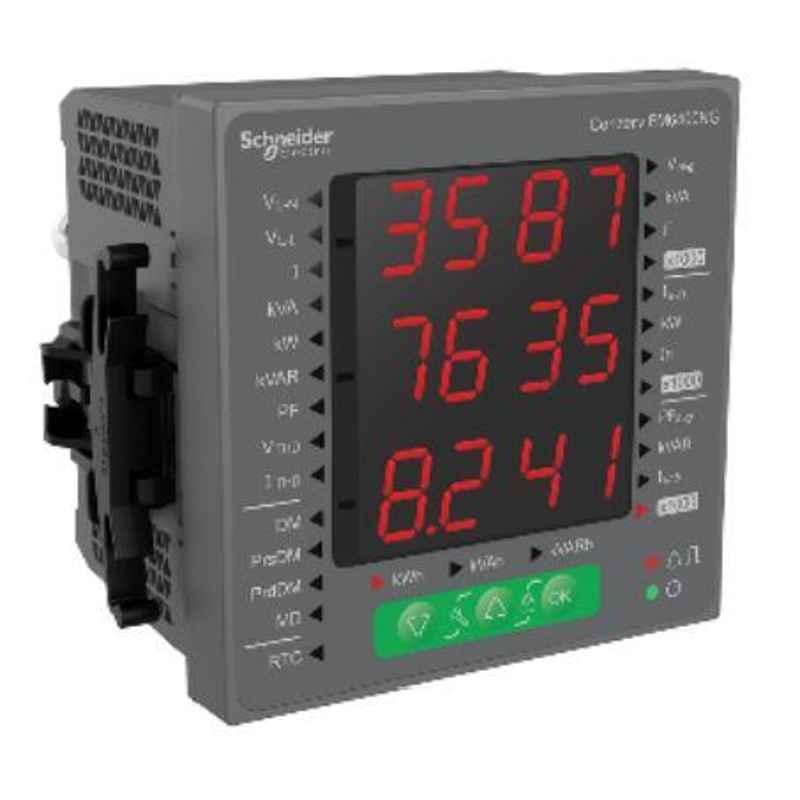

Schneider Electric Digital Power and Energy Meter without RS-485, EM6400NG

Name: Schneider Electric Digital Power and Energy Meter without RS-485, EM6400NG
Brand: Schneider Electric
SKU: MSNRKREPO0ON9N
Price: 9398 INR
Availability: OutOfStock

₹9,398 (Incl. of all taxes)

₹7,964 ₹1,434 GST

MRP ₹15,000 37% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Protected by Access Code.
Up to the 15th harmonic Power quality Analysis.
Power monitoring Device Application.
3 fields of 4 characters 3 fields of 4 characters.
Configurable from 1 to 60 min Demand Intervals.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Current Rating	5 Amp & 1 Amp
Accuracy	Current: ±0.5 % Voltage: ±0.5 % Power: ±0.5 % Frequency: ±0.05 % Power factor: ±0.01
Ambient Temperature	Operation: -10 to 60 deg C Storage: -20 to 70 deg C
Communication	Net energy Total energy Reading of time-stamped measurements and events Energy metering
Connection	Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s)Voltage circuit: screw clamp terminals (top) 0.82-3.31 mm² cable(s) Control circuit: screw clamp terminals (top) 0.82-3.31 mm² cable(s) Communication: screw clamp terminals 0.33-3.31 mm² cable(s)
Customer Care Number	1800 103 0011
Depth	Panel: 73 mm Outside: 13 mm
Display Colour	Red
Display Type	7 segments LED
Frequency	Network: 60 Hz & 50 Hz
Height	96 mm
Installation Type	Indoor installation
Item Code	EM5400NG
Material	Polycarbonate
Mounting	Panel mounted & Flush mounted
Network	3P+N 2P+N 2P 3P 1P+N
Ports	Communication Protocol: Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
Power Consumption	Maximum: 6 VA at 277 V between phase and neutral 2 W at 277 V
Rated Voltage	40-300 V AC 45-65 Hz 40-300 V DC
Relative Humidity	5-95 % at 50 deg C
Sampling Rate	64 samples/cycle
Signal System	6 current 0-12 A (impedance 0.3 MOhm) 4 voltage (impedance 5 MOhm)
Signal Type	Green LED: activity Red LED: output signal 1-9999000 pulse/ k_h (kWh, kVAh, kVARh) Green LED: communication status
Standard	IEC 61010-1:ed. 3 UL 61010-1:ed. 3
Suitable For	Power monitoring
Torque	Current circuit: 0.9-1 Nm Philips No 2 screwdriver Voltage circuit: 0.9-1 Nm Philips No 2 screwdriver Control circuit: 0.9-1 Nm Philips No 2 screwdriver Communication: 0.9-1 Nm Philips No 2 screwdriver
Voltage	35-480 V AC 45-65 Hz between phases 35-277 V AC 45-65 Hz between phase and neutral 35-600 V AC 45-65 Hz between phases 35-347 V AC 45-65 Hz between phase and neutral 600…999000 V AC 45-65 Hz with external VT
Weight	600 g
Width	96 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Energy Meter
Dimensions LxWxH	9x7x2 cm
Weight	600 g

Show All Specifications

Product Details

Schneider Electric Digital Power and Energy Meter without RS-485, EM6400NG is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Energy Meters. All Schneider Electric Digital Power and Energy Meter without RS-485, EM6400NG are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric Digital Power and Energy Meter without RS-485, EM6400NG, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Energy Meters .
