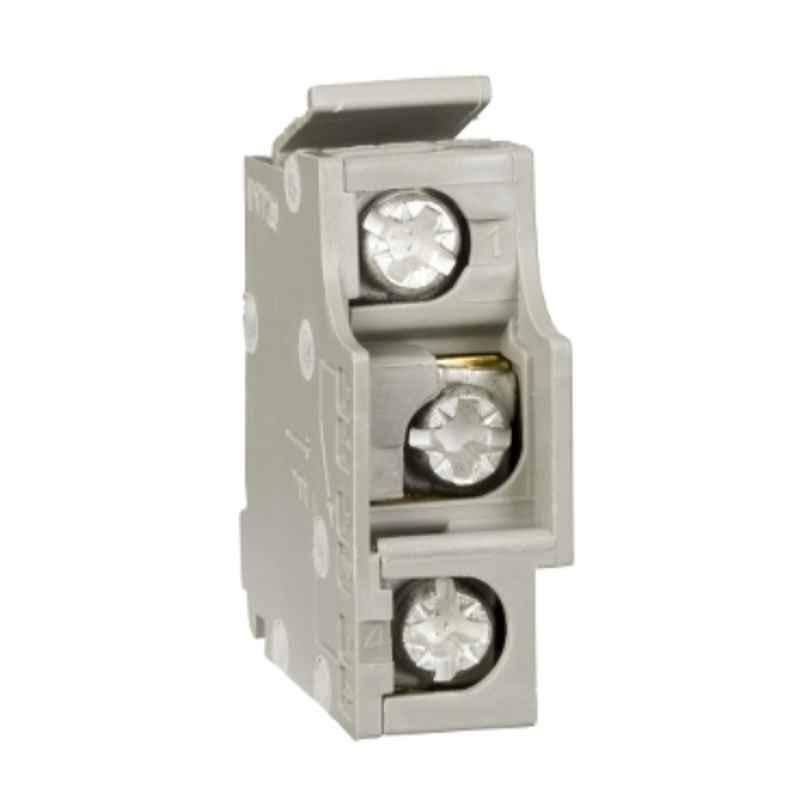

Schneider Electric 1mA 4 VDC 1 NO/NC Low Level Auxiliary Contact for Circuit Breaker, 29452

Hover to Zoom

Schneider Electric 1mA 4 VDC 1 NO/NC Low Level Auxiliary Contact for Circuit Breaker, 29452

Name: Schneider Electric 1mA 4 VDC 1 NO/NC Low Level Auxiliary Contact for Circuit Breaker, 29452
Brand: Schneider Electric
SKU: MSN8KLPO6DRN5V
Price: 1694 INR
Availability: OutOfStock

₹847 (Incl. of all taxes)

₹718 ₹129 GST

MRP ₹1,310 35% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

1 No/NC Contact Type.
1mA 4 V DC Low-level Contact.
Auxiliary for Circuit Breakers.

Product Specifications

Brand	Schneider Electric
Additional Details	Conventional Free Air Thermal Current: 5 Amp
Auxillary Contact	1 NO/NC
Compatibility	Compact Compact NS630b-1600, Compact Compact NS1600b-3200, Compact Compact INS, Compact Compact INV, Compact Compact NSX, Easy Pact Easy Pact CVS, Power Pact, Power Pact Multistandard & Compact Compact NSX DC
Current	1 mA
Item Code	29452
Mounting type	Clip-On
Rated Breaking Capacity	AC-12: 5 A at 24 V AC 50/60 Hz, AC-12: 5 A at 48 V AC 50/60 Hz, AC-12: 5 A at 110 V AC 50/60 Hz, AC-12: 5 A at 220/240 V AC 50/60 Hz, AC-12: 5 A at 380/440 V AC 50/60 Hz, AC-12: 5 A at 480 V AC 50/60 Hz, AC-15: 3 A at 24 V AC 50/60 Hz, AC-15: 3 A at 48 V AC 50/60 Hz, AC-15: 2.5 A at 110 V AC 50/60 Hz, AC-15: 2 A at 220/240 V AC 50/60 Hz, AC-15: 1.5 A at 380/440 V AC 50/60 Hz, AC-15: 1 A at 480 V AC 50/60 Hz, DC-12: 5 A at 24 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 0.3 A at 250 V DC, DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC & DC-14: 0.03 A at 250 V DC
Standards	IEC 60947-5-1
Type	Low Level
Voltage	4 V DC
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited Address-c 56, Mayapuri Industrial Area Phase II, New West Delhi, Delhi-110064 India
Packer Details	Schneider Electric India Private Limited Address-c 56, Mayapuri Industrial Area Phase II, New West Delhi, Delhi-110064 India
Common/Generic Name	Auxiliary Contact
Dimensions LxWxH	1x7x6 cm
Weight	0.024 kg

Show All Specifications

Product Details

The Schneider Electric 1mA 4 VDC 1 NO/NC Low Level Auxiliary Contact for Circuit Breaker, part number 29452, is a valuable addition to the Spares For Contactors category. This high-quality product, manufactured by Schneider Electric, is specifically designed for low-level applications. With its convenient clip-on mounting type, installation is a breeze. The auxiliary contact features 1 normally open (NO) and normally closed (NC) configurations, providing versatility for various circuit breaker setups.

Furthermore, this auxiliary contact boasts impressive specifications. It has a conventional free air thermal current rating of 5 Amp, ensuring reliable operation. This product complies with the IEC 60947-5-1 standard, guaranteeing its safety and performance.

In terms of rated breaking capacity, the Schneider Electric 1mA 4 VDC auxiliary contact delivers exceptional results. Whether it's AC-12 or AC-15 applications, this contact can handle up to 5 Amp at various voltages ranging from 24 V AC to 480 V AC. For DC applications, it can handle up to 5 Amp at 24 V DC and as low as 0.03 Amp at 250 V DC.

Overall, the Schneider Electric 1mA 4 VDC 1 NO/NC Low Level Auxiliary Contact is a reliable and efficient solution for your circuit breaker needs. Its high-quality construction, adherence to standards, and impressive breaking capacity make it an excellent addition to any electrical setup.
