Brand | |
Item Code | LRD365 |
Ambient Temperature | Operation: -20 to 60 deg C Storage: -60 to 70 deg C |
Class | Class 10A Conforming to IEC 60947-4-1 |
Notes | Images are for Reference Purpose Only |
Number of Contacts | 1 NO + 1 NC |
Range | TeSys LRD |
Rated Operational Voltage (Ue) | 690 V AC |
Relay Range | 48 to 65 A |
Standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40 |
Country of origin | India |
Manufacturer Details | Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, Delhi-110064 India |
Packer Details | Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, Delhi-110064 India |
Common/Generic Name | Thermal Overload Relay |
Dimensions LxWxH | 4x5x6 cm |
Weight | 0.59 kg |

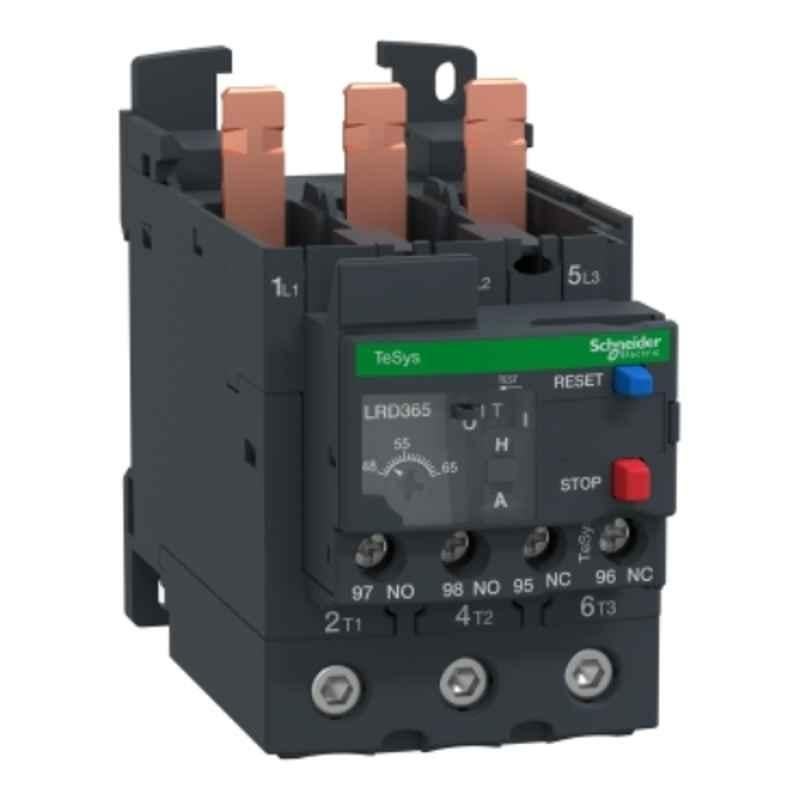

The Schneider Electric 48-65A Class 10A TeSys LRD Thermal Overload Relay, LRD365, is a reliable and efficient solution for protecting electrical motors against overloads and phase failures. As part of the TeSys LRD range, this thermal overload relay offers a rated operational voltage of 690 V AC. With its one normally open (NO) and one normally closed (NC) contact configuration, it provides flexibility in switching applications. The Class 10A conformity to IEC 60947-4-1 ensures accurate and timely protection for motors. This thermal overload relay operates in ambient temperatures ranging from -20 to 60 degrees Celsius. Built to strict industry standards such as EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, and IEC 60335-2-40, it guarantees durability and safety. Please note that the images provided are for reference purposes only.
