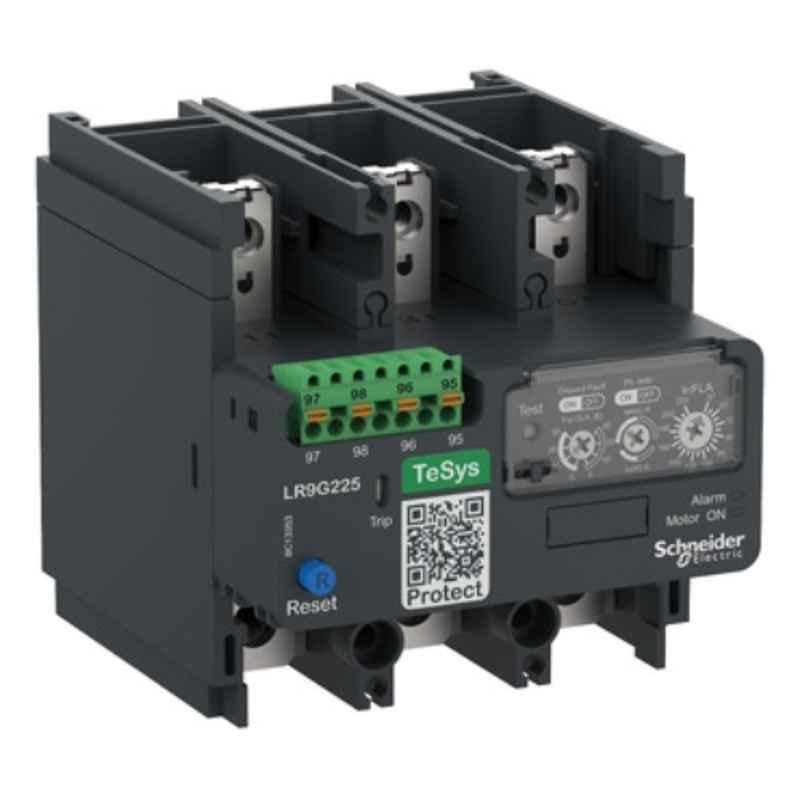

Schneider Electric TeSys Giga 57-225A Push-in Control Connection Thermal Overload Relay, LR9G225

AVAILABLE ON REQUEST

About This Product

Key Features

Switchable Protection Against Ground Fault and Phase Imbalance.
ON Status and Overload Alarm Signaling by LED.
Direct Mouting of Relay with Contactors Saving in Panel Space and Installation Time.

Product Specifications

Brand	Schneider Electric
Item Code	LR9G225
Number of Contacts	1NO + 1NC
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ & UL 60335-1
Additional Details	etwork type: AC,Reset: Automatic reset Manua,Mechanical durability: 7000 cycles
Ambient Temperature	Operation: -25 to 60 deg C Storage: -60 to 80 deg C
Class	Class 5E to 30E conforming to IEC 60947-4-1
Colour	Dark Grey
Current	5 A
Depth	126 mm
Frequency	50-60 Hz
Notes	Images are for Reference Purpose Only
Range	TeSys
Rated Voltage	1000 V AC
Relay Range	57 to 225 A
Thermal Protection Range	57-225 Amp
Weight	0.9 kg
Width	105 mm
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, Delhi-110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, Delhi-110064 India
Common/Generic Name	Thermal Overload Relay
Dimensions LxWxH	4x5x6 cm
Weight	0.59 kg

Show All Specifications

Product Details

The Schneider Electric 57-225A Class 5-30E TeSys Giga Electronic Thermal Overload Relay, LR9G225 is a highly reliable and efficient solution for thermal overload protection in electrical systems. With its 1 NO + 1 NC contacts, this relay is designed to ensure the safety and integrity of your circuits.

Part of the TeSys range, this relay operates within an ambient temperature range of -25 to 60 degrees Celsius, making it suitable for a variety of environments. It conforms to Class 5E to 30E standards set by the IEC 60947-4-1, ensuring that it meets the highest quality and safety standards.

This thermal overload relay is designed to withstand rigorous usage and is compliant with various standards such as EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, and UL 60335-1.

With a relay range of 57 to 225 A, this Schneider Electric product offers excellent performance and reliability in protecting your electrical circuits from overheating. Please note that the images provided are for reference purposes only. Choose Schneider Electric for top-quality thermal overload relays that ensure the safety of your electrical systems.
