What protection devices are supplied with the drive?

The combo includes an LC1D12M7 contactor, LRD16 overload relay and GV2ME10 circuit breaker.

Is a push button included?

Yes. The listed push button is XB4BA31.

What should I check before matching this drive to a motor?

Check the motor's rated power, supply requirements and control needs against the 1.5 kW ATV310 configuration.

What is the ATV310 drive rating?

The ATV310HU15N4E is rated at 1.5kW or 2HP.

What input voltage does the drive support?

It is designed for 380?460V three-phase supply.

What motor control methods are available?

It provides embedded UF and sensorless vector control.

Which protection components are included?

The combo includes a contactor, overload relay and circuit breaker.

Is this a variable speed drive?

Yes, it is a variable speed drive designed for motor speed control.

Home
Electricals
Industrial Switches & Controls

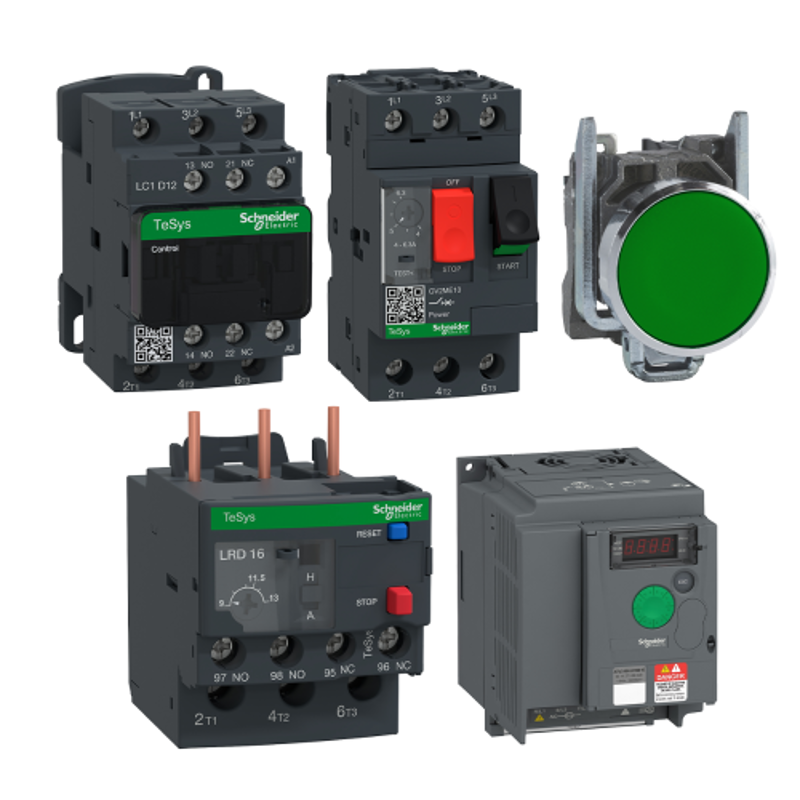

Schneider Electric ATV310HU15N4E 1.5kW Speed Drive Combo with Contactor (LC1D12M7), Overload Relay (LRD16), Circuit Breaker (GV2ME10) & Push Button (XB4BA31)

Schneider Electric ATV310HU15N4E 1.5kW Speed Drive Combo with Contactor (LC1D12M7), Overload Relay (LRD16), Circuit Breaker (GV2ME10) & Push Button (XB4BA31)

Hover to Zoom

Schneider Electric ATV310HU15N4E 1.5kW Speed Drive Combo with Contactor (LC1D12M7), Overload Relay (LRD16), Circuit Breaker (GV2ME10) & Push Button (XB4BA31)

Name: Schneider Electric ATV310HU15N4E 1.5kW Speed Drive Combo with Contactor (LC1D12M7), Overload Relay (LRD16), Circuit Breaker (GV2ME10) & Push Button (XB4BA31)
Brand: Schneider Electric
SKU: MSNQ946NQGJN50
Price: 28419 INR
Availability: InStock
Rating: 4.73 (11 reviews)

4.7

(11 Reviews)

₹28,419 (Incl. of all taxes)

₹24,083 + ₹4,336 GST

MRP ₹59,743 52% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹28,319

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Cash on Delivery

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

1.5kW Speed Drive- ATV310HU15N4E Provides Variable Speed Control for Compatible Motor Applications.
12A Contactor- LC1D12M7 Provides Switching Control for Suitable Electrical Loads.
Overload Relay- LRD16 Provides Overload Protection for Compatible Motor Circuits.
Motor Circuit Breaker- GV2ME10 Provides Circuit Protection for Suitable Motor Applications.
Push Button Control- XB4BA31 Provides Manual Operator Control within the Integrated Combo.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Certification	CSA, LROS, BV, UL listed & DNV
Colour	Push Button: Green
Composition	1 NO
Current	Push Button: 3 Amp Contactor: 12 Amp Overload Relay: 9-13 Amp Circuit Breaker: 6.3 Amp
Frequency	50-60 Hz
Model	Speed Drive: ATV310HU15N4E Contactor: LC1D12M7 Overload Relay: LRD16 Circuit Breaker: GV2ME10 Push Button: XB4BA31
Mounting Diameter	Push Button: 22 mm
Number of Poles	3 Pole
Package Contents	1 Pc Speed Drive, 1 Pc Contactor, 1 Pc Overload Relay, 1 Pc Circuit Breaker & 1 Pc Push Button
Power Consumption	Speed Drive: 1.5 kW Contactor: 3 kW Circuit Breaker: 2.2 kW
Protection Class	IP20, IP66, IP69, IP69K, IP67 & IK05
Rated Voltage	Push Button: 600 V Overload Relay: 690 V AC Circuit Breaker: 690 V AC
Standards	JIS C8201-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1 & JIS C8201-1
Voltage	Speed Drive: 380-460 V Contactor: 220 V AC
Country of origin	India
Manufacturer Details	Schneider Electric, C 56, Mayapuri Industrial Area Phase II, New West Delhi, Delhi, 110064, India
Packer Details	Prakash Tradelinks, Ground Floor, Door No. L-04, Kssidc Industrial Area, Ballari, Karnataka-583201, India
Common/Generic Name	Electrical Combo
Dimensions LxWxH	10x15x17 cm
Weight	1 kg

Show All Specifications

Product Details

The Schneider Electric ATV310HU15N4E 1.5kW Speed Drive Combo delivers reliable industrial control with a complete set of components, including a 3-pole contactor (LC1D12M7), overload relay (LRD16), circuit breaker (GV2ME10), and a 22 mm push button (XB4BA31). Designed for power demands up to 3 kW, this combo ensures optimal performance with current ratings suited for each parts 3A for the push button, 12A for the contactor, 9-13A for the overload relay, and 6.3A for the breaker. Compliant with international standards like IEC 60947 and UL 508, it guarantees safety and durability for diverse industrial applications.

Browse through the extensive list of Industrial Switches & Controls at Moglix. Shop online for other Schneider Electric Industrial Switches & Controls. available at Moglix in the lowest price range.
