Schneider Electric Hexa PM1130H 2W Class 0.5 Dual Source Energy Meter, METSEPM1130HCL05RD

Hover to Zoom

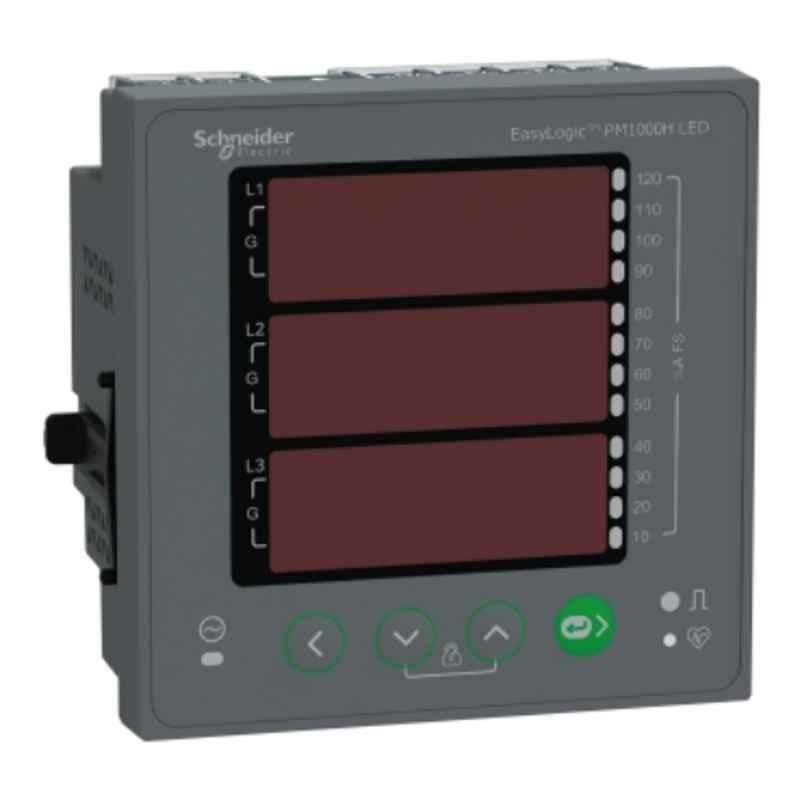

Schneider Electric Hexa PM1130H 2W Class 0.5 Dual Source Energy Meter, METSEPM1130HCL05RD

Name: Schneider Electric Hexa PM1130H 2W Class 0.5 Dual Source Energy Meter, METSEPM1130HCL05RD
Brand: Schneider Electric
SKU: MSNM9XYEX6ODKJ
Price: 9349 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹9,349 (Incl. of all taxes)

₹7,922 ₹1,427 GST

MRP ₹23,109 59% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Class 0.5 Accuracy Ensures Precise Energy Monitoring.
Supports Dual Source Metering for Better Energy Management.
Compact 2-wire Design Ideal for Space-constrained Installations.

Product Specifications

Brand	Schneider Electric
Current Rating	1-5 Amp
Accuracy Class	Class 2 reactive energy conforming to IEC 62053-23 Class 0.5 active energy conforming to IEC 62053-22
Certification	C-Tick CE Conforming to IEC 61010-1 CULus Conforming to UL 61010-1 CULus Conforming to CSA C22.2 No 61010-1
Class	0.5
Depth	Outside: 13 mm Panel: 52 mm
Display Colour	Red
Display Digit	12 digit(s) - 14.2 mm in height
Display Type	7 Segments LED
Frequency	50-60 Hz
Frequency Measurement Range	45-65 Hz
Height	96 mm
Installation Type	Indoor installation
Item Code	METSEPM1130HCL05RD
Life	Service: 7 Years
Material	Polycarbonate
Measurement Accuracy	Current +/- 0.5 % Voltage +/- 0.5 % Frequency +/- 0.05 % Power factor +/- 0.01 Reactive power +/- 2 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Active energy +/- 0.5 % Apparent energy +/- 0.5 % Harmonic distorsion (I THD & U THD) +/- 5 %
Measurement Current	5 to 6000 mA
Measurement Type	Current, Voltage, Frequency, Power Factor, Phase Angle, RPM, Peak Demand Power, Harmonic Distorsion (I THD & U THD), Active Power & Active Energy
Model	PM1130H
Mounting support	Framework
Mounting type	Flush-Mounted
Number of Outputs	1 relay
Number of Poles	3P+N 3P 2P 1P+N 2P+N
Operating Altitude	<= 2000 m
Operating Temperature	-10 to 60 deg C
Pollution Degree	2
Ports	RS485
Power Consumption	2 W at 240 V
Protection Class	IP51 & IP30
Range	EasyLogic
Rated Voltage	48-277 V
Relative Humidity	5-95 % at 50 deg C
Sampling Rate	32 Samples/Cycle
Series	Hexa
Standards	IEC 61010-1: ed. 3 UL 61010-1: ed. 3
Storage Temperature	-20 to 70 deg C
Terminal Type	Screw Type Terminals
Type	Dual source energy meter
Weight	300 g
Width	96 mm
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase Ii, New West Delhi, 110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase Ii, New West Delhi, 110064 India
Common/Generic Name	Energy Meter
Dimensions LxWxH	9.6x9.6x5.2 cm
Weight	0.3 kg

Show All Specifications

Product Details

Introducing the Schneider Electric Hexa PM1130H 2W Class 0.5 Dual Source Energy Meter, a top-of-the-line device perfect for monitoring and measuring energy consumption. As a part of our Energy Meters collection, this product showcases the finest craftsmanship and advanced technology that Schneider Electric is renowned for. With an impressive current rating of 1-5 Amp, it is capable of accurately measuring a range of parameters including current, voltage, frequency, power factor, phase angle, RPM, peak demand power, harmonic distortion (I THD \u0026 U THD), active power, and active energy. The current measurement accuracy of +/- 0.5% ensures precise readings. This Dual Source Energy Meter consists of 3P+N poles and weighs just 300 g, making it lightweight and easy to install with the flush-mounted mounting type. Stay in control of your energy consumption with the Schneider Electric Hexa PM1130H 2W Class 0.5 Dual Source Energy Meter.
