Schneider Electric EasyPact LC1E0601M5WB 3 Pole 60A at 440VAC TVS Contactor

Hover to Zoom

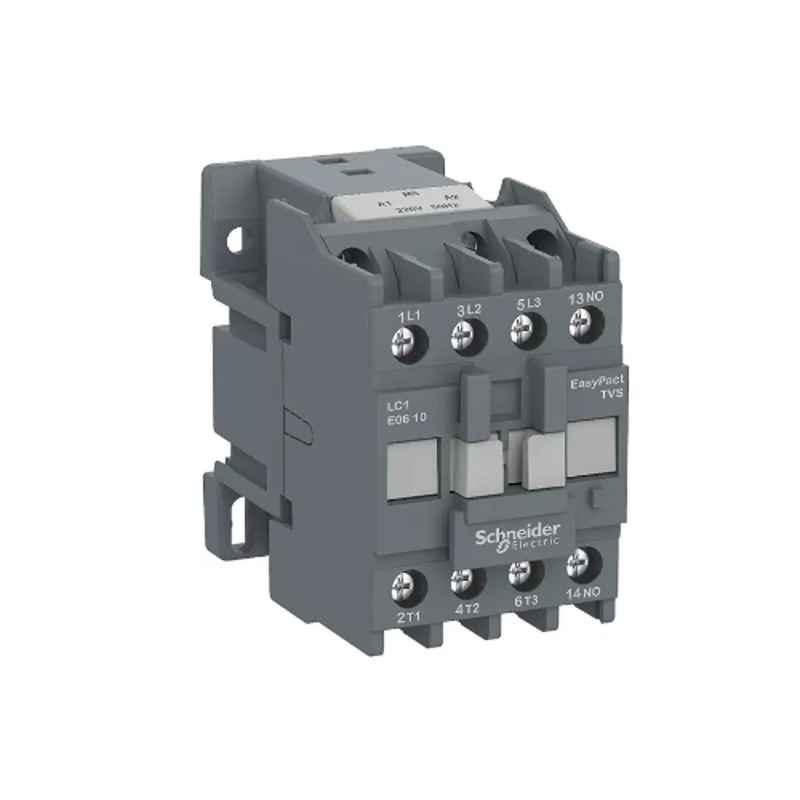

Schneider Electric EasyPact LC1E0601M5WB 3 Pole 60A at 440VAC TVS Contactor

Name: Schneider Electric EasyPact LC1E0601M5WB 3 Pole 60A at 440VAC TVS Contactor
Brand: Schneider Electric
SKU: MSNR50N3Q0P251
Price: 1258 INR
Availability: OutOfStock

₹1,258 (Incl. of all taxes)

₹1,066 ₹192 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Reliable 3-pole Contactor Rated for 60 Amp at 440V AC.
Compact Design for Easy Installation & Maintenance.
Designed for Heavy-duty Switching in Industrial Applications.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 1.4 MCycles AC-3, 0.15 MCycles AC-1 Average Impedance: 2.5 mOhm Ith 20 A 50 Hz Connection Terminal: Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Power circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid Fuse Rating: 12 A gG at 690 V coordination type 1 for power circuit, 10 A gG at 690 V for signalling circuit Heat Dissipation: 2-3 W for control circuit Operating Time: 12-22 ms on closing, 4-19 ms on opening Power Dissipation Per Pole: 0.09 W AC-3, 1 W AC-1 Switching Current: 5 mA for signalling circuit Tightening Torque: Power circuit 1.2 Nm, Control circuit 1.2 Nm Voltage Category: III
Application	Resistive load, Motor control
Breaking Capacity	48 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage	220 V AC 50 Hz
Depth	80 mm
Frequency	50/60 Hz
Height	74 mm
Mechanical Durability	10 M Cycles
Minimum Switching Voltage	17 V for signalling circuit
Model	LC1E0601M5WB
Motor Power	1.1 kW at 220-230 V AC 50/60 Hz, 2.2 kW at 380-400 V, 2.2 kW at 415 V, 2.2 kW at 440 V, 3 kW at 500 V, 3 kW at 660-690 V
Mounting type	DIN Rail & Plate
Notes	Image for reference purposes only
Number of Poles	3 Pole
Operating Altitude	3000 m without derating
Operating Rate	1800 cyc/h 60 deg C
Protection Class	IP20
Rated Insulation Voltage	690 V conforming to IEC 60947-4-1
Rated Making Capacity	60 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Series	EasyPact
Standards	IEC 60947-4-1, IEC 60947-5-1
Suitable For	Product Range Compatibility: EasyPact
Voltage	690 V AC
Weight	360 g
Width	45 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric EasyPact LC1E0601M5WB 3 Pole 60A at 440VAC TVS Contactor is a reliable and efficient solution for power circuit applications. This contactor, part of the Relays & Contactors category, is manufactured by the trusted brand Schneider Electric. With its 3 poles, it ensures reliable and secure connections in power circuits conforming to IEC 60947-4-1 standards.

With a rated making capacity of 60A at 440V AC, this contactor can handle a considerable amount of electrical load. It has a breaking capacity of 48A at 440V, providing effective protection against overloads and short circuits.

Weighing just 360g, this contactor is lightweight and easy to handle. It can be conveniently mounted using DIN Rail & Plate mounting type, making installation a breeze.

Please note that the image provided is for reference purposes only.

In terms of electrical durability, this contactor offers impressive performance. It has a durability of 1.4 MCycles AC-3 and 0.15 MCycles AC-1, ensuring long-lasting usage and reliability.

In summary, the Schneider Electric EasyPact LC1E0601M5WB 3 Pole 60A at 440VAC TVS Contactor is a high-quality and efficient choice for power circuit applications. Its durable construction, high breaking capacity, and easy installation make it a reliable solution for various electrical setups.
