Schneider Electric EasyPact LC1E0610M5WB 3 Pole 60A at 440VAC TVS Contactor

Hover to Zoom

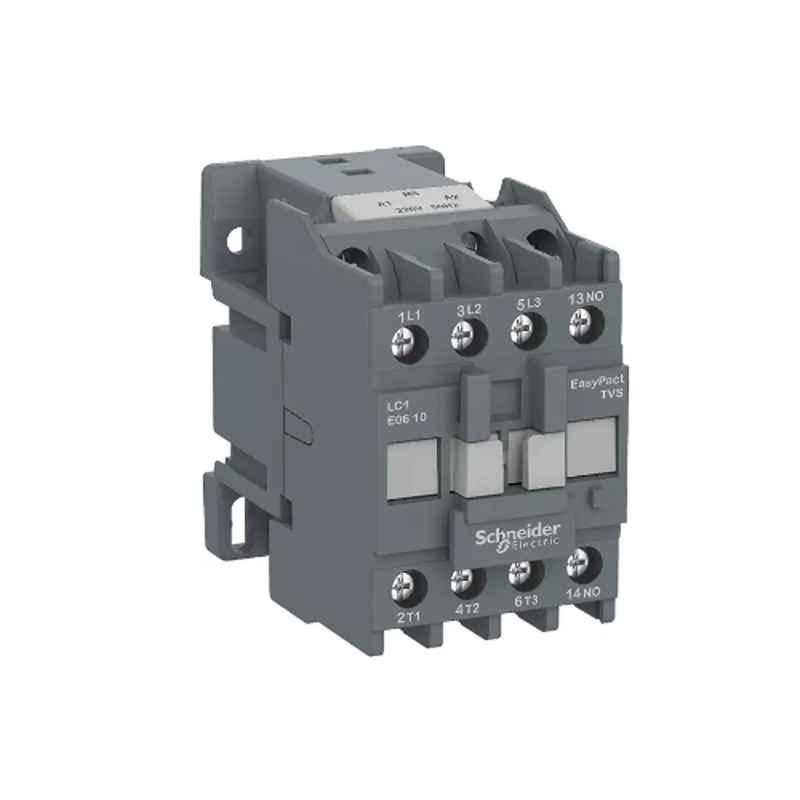

Schneider Electric EasyPact LC1E0610M5WB 3 Pole 60A at 440VAC TVS Contactor

Name: Schneider Electric EasyPact LC1E0610M5WB 3 Pole 60A at 440VAC TVS Contactor
Brand: Schneider Electric
SKU: MSN153V42GXJK3
Price: 1112 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹1,112 (Incl. of all taxes)

₹943 ₹169 GST

MRP ₹1,260 11% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Quick DIN Rail Installation.
Strong 60a Switching at 440V.
Compact Contactor Ideal for Small Motors.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 1.4 MCycles AC-3, 0.15 MCycles AC-1 Average Impedance: 2.5 mOhm Ith 20 A 50 Hz Connection Terminal: Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Power circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid Fuse Rating: 12 A gG at 690 V coordination type 1 for power circuit, 10 A gG at 690 V for signalling circuit Heat Dissipation: 2-3 W for control circuit Operating Time: 12-22 ms on closing, 4-19 ms on opening Power Dissipation Per Pole: 0.09 W AC-3, 1 W AC-1 Switching Current: 5 mA for signalling circuit Tightening Torque: Power circuit 1.2 Nm, Control circuit 1.2 Nm Voltage Category: III
Application	Resistive load, Motor control
Breaking Capacity	48 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage	220 V AC 50 Hz
Depth	80 mm
Frequency	50/60 Hz
Height	74 mm
Mechanical Durability	10 M Cycles
Minimum Switching Voltage	17 V for signalling circuit
Model	LC1E0610M5WB
Motor Power	1.1 kW at 220-230 V AC 50/60 Hz, 2.2 kW at 380-400 V, 2.2 kW at 415 V, 2.2 kW at 440 V, 3 kW at 500 V, 3 kW at 660-690 V
Mounting type	DIN Rail & Plate
Notes	Image for reference purposes only
Number of Poles	3 Pole
Operating Altitude	3000 m without derating
Operating Rate	1800 cyc/h 60 deg C
Protection Class	IP20
Rated Insulation Voltage	690 V conforming to IEC 60947-4-1
Rated Making Capacity	60 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Series	EasyPact
Standards	IEC 60947-5-1, IEC 60947-4-1
Suitable For	Product Range Compatibility: EasyPact
Voltage	690 V AC
Weight	360 g
Width	45 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric EasyPact LC1E0610M5WB 3 Pole 60A at 440VAC TVS Contactor is a reliable and efficient solution for power circuit control. With its 3 pole configuration, this contactor ensures optimal performance in electrical applications. It has a rated making capacity of 60 A at 440 V AC, complying with the IEC 60947-4-1 standards.

Weighing only 360 g, this contactor is lightweight and easy to install. It can be conveniently mounted on both DIN rail and plate, offering flexibility in various installation settings. The breaking capacity of this contactor is 48 A at 440 V, ensuring safe operation and compliance with IEC 60947 guidelines.

Please note that the image provided is for reference purposes only, and the actual product may vary slightly in appearance. Additionally, this contactor has impressive electrical durability with 1.4 MCycles AC-3 and 0.15 MCycles AC-1, enhancing its longevity and reliability.

In summary, the Schneider Electric EasyPact LC1E0610M5WB 3 Pole 60A at 440VAC TVS Contactor is a high-quality product that offers excellent performance in power circuit control. With its robust features and adherence to international standards, this contactor is a trusted choice for professionals in the electrical industry.
