Schneider Electric EasyPact LC1E0610N5WB 3 Pole 60A at 440VAC TVS Contactor

Name: Schneider Electric EasyPact LC1E0610N5WB 3 Pole 60A at 440VAC TVS Contactor
Brand: Schneider Electric
SKU: MSNE9J8231XR9D
Price: 1258 INR
Availability: OutOfStock

₹1,258 (Incl. of all taxes)

₹1,066 ₹192 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Handles Up to 60 Amp Loads.
Wide Coil Voltage Compatibility.
Durable Industrial-grade Contactor.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 1.4 MCycles AC-3, 0.15 MCycles AC-1 Average Impedance: 2.5 mOhm Ith 20 A 50 Hz Connection Terminal: Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Power circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid Fuse Rating: 12 A gG at 690 V coordination type 1 for power circuit, 10 A gG at 690 V for signalling circuit Heat Dissipation: 2-3 W for control circuit Operating Time: 12-22 ms on closing, 4-19 ms on opening Power Dissipation Per Pole: 0.09 W AC-3, 1 W AC-1 Switching Current: 5 mA for signalling circuit Tightening Torque: Power circuit 1.2 Nm, Control circuit 1.2 Nm Voltage Category: III
Application	Resistive load, Motor control
Breaking Capacity	48 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage	415 V AC 50 Hz
Depth	80 mm
Frequency	50/60 Hz
Height	74 mm
Mechanical Durability	10 M Cycles
Minimum Switching Voltage	17 V for signalling circuit
Model	LC1E0610N5WB
Motor Power	1.1 kW at 220-230 V AC 50/60 Hz, 2.2 kW at 380-400 V, 2.2 kW at 415 V, 2.2 kW at 440 V, 3 kW at 500 V, 3 kW at 660-690 V
Mounting type	DIN Rail & Plate

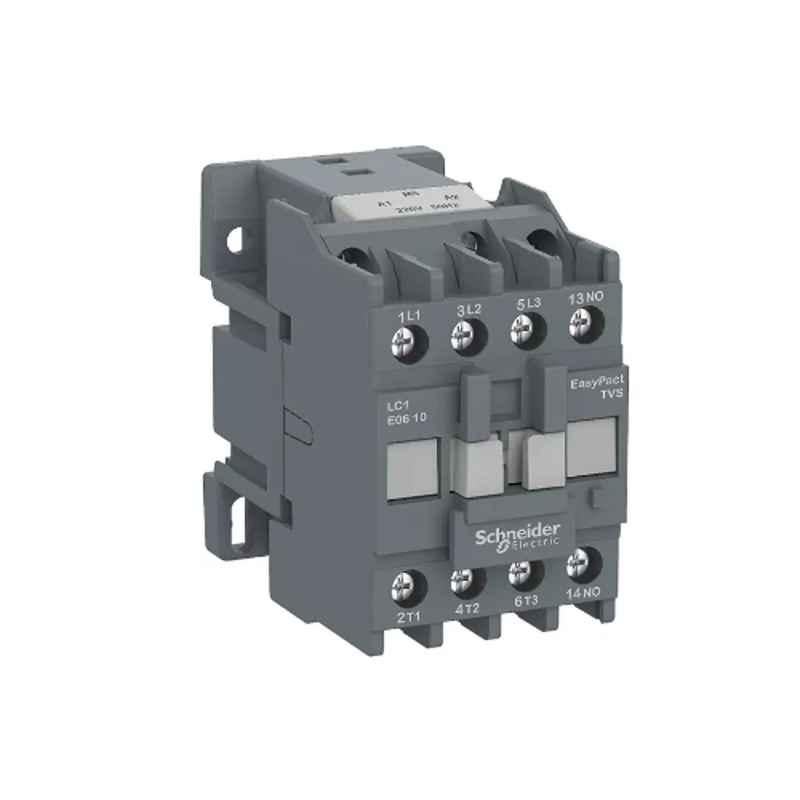

Notes	Image for reference purposes only
Number of Poles	3 Pole
Operating Altitude	3000 m without derating
Operating Rate	1800 cyc/h 60 deg C
Protection Class	IP20
Rated Insulation Voltage	690 V conforming to IEC 60947-4-1
Rated Making Capacity	60 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Series	EasyPact
Standards	IEC 60947-5-1, IEC 60947-4-1
Suitable For	Product Range Compatibility: EasyPact
Voltage	690 V AC
Weight	360 g
Width	45 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric EasyPact LC1E0610N5WB 3 Pole 60A at 440VAC TVS Contactor is a reliable and high-performance product designed for the category of Relays & Contactors. This contactor, with the brand name Schneider Electric, is specifically created with 3 poles, ensuring efficient power distribution and control. With a rated making capacity of 60 A at 440 VAC for power circuits conforming to IEC 60947-4-1, it guarantees safe and reliable operations.

Weighing only 360 g, this contactor is lightweight and easy to handle, making installation effortless. It features a versatile mounting type that supports both DIN Rail and Plate options, providing flexibility and convenience during installation. In terms of breaking capacity, it offers 48 A at 440 V for power circuits conforming to IEC 60947, ensuring optimal performance and protection.

Please note that the image provided is for reference purposes only, allowing you to visualize the product. Furthermore, this contactor has excellent electrical durability, with 1.4 million cycles AC-3 and 0.15 million cycles AC-1. This ensures a long lifespan and reliable performance, making it an ideal choice for various electrical applications.

Overall, the Schneider Electric EasyPact LC1E0610N5WB 3 Pole 60A at 440VAC TVS Contactor combines superior performance, durability, and convenient installation, making it a top choice for any electrical setup.
