Schneider Electric EasyPact LC1E12008M5WB 4 Pole CTR 25AAC1 220V 50Hz Wide Range TVS Contactor

Hover to Zoom

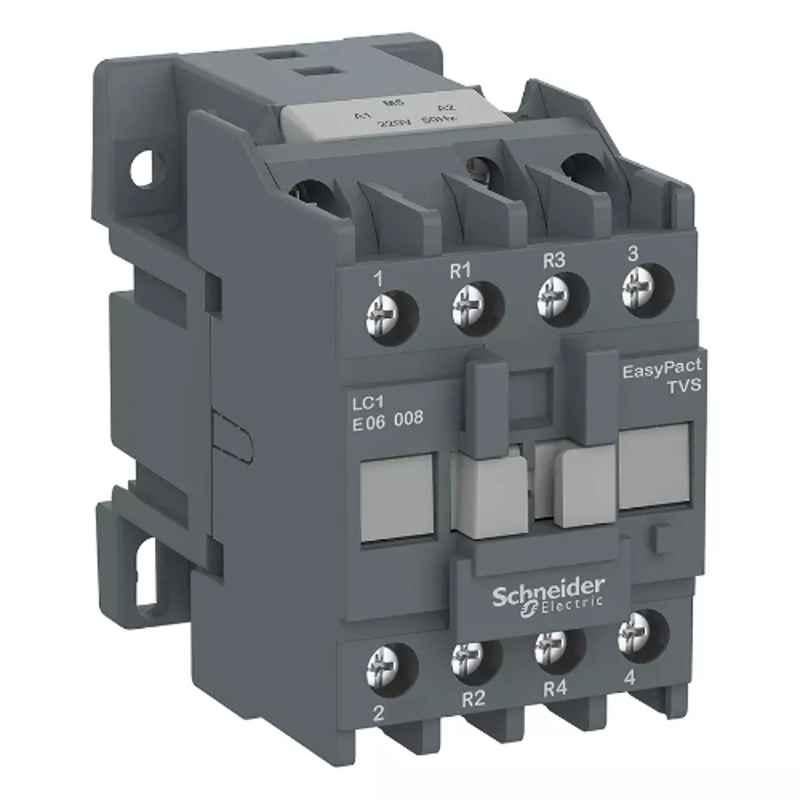

Schneider Electric EasyPact LC1E12008M5WB 4 Pole CTR 25AAC1 220V 50Hz Wide Range TVS Contactor

Name: Schneider Electric EasyPact LC1E12008M5WB 4 Pole CTR 25AAC1 220V 50Hz Wide Range TVS Contactor
Brand: Schneider Electric
SKU: MSNQ94PDX3XEK0
Price: 2222 INR
Availability: OutOfStock

₹2,222 (Incl. of all taxes)

₹1,884 ₹338 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Rated for 32 Amp at 415 V AC (AC-1 Utilization).
Coil Voltage of 220 V AC at 50 Hz for Reliable Control.
Includes 2 Normally Open (NO) & 2 Normally Closed (NC) Contacts.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 0.3 MCycles AC-1 Average Impedance: 2.5 mOhm Ith 25 A 50 Hz Coil Technology: DIN rail, Plate Fuse Rating: 25 A gG at 690 V coordination type 1 for power circuit Heat Dissipation: 2-3 W for control circuit Operating Time: 12-22 ms on closing, 4-19 ms on opening Power Dissipation Per Pole: 2.6 W AC-1 Tightening Torque: Power circuit 1.2 Nm, Control circuit 1.2 Nm Voltage Category: III
Application	Resistive load
Breaking Capacity	96 A at 440 V for power circuit conforming to IEC 60947
Depth	80 mm
Frequency	50/60 Hz
Height	74 mm
Mechanical Durability	10 M Cycles
Model	LC1E12008M5WB
Motor Power	3000 m without derating
Notes	Image for reference purposes only
Number of Poles	4 Pole
Operating Rate	1800 cyc/h 60 deg C
Protection Class	IP20
Rated Insulation Voltage	690 V conforming to IEC 60947-4-1
Series	EasyPact
Standards	IEC 60947-5-1, IEC 60947-4-1
Voltage	690 V AC
Weight	0.34 kg
Width	45 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

Introducing the Schneider Electric EasyPact LC1E12008M5WB 4 Pole CTR 25AAC1 220V 50Hz Wide Range TVS Contactor, a reliable and efficient solution for all your electrical needs.

This high-quality contactor falls under the category of Relays & Contactors, designed to simplify and optimize your electrical systems. With the trusted brand name, Schneider Electric, you can be confident in the product's performance and longevity.

Equipped with four poles, this contactor offers excellent versatility and flexibility in various applications. Its lightweight design, weighing only 0.34 kg, ensures easy installation and maneuverability.

It boasts a remarkable breaking capacity of 96 A at 440 V for power circuit, conforming to IEC 60947 standards. This ensures reliable operation and protection for your electrical system, preventing any potential damage or hazards.

Please note that the image provided is for reference purposes only, allowing you to visualize the product in use.

Additionally, this contactor offers a durable solution with an electrical durability of 0.3 MCycles AC-1. This ensures long-lasting performance and a reliable electrical connection.

With a width of 45 mm, this contactor can easily fit into various electrical panels and enclosures. Its compact design allows for efficient use of space and installation.

The model number of this contactor is LC1E12008M5WB, enabling easy identification and compatibility with other Schneider Electric products.

In summary, the Schneider Electric EasyPact LC1E12008M5WB 4 Pole CTR 25AAC1 220V 50Hz Wide Range TVS Contactor is a premium contactor that delivers reliable and efficient performance. With its impressive breaking capacity, lightweight design, and durable construction, it is the ideal choice for your electrical system.
