Schneider Electric EasyPact LC1E1210N5WB 3 Pole 120A at 440VAC TVS Contactor

Name: Schneider Electric EasyPact LC1E1210N5WB 3 Pole 120A at 440VAC TVS Contactor
Brand: Schneider Electric
SKU: MSNE9J823M409D
Price: 1474 INR
Availability: OutOfStock

₹1,474 (Incl. of all taxes)

₹1,250 ₹224 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Handles 120 Amp at 440 V AC.
Wide Range 3-pole Design.
415 V Coil Ensures Reliability.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 1.4 MCycles AC-3, 0.3 MCycles AC-1 Average Impedance: 2.5 mOhm Ith 25 A 50 Hz Connection Terminal: Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Power circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid Fuse Rating: 25 A gG at 690 V coordination type 1 for power circuit, 10 A gG at 690 V for signalling circuit Heat Dissipation: 2-3 W for control circuit Operating Time: 12-22 ms on closing, 4-19 ms on opening Power Dissipation Per Pole: 0.36 W AC-3, 1.6 W AC-1 Switching Current: 5 mA for signalling circuit Tightening Torque: Power circuit 1.2 Nm, Control circuit 1.2 Nm Voltage Category: III
Application	Resistive load, Motor control
Breaking Capacity	96 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage	415 V AC 50 Hz
Depth	80 mm
Frequency	50/60 Hz
Height	74 mm
Mechanical Durability	10 M Cycles
Minimum Switching Voltage	17 V for signalling circuit
Model	LC1E1210N5WB
Motor Power	3 kW at 220-230 V AC 50/60 Hz, 5.5 kW at 380-400 V, 5.5 kW at 415 V, 5.5 kW at 440 V, 7.5 kW at 500 V, 7.5 kW at 660-690 V
Mounting type	DIN Rail & Plate
Notes	Image for reference purposes only
Number of Poles	3 Pole
Operating Altitude	3000 m without derating
Operating Rate	1800 cyc/h 60 deg C
Protection Class	IP20
Rated Insulation Voltage	690 V conforming to IEC 60947-4-1
Rated Making Capacity	120 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Series	EasyPact
Standards	IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1
Suitable For	Product Range Compatibility: EasyPact
Voltage	690 V AC
Weight	360 g
Width	45 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric EasyPact LC1E1210N5WB 3 Pole 120A at 440VAC TVS Contactor is a reliable and efficient solution for power circuit control. This contactor, designed by Schneider Electric, falls under the category of Relays & Contactors. With its 3 poles, it provides a secure and stable connection for power circuits conforming to IEC 60947-4-1 standards.

Weighing just 360g, this contactor is lightweight and easy to install. It can be mounted using DIN Rail & Plate, ensuring a convenient and secure placement. The EasyPact LC1E1210N5WB offers a high breaking capacity of 96A at 440V, meeting the requirements of power circuits conforming to IEC 60947 standards.

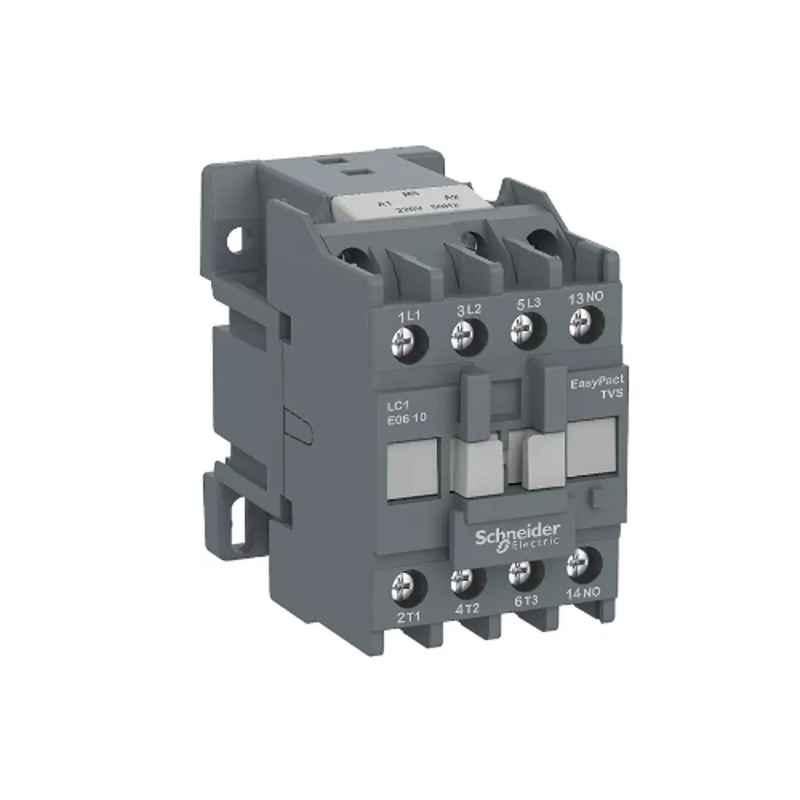

Please note that the image provided is for reference purposes only, allowing you to have an idea of the product's appearance.

In addition to its primary features, this Schneider Electric contactor boasts impressive electrical durability. It can withstand 1.4 MCycles AC-3 and 0.3 MCycles AC-1, making it a reliable choice for various applications.

In summary, the Schneider Electric EasyPact LC1E1210N5WB 3 Pole 120A contactor is a high-quality product in the Relays & Contactors category. Its outstanding features include 3 poles, a rated making capacity of 120A at 440V AC, a lightweight design of 360g, and easy installation with DIN Rail & Plate mounting. With a breaking capacity of 96A at 440V, this contactor conforms to IEC 60947 standards. Please note that the image provided is for reference purposes only.
