Schneider Electric EasyPact LC1E1801N5WB 3 Pole 180A at 440VAC TVS Contactor

Name: Schneider Electric EasyPact LC1E1801N5WB 3 Pole 180A at 440VAC TVS Contactor
Brand: Schneider Electric
SKU: MSN75DQ1R3ED92
Price: 1698 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹1,698 (Incl. of all taxes)

₹1,439 + ₹259 GST

AVAILABLE ON REQUEST

Moglix Insights

Schneider Electric is one of the top brand in relays & contactors, preferred by 21% of the users

9% of the users prefer relays & contactors in ₹1000-2000 price range

About This Product

Key Features

180a, 3-pole TVs.
440V AC Operation.
High Load Switching.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 0.3 MCycles AC-1, 1.2 MCycles AC-3 Average Impedance: 2.5 mOhm Ith 32 A 50 Hz Connection Terminal: Power circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid, Power circuit screw clamp terminals 1 1.5-6 mm²-cable stiffness solid, Power circuit screw clamp terminals 2 1.5-6 mm²-cable stiffness solid Fuse Rating: 35 A gG at 690 V coordination type 1 for power circuit, 10 A gG at 690 V for signalling circuit Heat Dissipation: 2-3 W for control circuit Operating Time: 12-22 ms on closing, 4-19 ms on opening Power Dissipation Per Pole: 0.81 W AC-3, 2.6 W AC-1 Switching Current: 5 mA for signalling circuit Tightening Torque: Power circuit 1.2 Nm, Control circuit 1.2 Nm Voltage Category: III
Application	Resistive load, Motor control
Breaking Capacity	144 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage	415 V AC 50 Hz
Depth	80 mm
Frequency	50/60 Hz
Height	74 mm
Mechanical Durability	10 M Cycles
Minimum Switching Voltage	17 V for signalling circuit
Model	LC1E1801N5WB
Motor Power	4 kW at 220-230 V AC 50/60 Hz, 7.5 kW at 380-400 V, 9 kW at 415 V, 9 kW at 440 V, 10 kW at 500 V, 10 kW at 660-690 V
Mounting type	DIN Rail & Plate

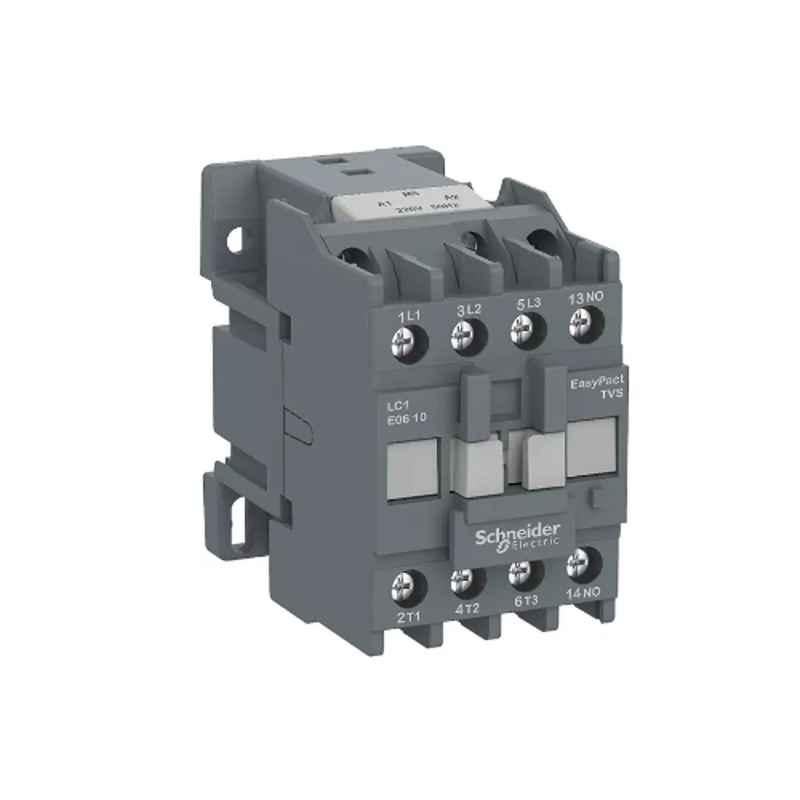

Notes	Image for reference purposes only
Number of Poles	3 Pole
Operating Altitude	3000 m without derating
Operating Rate	1800 cyc/h 60 deg C
Protection Class	IP20
Rated Insulation Voltage	690 V conforming to IEC 60947-4-1
Rated Making Capacity	180 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Series	EasyPact
Standards	IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1
Suitable For	Product Range Compatibility: EasyPact
Voltage	690 V AC
Weight	360 g
Width	45 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

Introducing the Schneider Electric EasyPact LC1E1801N5WB 3 Pole 180A at 440VAC TVS Contactor, a reliable and efficient solution for power circuits. Part of the extensive range of Relays & Contactors by Schneider Electric, this contactor is designed to meet the high demands of industrial applications.

With its 3-pole configuration, this contactor is capable of handling power circuits up to 180A at 440VAC, conforming to IEC 60947-4-1 standards. It boasts a robust construction and a weight of just 360g, making it suitable for various installation scenarios. The contactor can be easily mounted on DIN Rail or Plate, providing flexibility in installation.

When it comes to breaking capacity, this contactor excels with a rating of 144A at 440V, complying with IEC 60947 requirements. Please note that the image provided is for reference purposes only.

In addition to its impressive specifications, this Schneider Electric contactor offers excellent electrical durability. It can withstand up to 0.3 MCycles AC-1 and 1.2 MCycles AC-3, ensuring long-lasting performance and reliability.

For a dependable and efficient contactor solution, choose the Schneider Electric EasyPact LC1E1801N5WB. With its superior design and performance, it is the ideal choice for various industrial and commercial applications.
