Schneider Electric EasyPact LC1E2510B7 3 Poles AC-3 440V 25A 24VAC coil TVS Contactor

Name: Schneider Electric EasyPact LC1E2510B7 3 Poles AC-3 440V 25A 24VAC coil TVS Contactor
Brand: Schneider Electric
SKU: MSN457M28Q4N9J
Price: 2318 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹2,318 (Incl. of all taxes)

₹1,965 ₹353 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Handles Up to 25a Reliably.
Operates at 24vac Coil Voltage.
Compact & Efficient 3-pole Design.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 350000 Cycles AC-1, 300000 Cycles AC-3 Average Impedance: 2.5 mOhm Ith 36 A 50 Hz Connection Terminal: Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness flexible without cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid without cable end, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid without cable end, Power circuit screw clamp terminals 1 1.5-6 mm²-cable stiffness solid without cable end, Power circuit screw clamp terminals 2 1.5-6 mm²-cable stiffness solid without cable end, Power circuit screw clamp terminals 1 1-6 mm²-cable stiffness flexible with cable end, Power circuit screw clamp terminals 2 1-4 mm²-cable stiffness flexible with cable end Fuse Rating: 10 A gG at 690 V coordination type 1 for control circuit Conforming to IEC 60947-5-1, 40 A gG at 690 V coordination type 1 for power circuit Heat Dissipation: 2-3 W for control circuit Operating Time: 12-22 ms on closing, 4-19 ms on opening Power Dissipation Per Pole: 1.6 W AC-3, 3.2 W AC-1 Switching Current: 5 mA for control circuit Tightening Torque: Control circuit 1.2 Nm, Power circuit 1.5 Nm Voltage Category: III
Application	Resistive load, Motor control
Breaking Capacity	200 A at 440 V for power circuit conforming to IEC 60947
Depth	85 mm
Frequency	50/60 Hz
Height	74 mm
Mechanical Durability	10000000 Cycles
Minimum Switching Voltage	17 V for control circuit
Model	LC1E2510B7
Motor Power	5.5 kW at 220-230 V AC 50/60 Hz, 11 kW at 380-400 V, 11 kW at 415 V, 11 kW at 440 V, 15 kW at 500 V, 15 kW at 660-690 V
Mounting type	DIN Rail & Plate
Notes	Image for reference purposes only
Number of Poles	3 Pole
Operating Altitude	3000 m without derating
Operating Rate	1800 cyc/h 60 deg C
Protection Class	IP2X
Rated Insulation Voltage	690 V conforming to IEC 60947-4-1
Rated Making Capacity	250 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Series	EasyPact
Standards	IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1
Suitable For	Product Range Compatibility: EasyPact
Voltage	690 V AC
Weight	360 g
Width	45 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric EasyPact LC1E2510B7 is a high-quality TVS contactor designed for use in power circuits. With 3 poles and a rated making capacity of 250 A at 440 V AC, this contactor is built to withstand the demands of various electrical applications. It features a 24VAC coil, ensuring efficient operation and reliable performance.

As part of the Relays & Contactors category, this Schneider Electric product is synonymous with durability and reliability. The brand is widely recognized for its innovative solutions in the electrical industry.

Weighing just 360 g, the EasyPact LC1E2510B7 is lightweight and easy to install. It is designed for DIN Rail & Plate mounting, making it suitable for a range of applications.

With a breaking capacity of 200 A at 440 V, this contactor conforms to IEC 60947 standards for power circuits. Its electrical durability is also impressive, with 350,000 cycles in AC-1 mode and 300,000 cycles in AC-3 mode.

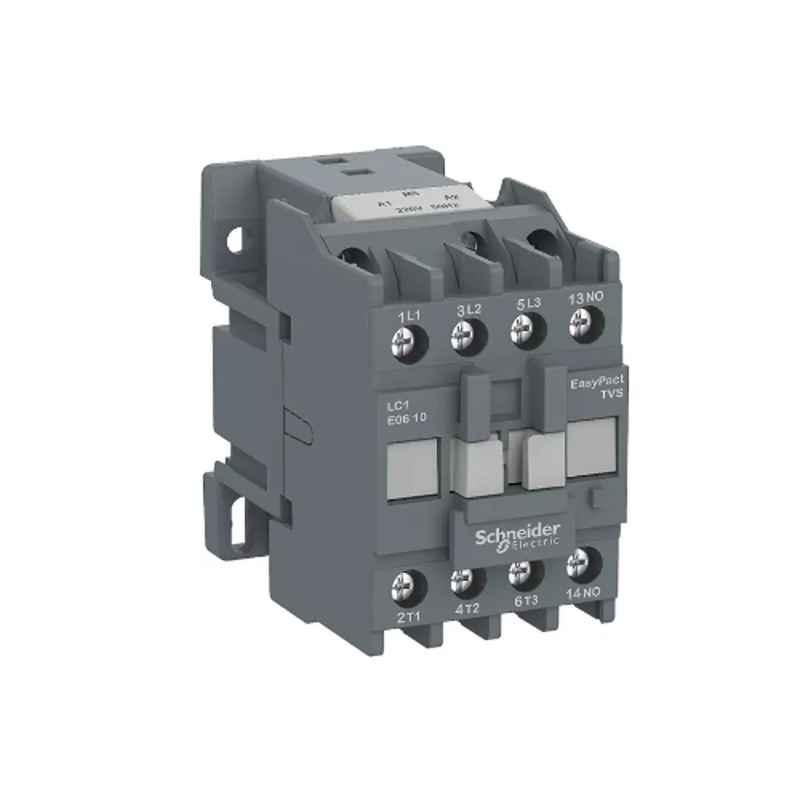

Please note that the product image provided is for reference purposes only. For further information and details, please refer to the product specifications provided by Schneider Electric.
