Schneider Electric EasyPact LC1E40B01B7 3 Pole AC-3 440V 40A 24VAC Coil TVS Contactor

Name: Schneider Electric EasyPact LC1E40B01B7 3 Pole AC-3 440V 40A 24VAC Coil TVS Contactor
Brand: Schneider Electric
SKU: MSN39YR4YEQ25Q
Price: 6123 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹6,123 (Incl. of all taxes)

₹5,189 ₹934 GST

AVAILABLE ON REQUEST

About This Product

Key Features

40a Load Handling.
24vac Coil Voltage.
Reliable Motor Control.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 0.35 MCycles AC-1, 0.8 MCycles AC-3 Average Impedance: 2.5 mOhm Ith 50 A 50 Hz Connection Pitch: Control Circuit 1.2 Nm & Power Circuit 2.1 Nm Fuse Rating: 10 A gG at 690 V coordination type 1 for control circuit Conforming to IEC 60947-5-1, 63 A gG at 690 V coordination type 1 for power circuit Heat Dissipation: 2-3 W for control circuit Operating Time: 12-22 ms on closing, 4-19 ms on opening Power Dissipation Per Pole: 2.9 W AC-3, 5 W AC-1 Switching Current: 5 mA for control circuit Voltage Category: III
Application	Motor control, Resistive load
Breaking Capacity	320 A at 440 V for power circuit conforming to IEC 60947
Depth	86 mm
Frequency	50/60 Hz
Height	84 mm
Insulation Resistance	10 Mohm
Mechanical Durability	8000000 Cycles
Minimum Switching Voltage	17 V for control circuit
Model	LC1E40B01B7
Motor Power	18.5 kW at 500 V, 18.5 kW at 660-690 V, 9 kW at 220-230 V AC 50/60 Hz, 18.5 kW at 380-400 V, 18.5 kW at 415 V, 18.5 kW at 440 V
Mounting type	DIN Rail & Plate
Notes	Image for reference purposes only
Number of Contacts	1 NC
Number of Poles	3 Pole
Operating Altitude	3000 m without derating
Operating Rate	1800 cyc/h 60 deg C
Protection Class	IP2X
Rated Insulation Voltage	690 V conforming to IEC 60947-4-1
Series	EasyPact
Standards	IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1
Voltage	690 V AC
Weight	0.45 kg
Width	56 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

Introducing the Schneider Electric EasyPact LC1E40B01B7 3 Pole AC-3 440V 40A 24VAC Coil TVS Contactor, a reliable and robust solution for your electrical control needs. This high-quality contactor is specifically designed for use in the Relays & Contactors category.

Featuring a 3 Pole configuration, this Schneider Electric contactor ensures excellent performance and reliability. With a weight of only 0.45 kg, it is lightweight and easy to install. The contactor can be conveniently mounted on DIN Rail & Plate, allowing for flexible installation options.

Equipped with 1 NC (Normally Closed) contact, this contactor is suitable for various applications. It offers a breaking capacity of 320 A at 440 V for power circuits, conforming to the IEC 60947 standard. This ensures safe and efficient operation in demanding electrical systems.

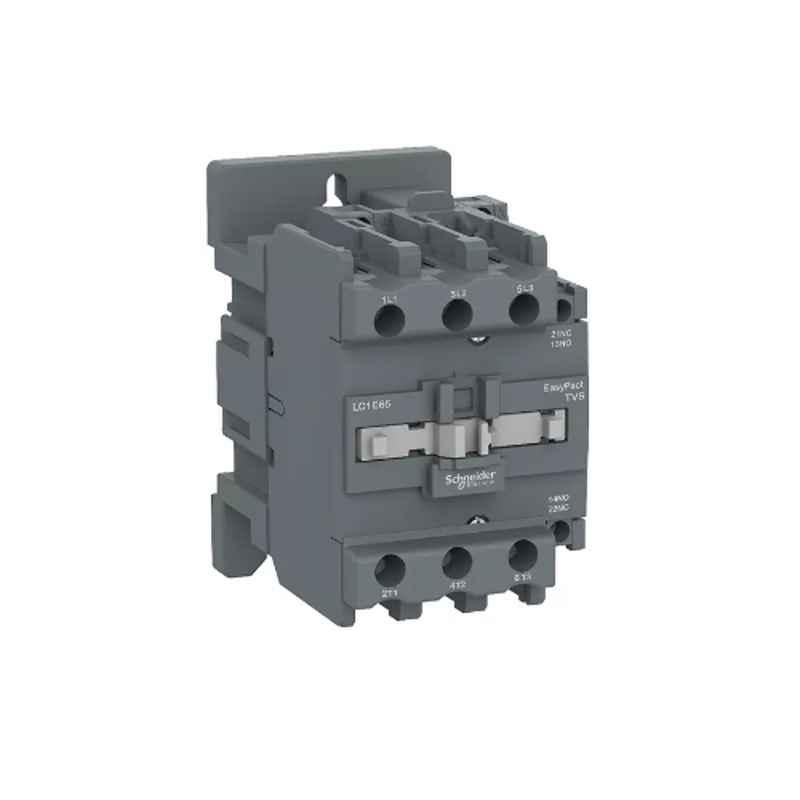

Please note that the image provided is for reference purposes only. The actual product may differ in appearance.

With additional details such as electrical durability of 0.35 MCycles AC-1 and 0.8 MCycles AC-3, this Schneider Electric contactor is built to last. It offers reliable performance over an extended lifespan, making it a cost-effective choice for your electrical control needs.

In summary, the Schneider Electric EasyPact LC1E40B01B7 3 Pole AC-3 440V 40A 24VAC Coil TVS Contactor is a high-quality and durable solution for your Relays & Contactors needs. With its easy installation, excellent breaking capacity, and reliable operation, it is an ideal choice for a range of applications. Trust Schneider Electric, a trusted brand in the industry, for your electrical control requirements.
